3M Products & Supplies

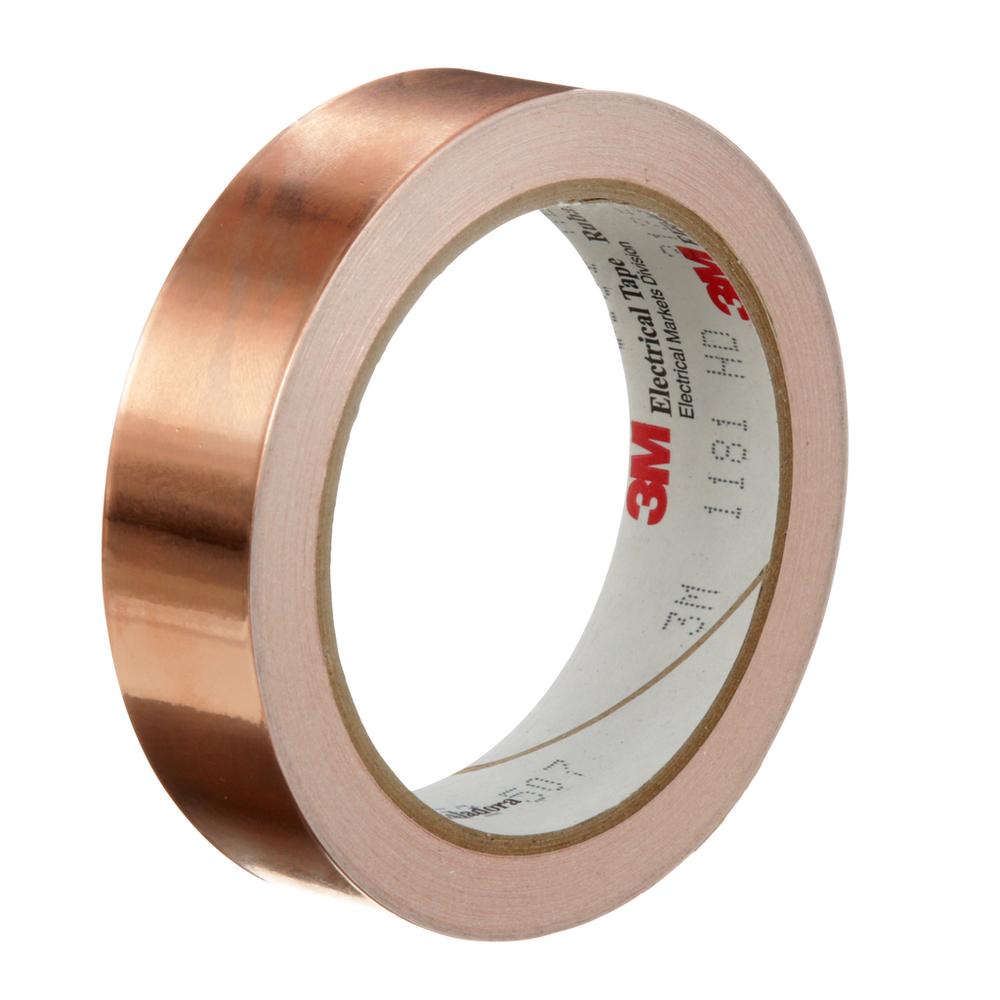

3M™ EMI Copper Foil Shielding Tape 1181, 1 in x 18 yd (25,40 mm x 16,5 m), 9 per case - 7000132169

Sold As: 9-Pack
SKU: 7000132169
MPN: 7000132169
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00054007274681
3M ID: 80011181031
5 Digit UPC: 27468
$783.50 ($87.06 / Count)
Hurry up! Current stock:

Product Description

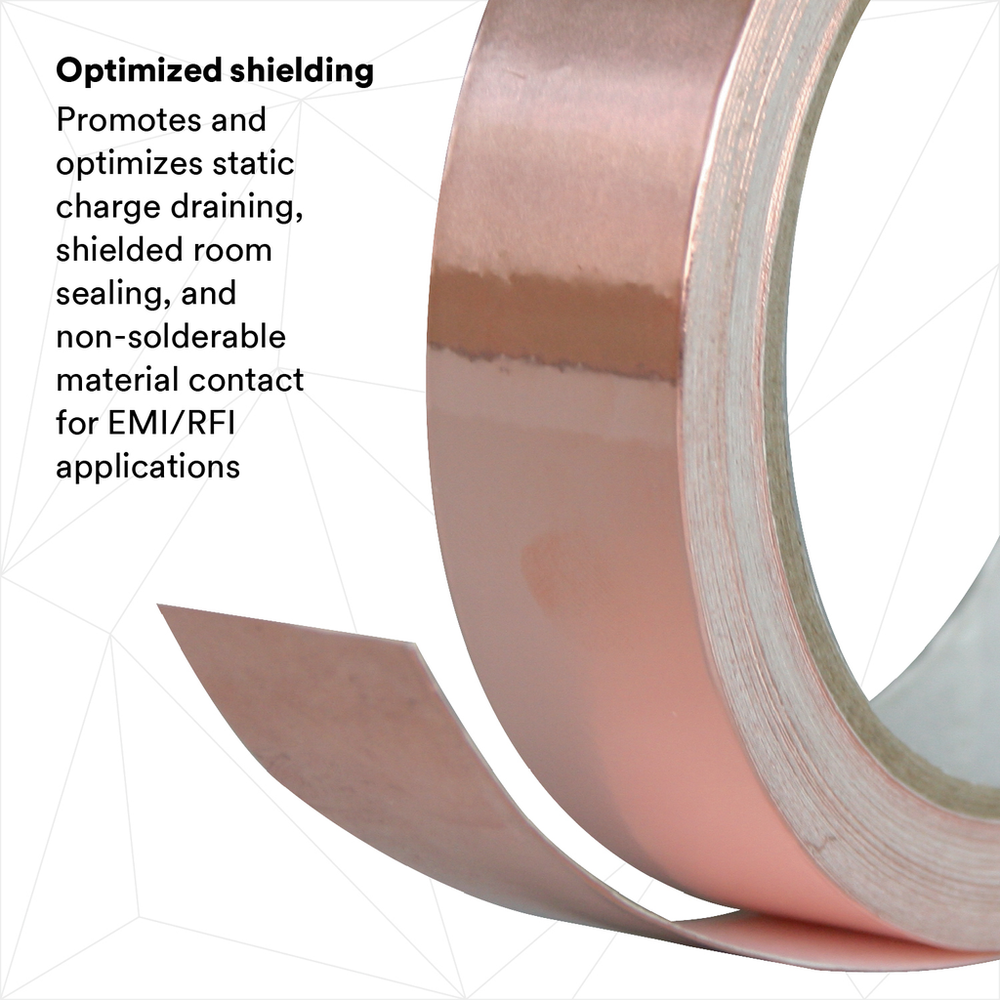

3M™ Copper Foil EMI Shielding Tape 1181 is a conductive adhesive shielding tape that is designed for applications that require reliable, point to point electrical contact. It comes on a removable liner for easy die cutting and handling. The tape is rated for 600V dry applications.

Features

  • Rated for 600V applications
  • Suitable for EMI shielding, grounding and static charge draining
  • UL Listed and RoHS 2011/65/EU Compliant
  • Unique adhesive creates secure contact with the application surface
  • Flame-retardant
Spec Sheet



Downloads

Specifications

Shelf Life1825
Country of OriginTaiwan
Total Tape Thickness without Liner (Metric) UOMmm
Overall Length (Imperial)18.0
Maximum Operating Temperature (Celsius) UOMDegree
Overall Width (Metric) UOMmm
Total Tape Thickness without Liner (Metric)0.066
Shelf Life UOMYear
Tape GradeProfessional
ApplicationShielding
Product MarketsElectrical Equipment Manufacturing
Tensile Strength (Metric) UOMN/cm
Tensile Strength (Metric)44.0
Overall Width (Imperial)1.0
Overall Width (Metric)25.4
Overall Length (Metric)16.5
Maximum Operating Temperature (Celsius)130.0
Overall Width (Imperial) UOMin
Backing (Carrier) MaterialCopper Foil
Specifications MetRoHS 2011/65/EU, UL Recognized
Overall Length (Metric) UOMm
Adhesive TypeConductive Acrylic
Product ColorCopper
Overall Length (Imperial) UOMyd
Elongation at Break20
