3M Products & Supplies

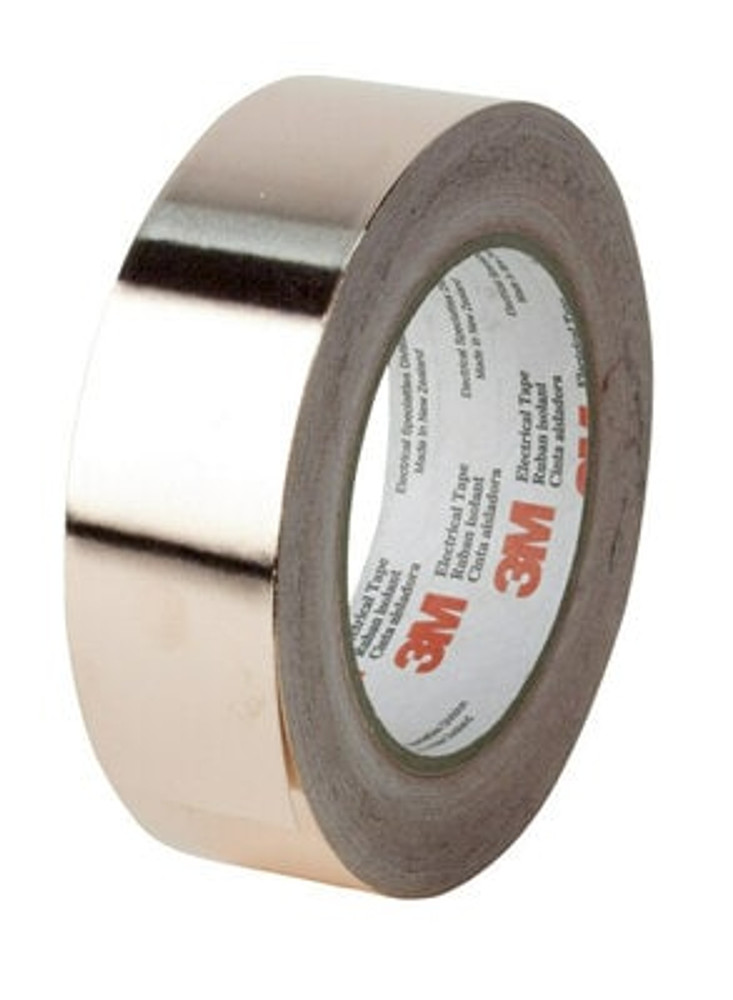

3M™ Copper EMI Shielding Tape 1194, 23 in x 60 yd, log roll, 1 Roll/Case - 7100180028

SKU: 7100180028
MPN: 7100180028
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00638060289426
3M ID: 80000215311
5 Digit UPC: 28942
$3,343.93 each
Hurry up! Current stock:

Product Description

3M™ Copper Foil EMI Shielding Tape 1194 is a 2.6 mil thick acrylic adhesive shielding tape. This flame retardant tape is suitable for applications that require grounding, EMI shielding and economical, electrical bonding. It comes on a removable liner for easy die cutting and handling. The tape is rated for 600V dry applications.

Features

  • UL Listed and RoHS 2011/65/EU Compliant
  • Flame-retardant and suitable for grounding and EMI shielding in equipment, components and shielded rooms
  • Rated for 600V applications
  • Removable liner for easy die-cutting and handling
  • Non-conductive, acrylic adhesive offers optimized adherence

Specifications

Shelf Life1825
Country of OriginTaiwan
Product ColorCopper
Shelf Life UOMYear
MaterialCopper Foil
Product MarketsElectrical Equipment Manufacturing
Backing (Carrier) MaterialCopper Foil
Overall Width (Metric) UOMmm
Total Tape Thickness without Liner (Metric) UOMmm
Overall Width (Imperial) UOMin
Total Tape Thickness without Liner (Metric)0.066
ApplicationShielding
Tape GradeProfessional
Tensile Strength (Metric) UOMN/cm
Adhesive TypeAcrylic
Overall Width (Metric)584.2
Specifications MetRoHS 2011/65/EU, UL Listed, UL Recognized
Tensile Strength (Metric)44.0
Overall Width (Imperial)23.0
