3M Products & Supplies

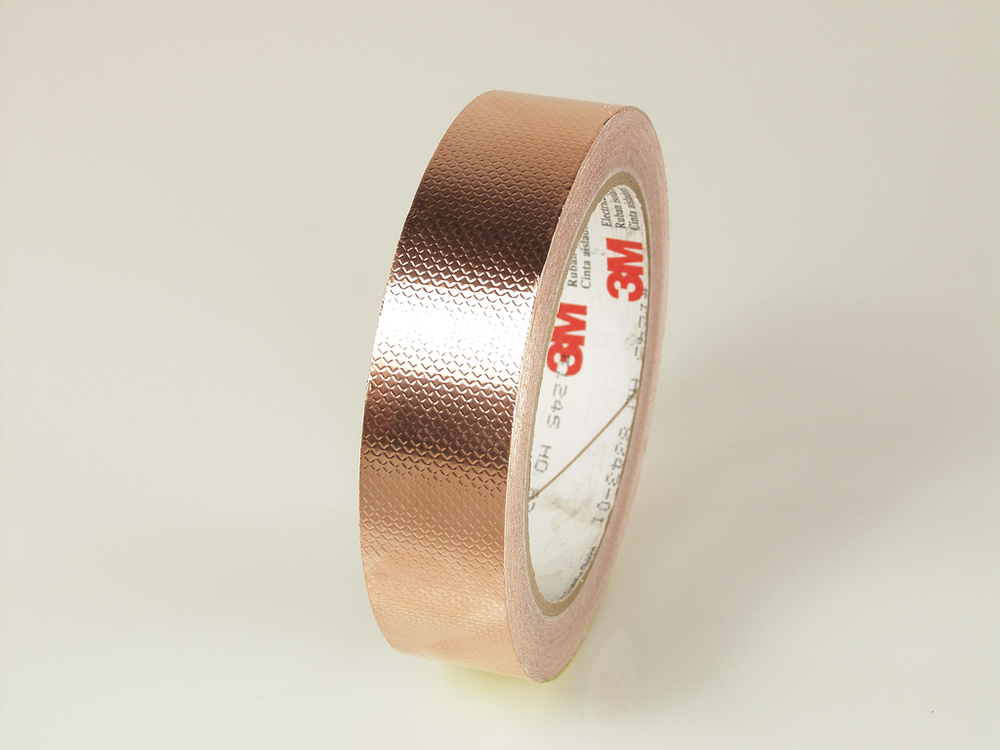

3M™ Copper Foil EMI Shielding Tape 1194, 23 in x 36 yds, Log Roll, 1 Roll/Case - 7000132142

SKU: 7000132142
MPN: 7000132142
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 50054007081253
3M ID: 80008005755
5 Digit UPC: 8125
$1,729.34 each
Hurry up! Current stock:

Product Description

3M™ Copper Foil EMI Shielding Tape 1194 is a 2.6 mil thick acrylic adhesive shielding tape. This flame retardant tape is suitable for applications that require grounding, EMI shielding and economical, electrical bonding. It comes on a removable liner for easy die cutting and handling. The tape is rated for 600V dry applications.

Features

  • UL Listed and RoHS 2011/65/EU Compliant
  • Rated for 600V applications
  • Non-conductive, acrylic adhesive offers optimized adherence
  • Flame-retardant and suitable for grounding and EMI shielding in equipment, components and shielded rooms
  • Removable liner for easy die-cutting and handling

Specifications

Shelf Life1825
Country of OriginTaiwan
Total Tape Thickness without Liner (Metric)0.066
Tensile Strength (Metric)44.0
Backing (Carrier) Thickness (Metric) UOMmm
Adhesive TypeAcrylic
ApplicationShielding
MaterialCopper Foil
Tape GradeProfessional
Product ColorCopper
Backing (Carrier) Thickness (Imperial) UOMmil
Overall Width (Imperial) UOMin
Backing (Carrier) Thickness (Metric)0.035
Backing (Carrier) MaterialCopper Foil
Overall Width (Metric)584.2
Backing (Carrier) Thickness (Imperial)1.4
Shelf Life UOMYear
Specifications MetRoHS 2011/65/EU, UL Listed, UL Recognized
Product MarketsElectrical Equipment Manufacturing
Tensile Strength (Metric) UOMN/cm
Total Tape Thickness without Liner (Metric) UOMmm
Overall Width (Metric) UOMmm
Overall Width (Imperial)23.0
