3M Products & Supplies

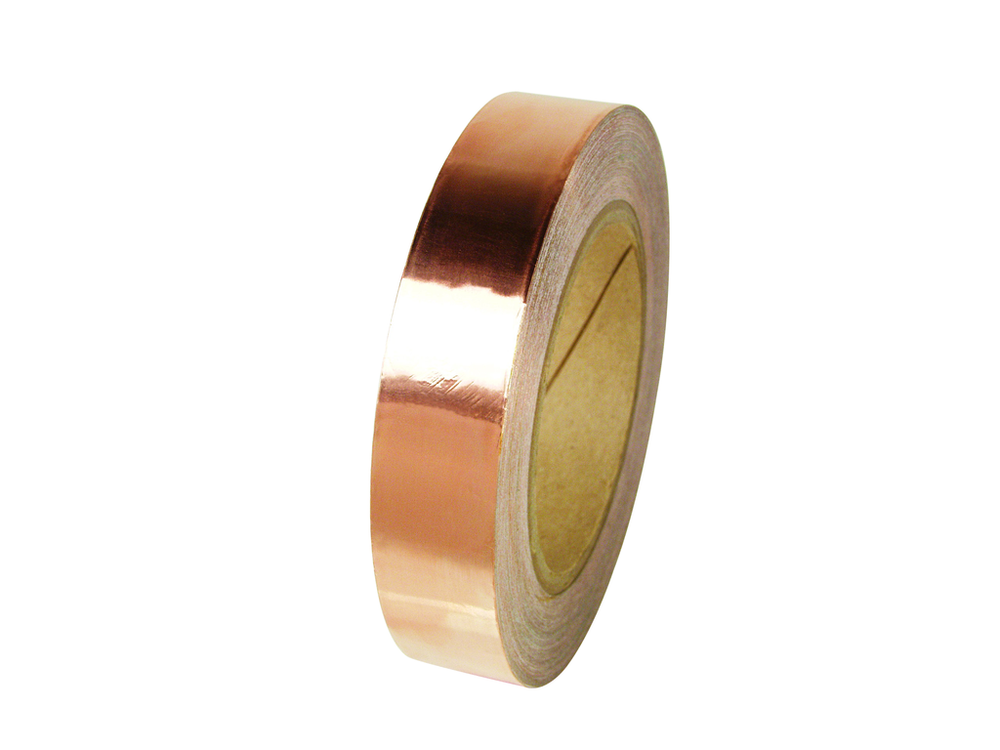

3M™ Copper Foil EMI Shielding Tape 1126, 1/2 in x 36 yd, Roll, 18 Rolls/Case - 7010297482

Sold As: 18-Pack
SKU: 7010297482
MPN: 7010297482
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051128559024
3M ID: 80611424906
5 Digit UPC: 55902
$918.35 ($51.02 / Count)
Hurry up! Current stock:

Product Description

3M™ EMI Copper Conductive Tape 1126 is a 3.5 mil thick, acrylic adhesive EMI shielding tape. This flame retardant tape is suitable for applications in industries like static charge draining and seaming shielded rooms. It withstands a wide temperature range of 40 to 266 °F ( 40 to 130 °C). The tape is rated for 600V dry applications.

Features

  • Highly conformable with a pressure-sensitive, acrylic adhesive
  • Suitable for use in electronic industry applications
  • Outstanding soldering ability
  • Withstands a wide temperature range of -40 to 266 °F (-40 to 130 °C)
  • Rated for 600V applications
  • Flame-retardant and has copper foil backing
Spec Sheet



Downloads

Specifications

Shelf Life1825
Country of OriginTaiwan
Overall Width (Imperial)0.5
Overall Width (Metric) UOMmm
Overall Width (Imperial) UOMin
Overall Length (Imperial)36.0
Adhesive TypeConductive Acrylic
Backing (Carrier) MaterialCopper Foil, Flat
MaterialCopper Foil
Overall Length (Metric) UOMm
Overall Length (Imperial) UOMyd
Product MarketsElectrical Equipment Manufacturing
Overall Width (Metric)12.7
Backing (Carrier) Thickness (Imperial) UOMmil
Product ColorCopper
Backing (Carrier) Thickness (Imperial)1.6
Backing (Carrier) Thickness (Metric)0.04
Specifications MetRoHS 2011/65/EU, UL Recognized
Overall Length (Metric)33.0
Backing (Carrier) Thickness (Metric) UOMmm
