3M Products & Supplies

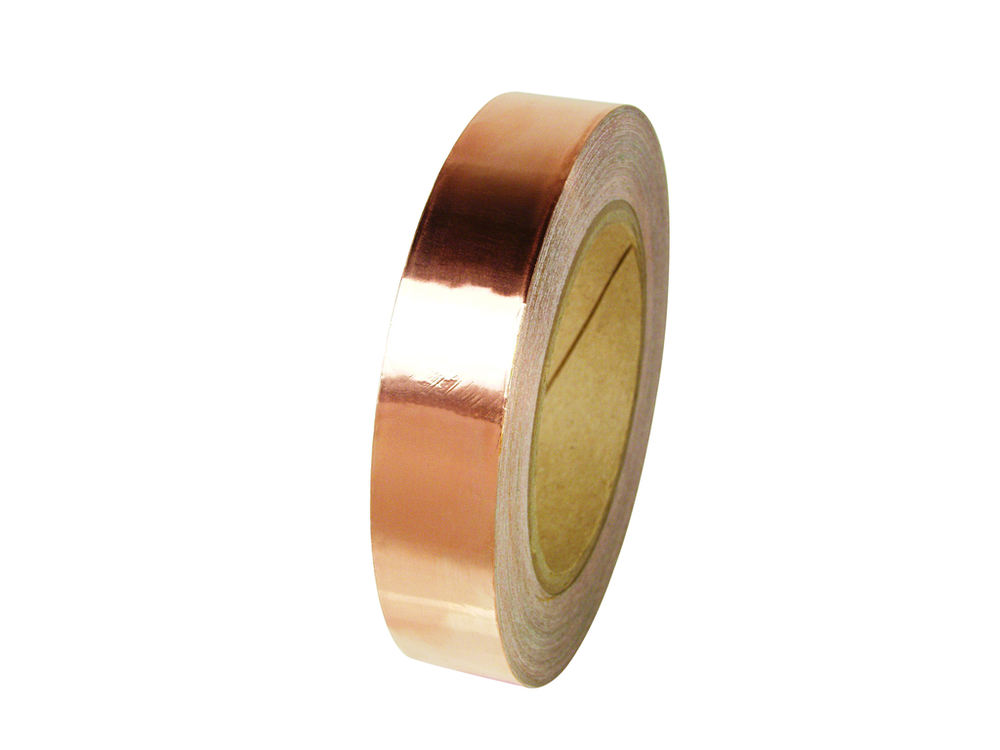

3M™ Copper Foil Tape 1126, 1 in x 36 yd Rolls, 9 Rolls/Case - 7000132942

Sold As: 9-Pack
SKU: 7000132942
MPN: 7000132942
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051128546543
3M ID: 80611239759
5 Digit UPC: 54654
$880.32 ($97.81 / Count)
Hurry up! Current stock:

Product Description

3M™ EMI Copper Conductive Tape 1126 is a 3.5 mil thick, acrylic adhesive EMI shielding tape. This flame retardant tape is suitable for applications in industries like static charge draining and seaming shielded rooms. It withstands a wide temperature range of 40 to 266 °F ( 40 to 130 °C). The tape is rated for 600V dry applications.

Features

  • Withstands a wide temperature range of -40 to 266 °F (-40 to 130 °C)
  • Flame-retardant and has copper foil backing
  • Rated for 600V applications
  • Suitable for use in electronic industry applications
  • Outstanding soldering ability
  • Highly conformable with a pressure-sensitive, acrylic adhesive
Spec Sheet



Downloads

Specifications

Shelf Life1825
Country of OriginTaiwan
Backing (Carrier) Thickness (Imperial)1.6
Overall Width (Metric)25.4
MaterialCopper Foil
Overall Width (Imperial)1.0
Overall Width (Imperial) UOMin
Backing (Carrier) Thickness (Imperial) UOMmil
Backing (Carrier) MaterialCopper Foil, Flat
Adhesive TypeConductive Acrylic
Overall Length (Metric)33.0
Specifications MetRoHS 2011/65/EU, UL Recognized
Backing (Carrier) Thickness (Metric) UOMmm
Overall Length (Metric) UOMm
Overall Length (Imperial) UOMyd
Product MarketsElectrical Equipment Manufacturing
Overall Length (Imperial)36.0
Product ColorCopper
Backing (Carrier) Thickness (Metric)0.04
Overall Width (Metric) UOMmm
