3M Products & Supplies

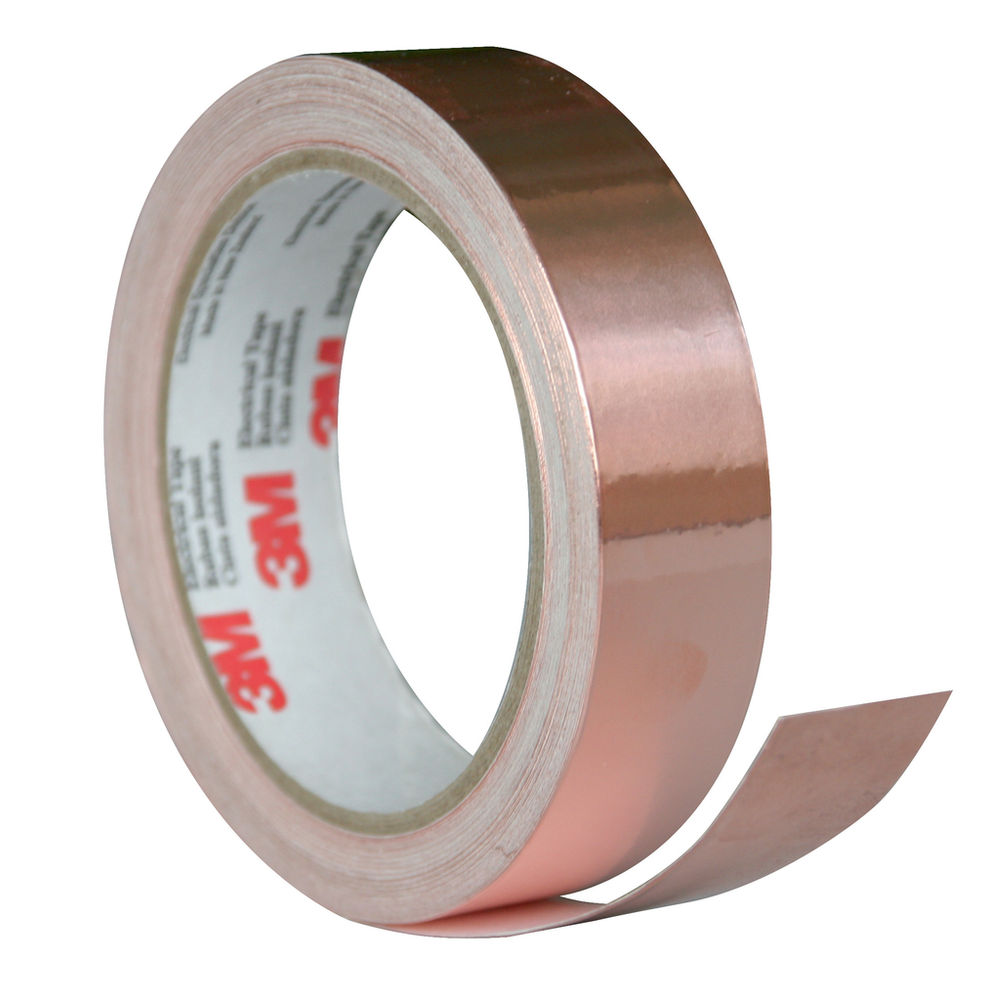

3M™ Copper Foil EMI Shielding Tape 1181, 3 in x 18 yd, 4 Rolls/Case - 7010398770

Sold As: 4-Pack
SKU: 7010398770
MPN: 7010398770
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051138496678
3M ID: 80610882468
5 Digit UPC: 49667
$1,149.34 ($287.33 / Count)
Hurry up! Current stock:

Product Description

3M™ Copper Foil EMI Shielding Tape 1181 is a conductive adhesive shielding tape that is designed for applications that require reliable, point to point electrical contact. It comes on a removable liner for easy die cutting and handling. The tape is rated for 600V dry applications.

Features

  • Rated for 600V applications
  • Unique adhesive creates secure contact with the application surface
  • Suitable for EMI shielding, grounding and static charge draining
  • UL Listed and RoHS 2011/65/EU Compliant
  • Flame-retardant
Spec Sheet



Downloads

Specifications

Shelf Life1825
Country of OriginTaiwan
Product ColorCopper
Total Tape Thickness without Liner (Metric)0.066
Overall Length (Imperial) UOMyd
Tape GradeProfessional
Overall Length (Imperial)18.0
Backing (Carrier) MaterialCopper Foil
Overall Width (Imperial)3.0
Tensile Strength (Metric)44.0
Adhesive TypeConductive Acrylic
Total Tape Thickness without Liner (Metric) UOMmm
Elongation at Break20
ApplicationShielding
Overall Width (Imperial) UOMin
Shelf Life UOMYear
Product MarketsElectrical Equipment Manufacturing
Specifications MetRoHS 2011/65/EU, UL Recognized
Maximum Operating Temperature (Celsius)130.0
Overall Length (Metric)16.5
Overall Length (Metric) UOMm
Maximum Operating Temperature (Celsius) UOMDegree
Overall Width (Metric)76.2
Tensile Strength (Metric) UOMN/cm
Overall Width (Metric) UOMmm
