3M Products & Supplies

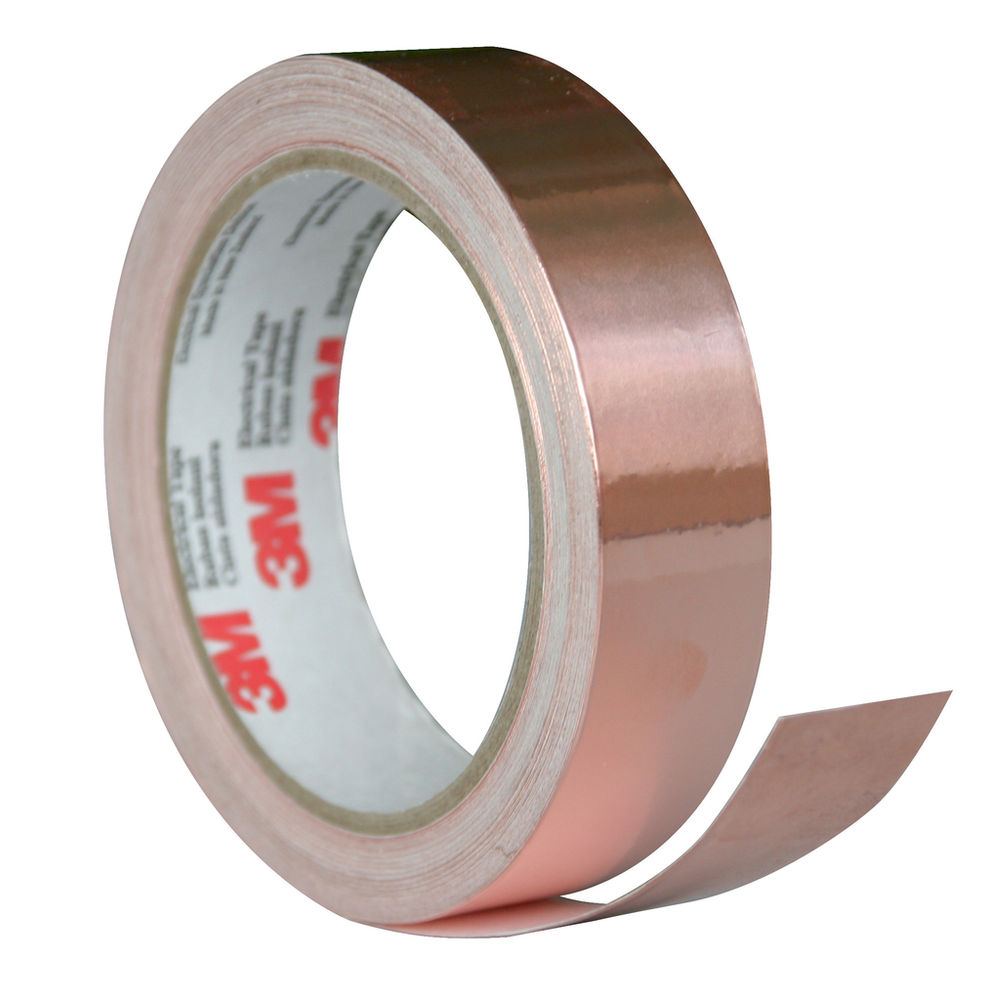

3M™ Copper Foil EMI Shielding Tape 1181, 4 in x 18 yd, 3 in Paper Core, 3 Rolls/Case - 7010350294

Sold As: 3-Pack
SKU: 7010350294
MPN: 7010350294
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051138496685
3M ID: 80610882476
5 Digit UPC: 49668
$1,024.12 ($341.37 / Count)
Hurry up! Current stock:

Product Description

3M™ Copper Foil EMI Shielding Tape 1181 is a conductive adhesive shielding tape that is designed for applications that require reliable, point to point electrical contact. It comes on a removable liner for easy die cutting and handling. The tape is rated for 600V dry applications.

Features

  • Rated for 600V applications
  • Unique adhesive creates secure contact with the application surface
  • UL Listed and RoHS 2011/65/EU Compliant
  • Flame-retardant
  • Suitable for EMI shielding, grounding and static charge draining
Spec Sheet



Downloads

Specifications

Shelf Life1825
Country of OriginTaiwan
Overall Width (Metric)101.6
Elongation at Break20
Backing (Carrier) MaterialCopper Foil
Maximum Operating Temperature (Celsius)130.0
ApplicationShielding
Tensile Strength (Metric) UOMN/cm
Overall Length (Metric) UOMm
Maximum Operating Temperature (Celsius) UOMDegree
Overall Length (Metric)16.5
Overall Length (Imperial) UOMyd
Overall Width (Imperial) UOMin
Product ColorCopper
Tape GradeProfessional
Specifications MetRoHS 2011/65/EU, UL Recognized
Overall Width (Imperial)4.0
Total Tape Thickness without Liner (Metric)0.066
Shelf Life UOMYear
Tensile Strength (Metric)44.0
Adhesive TypeConductive Acrylic
Product MarketsElectrical Equipment Manufacturing
Total Tape Thickness without Liner (Metric) UOMmm
Overall Length (Imperial)18.0
Overall Width (Metric) UOMmm
