3M Products & Supplies

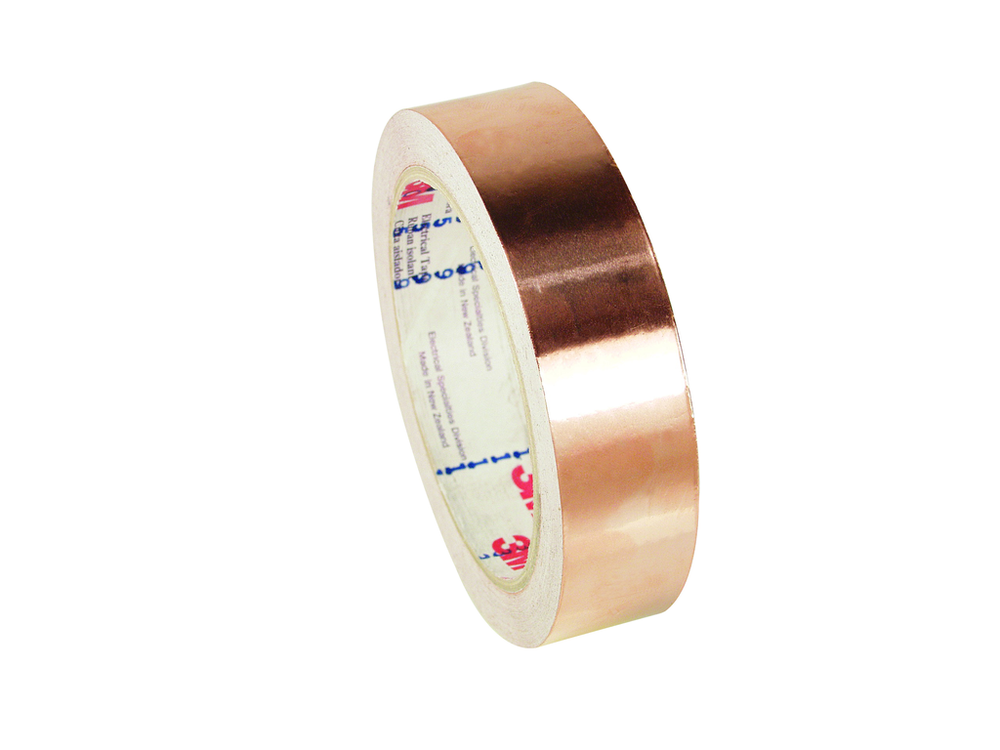

3M™ Copper Foil EMI Shielding Tape 1182, 23 in x 18 yds, slitter/dist log rolls, Bulk, 1 Roll/Case - 7010349065

SKU: 7010349065
MPN: 7010349065
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051138966072
3M ID: 80611028079
5 Digit UPC: 96607
$1,945.65 each
Hurry up! Current stock:

Product Description

3M™ Copper Foil EMI Shielding Tape 1182 is a 3.5 mil thick acrylic adhesive shielding tape. This flame retardant tape is designed to bond 2 surfaces together physically and electrically. It comes on a removable liner for easy die cutting and handling. The tape is rated for 600V dry applications.

Features

  • Flame-retardant
  • Unique adhesive creates secure contact with the application surface
  • Rated for 600V applications
  • UL Listed and RoHS 2011/65/EU Compliant
  • Suitable for bonding 2 surfaces together physically and electrically

Specifications

Shelf Life1825
Country of OriginTaiwan
Product ColorCopper
Tensile Strength (Metric)44.0
Tensile Strength (Metric) UOMN/cm
Backing (Carrier) Thickness (Metric)0.089
Backing (Carrier) Thickness (Imperial)3.5
Shelf Life UOMYear
Overall Width (Metric) UOMmm
Backing (Carrier) Thickness (Imperial) UOMmil
Backing (Carrier) Thickness (Metric) UOMmm
Product MarketsElectrical Equipment Manufacturing
Elongation at Break5
Maximum Operating Temperature (Celsius)130.0
Total Tape Thickness without Liner (Metric)0.0889
Specifications MetRoHS 2011/65/EU, UL 510, UL Listed, UL Recognized
Total Tape Thickness without Liner (Metric) UOMmm
Overall Width (Metric)584.2
Overall Width (Imperial)23.0
Backing (Carrier) MaterialCopper Foil, Flat
Maximum Operating Temperature (Celsius) UOMDegree
Adhesive TypeAcrylic
Overall Width (Imperial) UOMin
MaterialCopper Foil
Tape GradeProfessional
