3M Products & Supplies

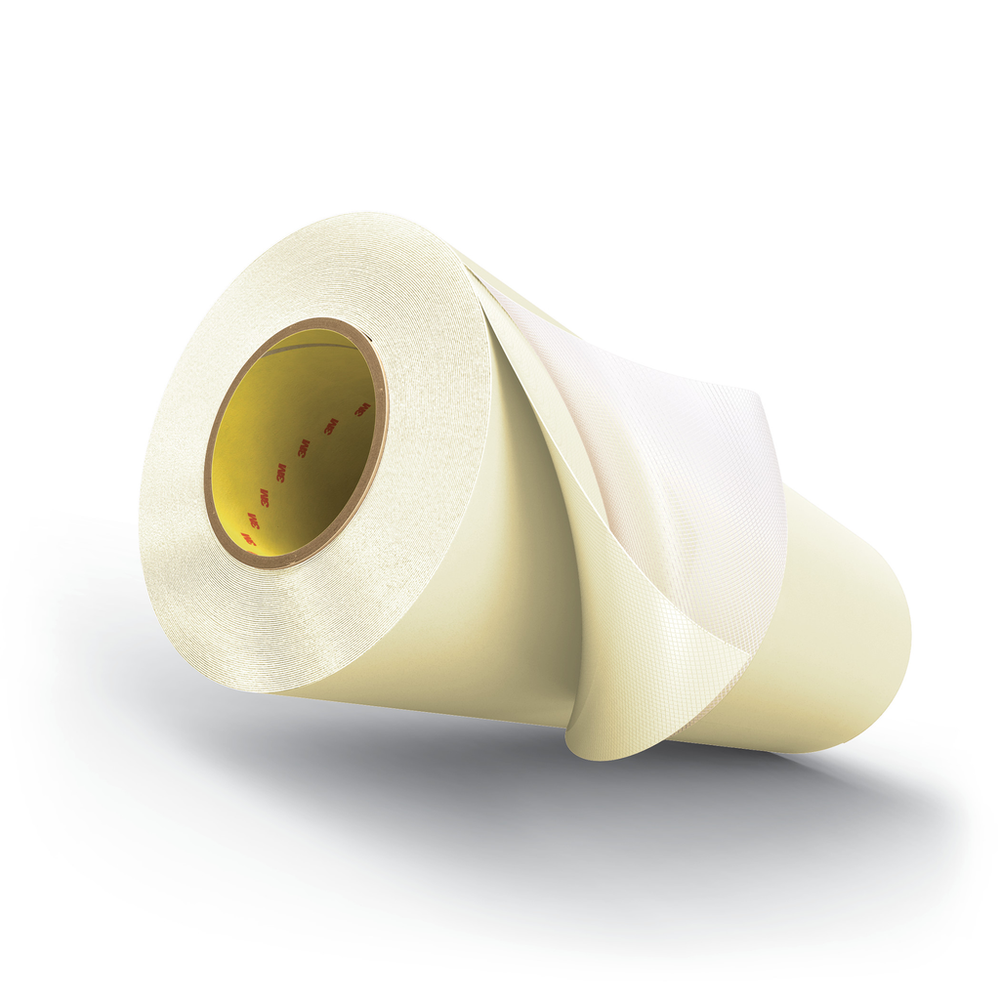

3M™ Cushion-Mount™ Plus Plate Mounting Tape E1015H, White, 13 in x 36 yd, 20 mil, 1 Roll/Case - 7100334000

Sold As: 4-Pack
SKU: 7100334000
MPN: 7100334000
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00068060011008
3M ID: 70001000978
$2,748.05 ($687.01 / Count)
Hurry up! Current stock:

Product Description

3M™ Cushion-Mount™ Plus Plate Mounting Tape E1015H with easy mount adhesive is designed for mounting flexographic print plates to cylinders or sleeves. This white foam mounting tape provides high quality standard combination print.

Features

  • The white foam color indicates the standard, medium density foam
  • Print plates mounted on E1015H will have no air bubbles under the plate due to the air release feature designed into the tape
  • Has a standard medium density foam that is ideal for printing combinations of solids and process with halftone dots
  • Has higher plate side adhesion for challenging print conditions that use thick plates or small print sleeves
  • Securely bonds the flexographic photopolymer plate to the print sleeve or steel cylinder to prevent plate edge lifting during printing
  • 0.015 inch (0.38 mm) double coated foam tape has the air release feature with a plate side adhesive technology designed to resist edge lifting on flexographic print plates
Spec Sheet



Downloads

Specifications

Shelf Life730
Urethane SleevesYes
Overall Length (Metric)32.918
Country of OriginUnited States
Overall Length (Metric) UOMm
Overall Width (Imperial) UOMin
Total Tape Thickness without Liner (Metric)0.51
Overall Length (Imperial) UOMyd
Total Tape Thickness without Liner (Imperial) UOMmil
Overall Length (Imperial)36.0
Warranty Period2 Years from Date of Manufacture
Product FormRoll
Overall Width (Metric)330.2
Application Thickness (Metric)0.381
Print QualityCombination Printing - Standard
Overall Width (Imperial)13.0
IndustriesPrint
Primary LinerPolycoated Polyester
Primary Liner Thickness (Metric)0.11
Product ColorWhite
Total Tape Thickness without Liner (Imperial)20.0
Application Thickness (Metric) UOMmm
Backing MaterialPolyethylene Foam
Application Thickness (Imperial) UOMmil
Application Thickness (Imperial)15
Total Tape Thickness without Liner (Metric) UOMmm
Overall Width (Metric) UOMmm
Primary Liner Thickness (Metric) UOMmm
Adhesive TypeDifferential Acrylate
ApplicationFlexographic Plate Mounting
Print Quality (Series)10 Series
