3M Products & Supplies

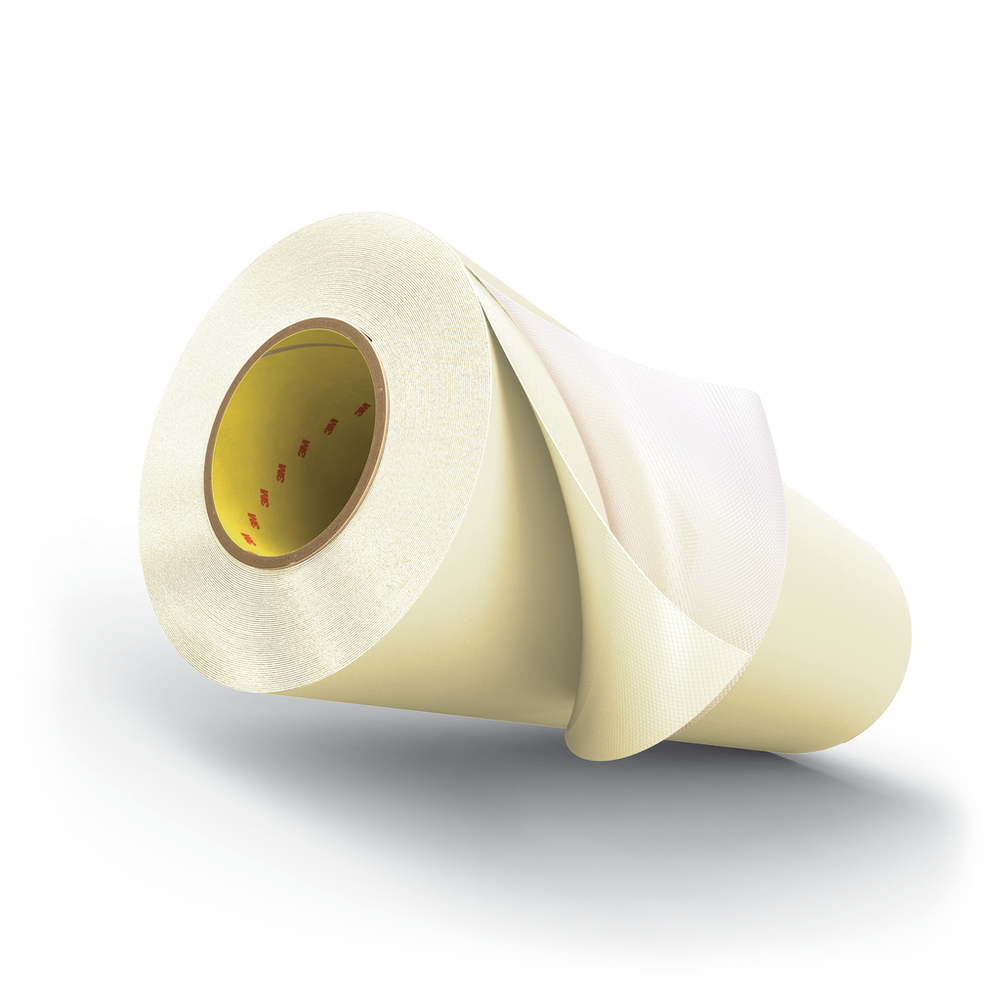

3M™ Cushion-Mount™ Plus Plate Mounting Tape E1015H, White, 18 in x 36 yd, 15 mil, 1 Roll/Case - 7100314507

SKU: 7100314507
MPN: 7100314507
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00068060005595
3M ID: 70007559001
$864.77 each
Hurry up! Current stock:

Product Description

3M™ Cushion-Mount™ Plus Plate Mounting Tape E1015H with easy mount adhesive is designed for mounting flexographic print plates to cylinders or sleeves. This white foam mounting tape provides high quality standard combination print.

Features

  • Print plates mounted on E1015H will have no air bubbles under the plate due to the air release feature designed into the tape
  • The white foam color indicates the standard, medium density foam
  • Securely bonds the flexographic photopolymer plate to the print sleeve or steel cylinder to prevent plate edge lifting during printing
  • 0.015 inch (0.38 mm) double coated foam tape has the air release feature with a plate side adhesive technology designed to resist edge lifting on flexographic print plates
  • Has higher plate side adhesion for challenging print conditions that use thick plates or small print sleeves
  • Has a standard medium density foam that is ideal for printing combinations of solids and process with halftone dots
Spec Sheet



Downloads

Specifications

Shelf Life730
Country of OriginUnited States
Overall Length (Metric)32.918
Overall Length (Imperial)36.0
Overall Width (Metric)457.0
Overall Width (Imperial)18.0
Overall Length (Imperial) UOMyd
Overall Width (Imperial) UOMin
Overall Length (Metric) UOMm
Overall Width (Metric) UOMmm
Product ColorWhite
Print QualityCombination Printing - Standard
Backing MaterialPolyethylene Foam
Print Quality (Series)10 Series
Adhesive TypeDifferential Acrylate
IndustriesPrint
Application Thickness (Metric) UOMmm
ApplicationFlexographic Plate Mounting
Primary Liner Thickness (Metric)0.11
Application Thickness (Metric)0.381
Urethane SleevesYes
Application Thickness (Imperial)15
Primary LinerPolycoated Polyester
Application Thickness (Imperial) UOMmil
Primary Liner Thickness (Metric) UOMmm
Warranty Period2 Years from Date of Manufacture
