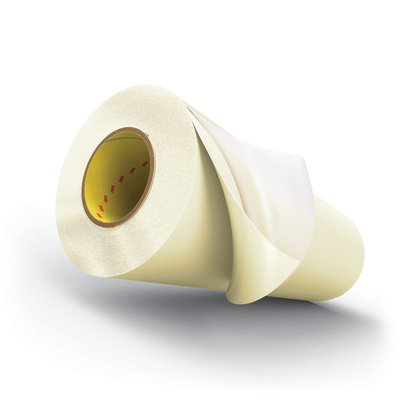

3M Cushion-Mount Plus Plate Mounting Tape E1015H White, 18 in x 25 yd 0.15 in, 1 per case Bulk

Overview

• Securely bonds the flexographic photopolymer plate to the print sleeve or steel cylinder to prevent plate edge lifting during printing
• This cushion tape is manufactured for 15 mil applications. It is constructed with engineered acrylic adhesives. The adhesive on the linered (plate) side of the tape is designed for mounting of photopolymer plates. The adhesive on the non-linered (sleeve/cylinder) side is designed for mounting to flexographic printing cylinders or sleeves, providing easy application at mounting and clean removal when demounting.
• For decades, 3M products have been at work in printing plants helping to improve the quality of the work that goes out and the efficiency of how it gets done.
• Has higher plate side adhesion for challenging print conditions that use thick plates or small print sleeves
• Our 3M™ Cushion-Mount™ Plus Plate Mounting Tape E1015H with easy mount adhesive is designed for mounting flexographic print plates to cylinders or sleeves. This white foam mounting tape provides high quality standard combination print.
• 3M air release liners have a crosshatched pattern, unlike other mounting tapes that use a pebbled or flat release liner. The embossed crosshatched pattern imprints unique micro-channels into the easy mount adhesive that allows entrapped air to escape. Air bubbles disappear from between the tape and plate, and between the tape and sleeve or cylinder for virtually bubble-free mounting. Setup is faster with smoother surfaces for cleaner print quality and higher productivity. The adhesive maintains tight contact with reduced edge lifting.
• 3M™ Cushion-Mount™ Plus Plate Mounting Tape E1015H is a white foam tape that provides high quality combination print. This is the standard tape for combination print. It has the air release feature that allows for bubble free mounting. This tape has excellent resistance to lifting on press allowing for clean plate removal.
• Print plates mounted on E1015H will have no air bubbles under the plate due to the air release feature designed into the tape
• Has a standard medium density foam that is ideal for printing combinations of solids and process with halftone dots
• Flexographic printing, flexographic printers
• 0.015 inch (0.38 mm) double coated foam tape has the air release feature with a plate side adhesive technology designed to resist edge lifting on flexographic print plates
• Tape also removes cleanly from the sleeve or steel print cylinder
• Grooves in the adhesive are created by a cross-hatch pattern from the release liner
• 3M flexographic plate mounting tapes are highly engineered to provide very tight caliper tolerance to allow printers to use tape from different manufacturing lots and keep tight print registration. The compressible foam will withstand long and high speed print runs.
• Plate demounts from the double coated cushioned tape without adhesive residue
• Cushioned flexographic plate mounting sticky back foam tape
• The white foam color indicates the standard, medium density foam

Recommended Applications

• Used in combination, process and solid printing processes
• 3M sticky back tapes are designed for narrow web presses to print tag and labels
• Mounting photopolymer plates to flexographic printing cylinders and sleeves
