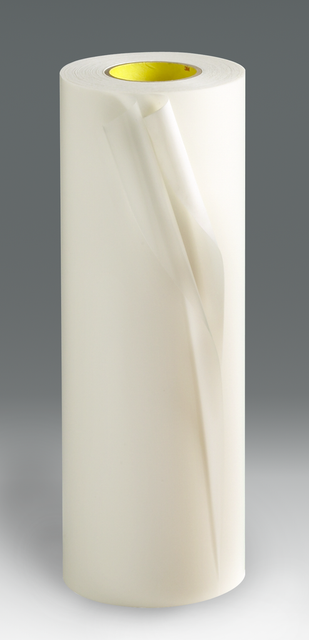

3M Cushion-Mount Plus Plate Mounting Tape E1020, White, 18 in x 25 yd, 20 mil, 1 Roll/Case
3M Cushion-Mount Plus Plate Mounting Tape E1020, White, 18 in x 25 yd, 20 mil, 1 Roll/Case
3M Cushion-Mount Plus Plate Mounting Tape E1020, White, 18 in x 25 yd, 20 mil, 1 Roll/Case
Previous Next

3M Products & Supplies

3M™ Cushion-Mount™ Plus Plate Mounting Tape E1020, White, 18 in x 25 yd, 20 mil, 1 roll per case - 7000001260

SKU: 7000001260
MPN: 7000001260
Stock Item: Stock items typically ship within 2-3 business days
UPC: 051125747677
3M ID: 70002019555
$601.70 each
Hurry up! Current stock:

Product Description

Our 3M™ Cushion-Mount™ Plus Plate Mounting Tape E1020 with easy mount adhesive is designed for mounting flexographic print plates to cylinders or sleeves. This white foam mounting tape provides high quality standard combination print.

Features

  • Tape also removes cleanly from the sleeve or steel print cylinder
  • Plate easily demounts from the double coated cushioned tape without adhesive residue
  • Cushioned flexographic plate mounting sticky back foam tape
  • Flexographic printing, flexographic printers
  • 0.020 inch (0.51 mm) double coated foam tape has the air release feature with a plate side adhesive technology designed to remove with less force from flexographic print plates
  • Securely bonds the flexographic photopolymer plate to the print sleeve or steel cylinder to prevent plate edge lifting during printing
  • Print plates mounted on E1020 will have no air bubbles under the plate due to the air release feature designed into the tape
  • Grooves in the adhesive are created by a cross-hatch pattern from the release liner
  • Has a standard medium density foam that is ideal for printing combinations of solids and process with halftone dots
  • White foam color indicates the standard, medium density foam

Downloads

Specifications

Product ColorWhite
Total Tape Thickness without Liner (Imperial)22 mil
Primary LinerPolycoated Polyester
Adhesive TypeDifferential Acrylate
Print QualityCombination Printing - Standard
Total Tape Thickness without Liner (Metric)0.56 mm
Product NumberE1020
Overall Length (Imperial)25 yd
Overall Length (Metric)22.88 m
Urethane SleevesYes
Color FamilyWhite
ApplicationFlexographic Plate Mounting
Application Thickness (Imperial)20 mil
Primary Liner Thickness (Metric)0.11 mm
Composite SleevesYes
Overall Thickness (Imperial)22 mil
Overall Width (Metric)457.2 mm
Product FormRoll
Backing MaterialPolyethylene Foam
Warranty Period2 Years from Date of Manufacture
Primary Liner ColorClear
Overall Width (Imperial)18 in
Air ReleaseYes
Primary Liner Thickness (Imperial)4.5 mil
Print Quality (Series)10 Series
Application Thickness (Metric)0.5 mm
