3M Products & Supplies

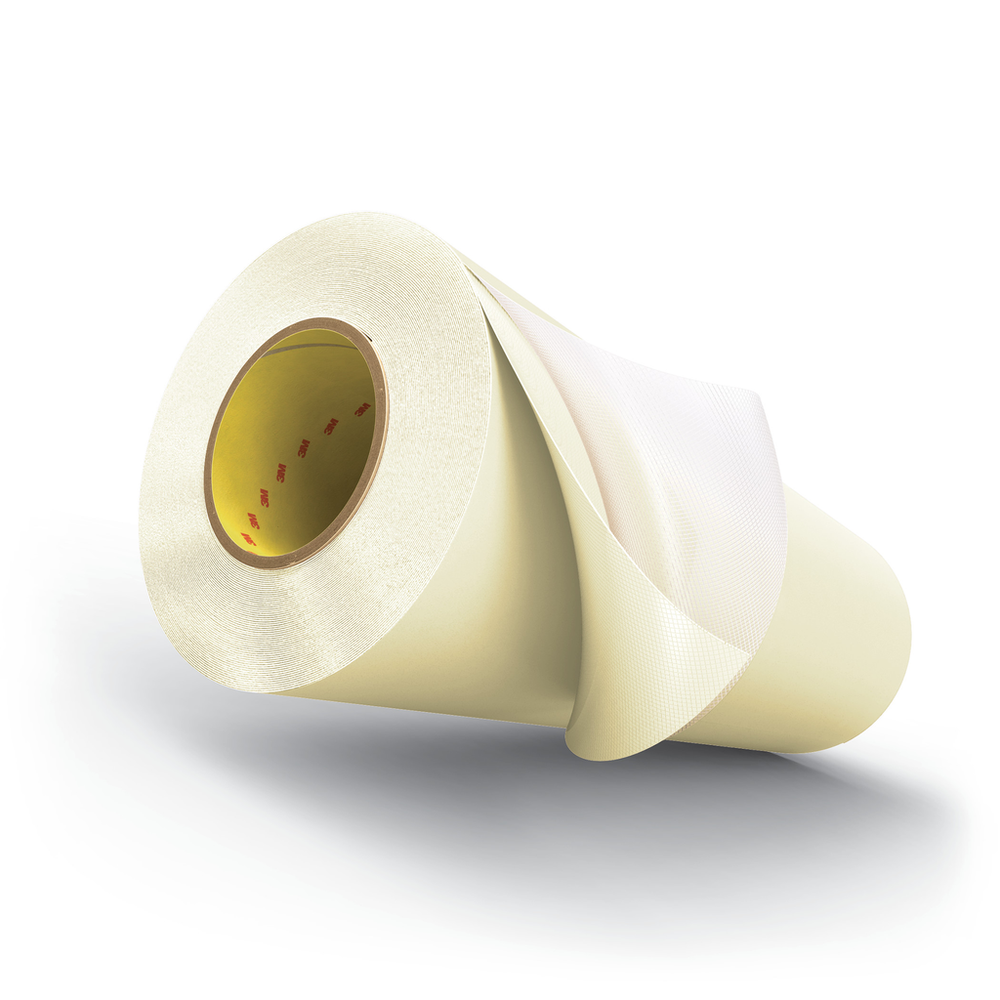

3M™ Cushion-Mount™ Plus Plate Mounting Tape E1020, White, 24 in x 36 yd, 20 mil, 1 Roll/Case - 7100311269

SKU: 7100311269
MPN: 7100311269
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00068060004826
3M ID: 70007558268
$1,341.82 each
Hurry up! Current stock:

Product Description

3M™ Cushion-Mount™ Plus Plate Mounting Tape E1020 with easy mount adhesive is designed for mounting flexographic print plates to cylinders or sleeves. This white foam mounting tape provides high quality standard combination print.

Features

  • Grooves in the adhesive are created by a cross-hatch pattern from the release liner
  • Securely bonds the flexographic photopolymer plate to the print sleeve or steel cylinder to prevent plate edge lifting during printing
  • Has a standard medium density foam that is ideal for printing combinations of solids and process with halftone dots
  • 0.020 inch (0.51 mm) double coated foam tape has the air release feature with a plate side adhesive technology designed to remove with less force from flexographic print plates
  • White foam color indicates the standard, medium density foam
  • Print plates mounted on E1020 will have no air bubbles under the plate due to the air release feature designed into the tape
Spec Sheet



Downloads

Specifications

ApplicationFlexographic Plate Mounting
Warranty Period2 Years from Date of Manufacture
Overall Width (Imperial) UOMin
Overall Width (Metric)609.6
Print Quality (Series)10 Series
Urethane SleevesYes
Overall Length (Metric)32.918
Primary Liner Thickness (Metric) UOMmm
Overall Length (Imperial) UOMyd
Application Thickness (Imperial) UOMmil
IndustriesPrint
Primary Liner Thickness (Metric)0.11
Backing MaterialPolyethylene Foam
Overall Width (Metric) UOMmm
Application Thickness (Metric)0.508
Application Thickness (Imperial)20
Application Thickness (Metric) UOMmm
Overall Width (Imperial)24.0
Overall Length (Metric) UOMm
Shelf Life730
Overall Length (Imperial)36.0
Product ColorWhite
Adhesive TypeDifferential Acrylate
Print QualityCombination Printing - Standard
Primary LinerPolycoated Polyester
Country of OriginUnited States
