3M Products & Supplies

3M™ Cushion-Mount™ Plus Plate Mounting Tape E1020, White, 26 in x 36 yd, 20 mil, 1 Roll/Case - 7100311267

SKU: 7100311267
MPN: 7100311267
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00068060004871
3M ID: 70007558318
$1,453.64 each
Hurry up! Current stock:

Product Description

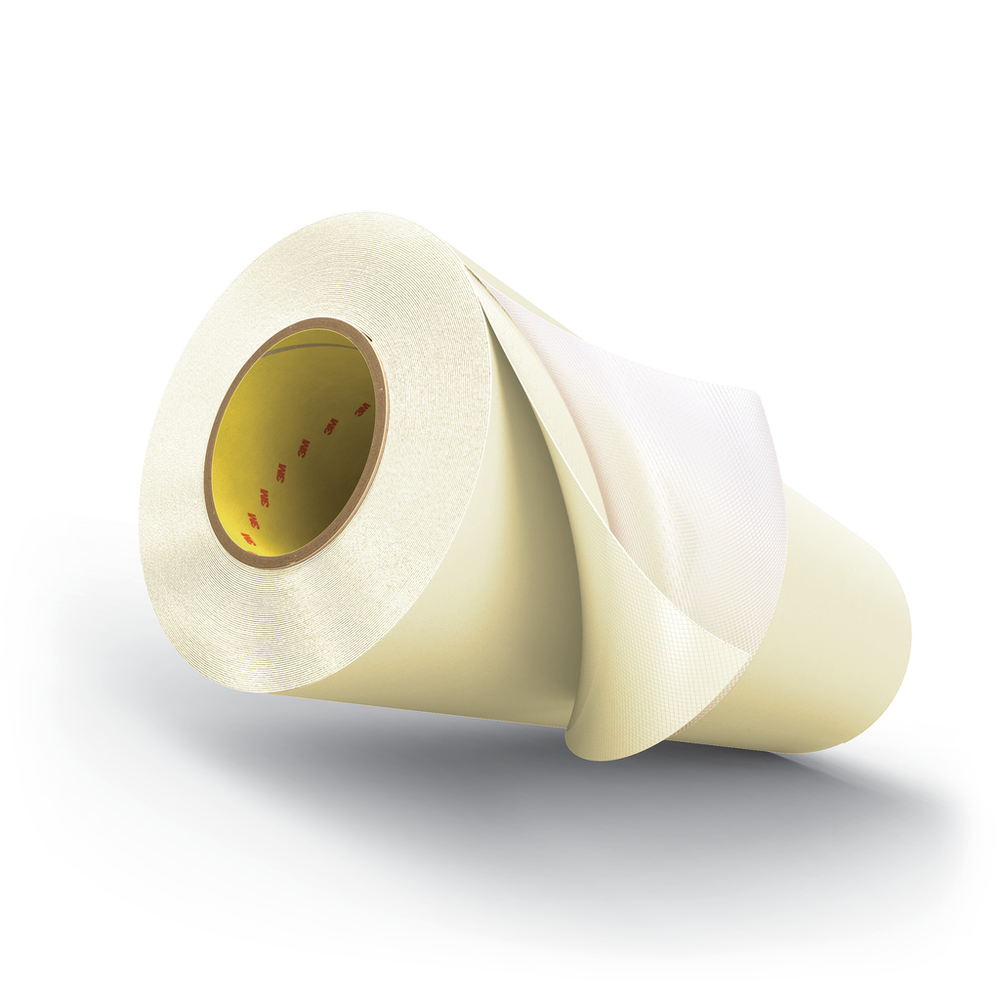

3M™ Cushion-Mount™ Plus Plate Mounting Tape E1020 with easy mount adhesive is designed for mounting flexographic print plates to cylinders or sleeves. This white foam mounting tape provides high quality standard combination print.

Features

  • Securely bonds the flexographic photopolymer plate to the print sleeve or steel cylinder to prevent plate edge lifting during printing
  • 0.020 inch (0.51 mm) double coated foam tape has the air release feature with a plate side adhesive technology designed to remove with less force from flexographic print plates
  • Print plates mounted on E1020 will have no air bubbles under the plate due to the air release feature designed into the tape
  • Grooves in the adhesive are created by a cross-hatch pattern from the release liner
  • White foam color indicates the standard, medium density foam
  • Has a standard medium density foam that is ideal for printing combinations of solids and process with halftone dots
Spec Sheet



Downloads

Specifications

Overall Length (Metric) UOMm
Primary Liner Thickness (Metric)0.11
Overall Length (Imperial) UOMyd
Application Thickness (Imperial)20
Overall Length (Metric)32.918
Adhesive TypeDifferential Acrylate
Primary Liner Thickness (Metric) UOMmm
Application Thickness (Metric) UOMmm
Overall Width (Metric) UOMmm
Warranty Period2 Years from Date of Manufacture
Print QualityCombination Printing - Standard
Product ColorWhite
IndustriesPrint
Urethane SleevesYes
Overall Length (Imperial)36.0
ApplicationFlexographic Plate Mounting
Overall Width (Imperial)26.0
Primary LinerPolycoated Polyester
Overall Width (Metric)660.4
Application Thickness (Metric)0.508
Shelf Life730
Country of OriginUnited States
Print Quality (Series)10 Series
Overall Width (Imperial) UOMin
Backing MaterialPolyethylene Foam
Application Thickness (Imperial) UOMmil
Primary Liner Thickness (Imperial)4.5
Primary Liner Thickness (Imperial) UOMmil
