3M Products & Supplies

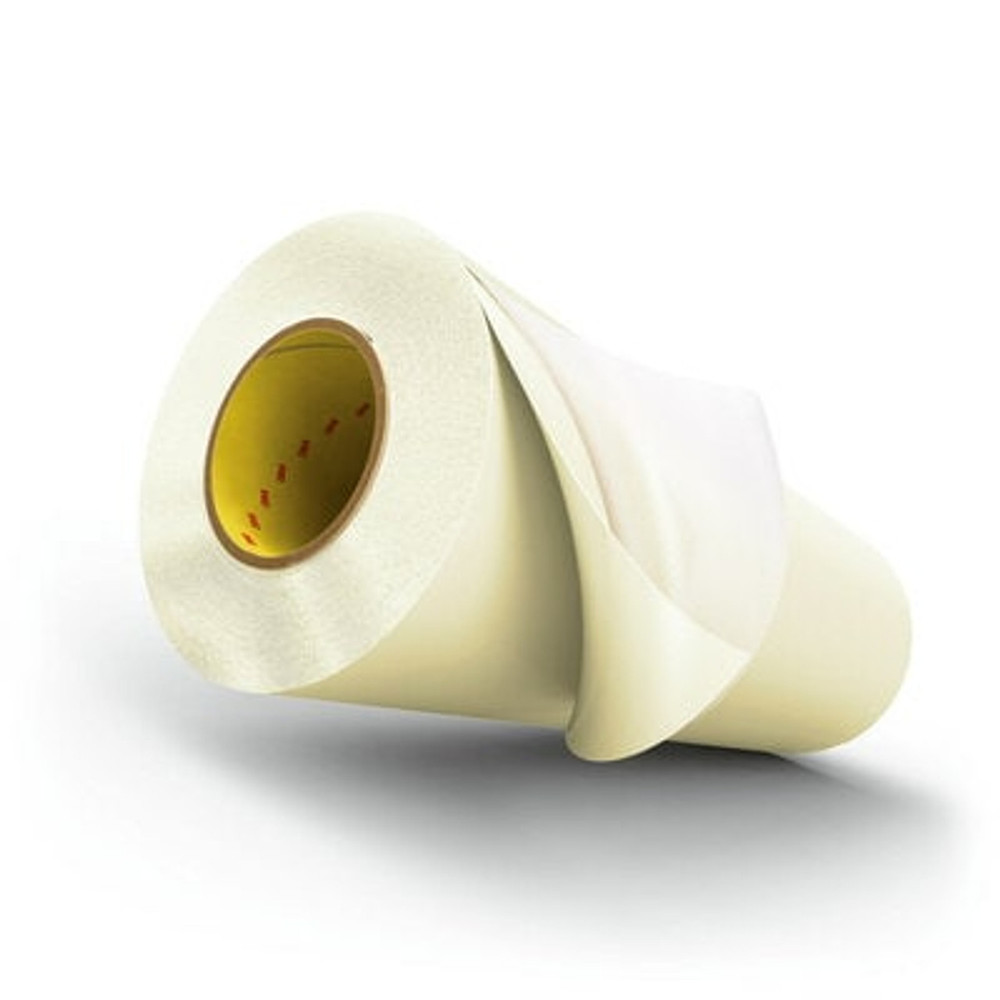

3M™ Cushion-Mount™ Plus Plate Mounting Tape E1020, White, 33 1/2 in x 36 yd, 20 mil, Roll - 7100366559

SKU: 7100366559
MPN: 7100366559
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00638060553701
3M ID: UU013526494
$1,872.96 each
Hurry up! Current stock:

Product Description

3M™ Cushion-Mount™ Plus Plate Mounting Tape E1020 with easy mount adhesive is designed for mounting flexographic print plates to cylinders or sleeves. This white foam mounting tape provides high quality standard combination print.

Features

  • 0.020 inch (0.51 mm) double coated foam tape has the air release feature with a plate side adhesive technology designed to remove with less force from flexographic print plates
  • Securely bonds the flexographic photopolymer plate to the print sleeve or steel cylinder to prevent plate edge lifting during printing
  • Print plates mounted on E1020 will have no air bubbles under the plate due to the air release feature designed into the tape
  • Grooves in the adhesive are created by a cross-hatch pattern from the release liner
  • Has a standard medium density foam that is ideal for printing combinations of solids and process with halftone dots
  • White foam color indicates the standard, medium density foam
Spec Sheet



Downloads

Specifications

Backing MaterialPolyethylene Foam
Country of OriginUnited States
ApplicationFlexographic Plate Mounting
Adhesive TypeDifferential Acrylate
Overall Width (Imperial)33.5
Primary Liner Thickness (Metric) UOMmm
Application Thickness (Metric)0.508
Print Quality (Series)10 Series
Overall Width (Imperial) UOMin
Warranty Period2 Years from Date of Manufacture
IndustriesPrint
Application Thickness (Metric) UOMmm
Primary Liner Thickness (Metric)0.11
Shelf Life730
Urethane SleevesYes
Product ColorWhite
Print QualityCombination Printing - Standard
Application Thickness (Imperial) UOMmil
Application Thickness (Imperial)20
Primary LinerPolycoated Polyester
Primary Liner Thickness (Imperial)4.5
Primary Liner Thickness (Imperial) UOMmil
