3M Products & Supplies

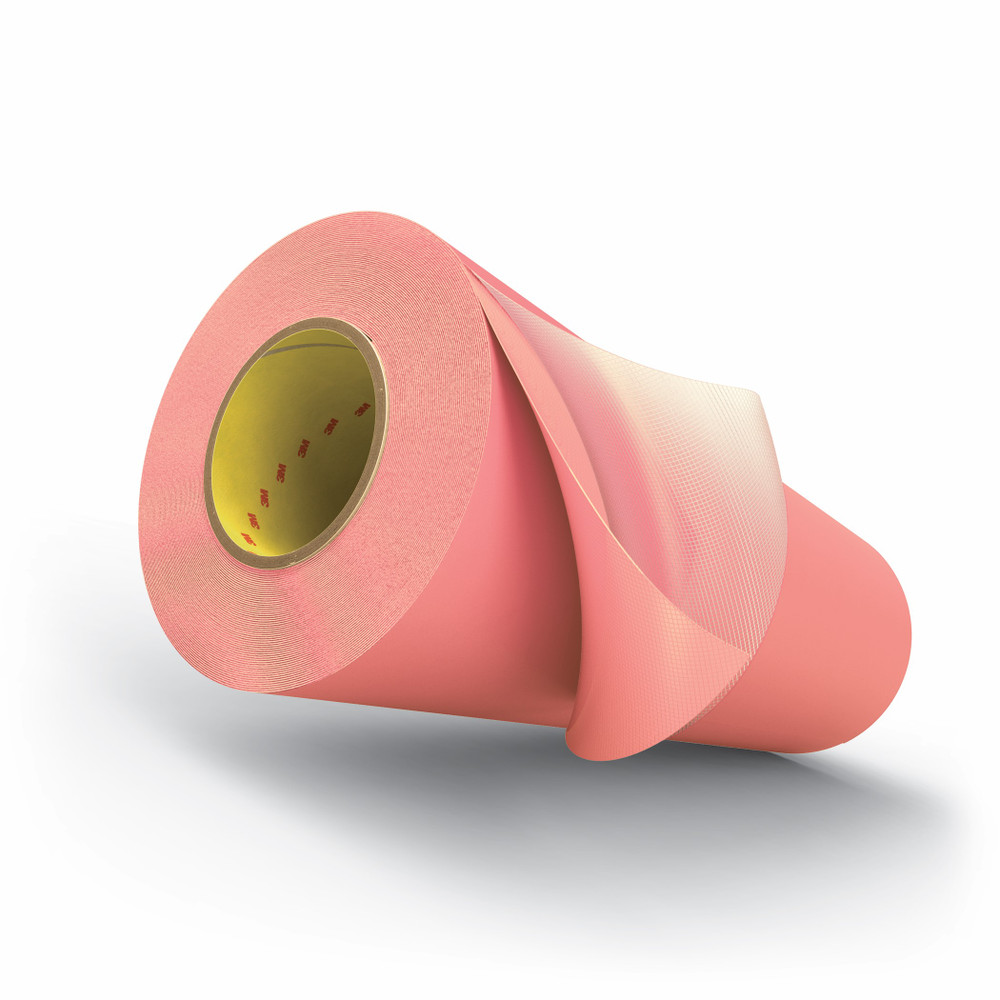

3M™ Cushion-Mount™ Plus Plate Mounting Tape E1215H, Orange, 13 in x 36 yd, 15 mil, 1 Roll/Case - 7100314506

SKU: 7100314506
MPN: 7100314506
Lead Time: 18 working days.
UPC: 00068060006080
3M ID: 70007559340
$653.94 each
Hurry up! Current stock:

Product Description

3M™ Cushion-Mount™ Plus Plate Mounting Tape E1215H with easy mount adhesive is designed for mounting flexographic print plates to cylinders or sleeves. This orange foam mounting tape provides high quality light combination print.

Features

  • 0.015 inch (0.38 mm) double coated foam tape has the air release feature with a plate side adhesive technology designed to resist edge lifting on flexographic print plates
  • Print plates mounted on E1215H will have no air bubbles under the plate due to the air release feature designed into the tape
  • Has higher plate side adhesion for challenging print conditions that use thick plates or small print sleeves
  • Securely bonds the flexographic photopolymer plate to the print sleeve or steel cylinder to prevent plate edge lifting during printing
  • Has a light density foam that is ideal for printing combinations of solids and process with halftone dots
  • Orange foam color indicates the light density foam
Spec Sheet



Downloads

Specifications

Shelf Life730
Country of OriginUnited States
Primary Liner Thickness (Metric) UOMmm
Warranty Period2 Years from Date of Manufacture
Total Tape Thickness without Liner (Imperial) UOMmil
Overall Width (Imperial)13.0
Overall Length (Imperial) UOMyd
Primary Liner Thickness (Metric)0.11
Total Tape Thickness without Liner (Imperial)15.0
Overall Length (Imperial)36.0
Primary Liner Thickness (Imperial) UOMmil
Application Thickness (Imperial) UOMmil
Print QualityCombination Printing - Light
Overall Width (Imperial) UOMin
Overall Width (Metric)330.2
Application Thickness (Imperial)15
Backing MaterialPolyethylene Foam
Primary LinerPolycoated Polyester
Overall Length (Metric)32.918
Overall Width (Metric) UOMmm
Application Thickness (Metric)0.381
Product ColorOrange
Print Quality (Series)12 Series
Overall Length (Metric) UOMm
Urethane SleevesYes
Application Thickness (Metric) UOMmm
Primary Liner Thickness (Imperial)4.5
Adhesive TypeDifferential Acrylate
IndustriesPrint
