3M Products & Supplies

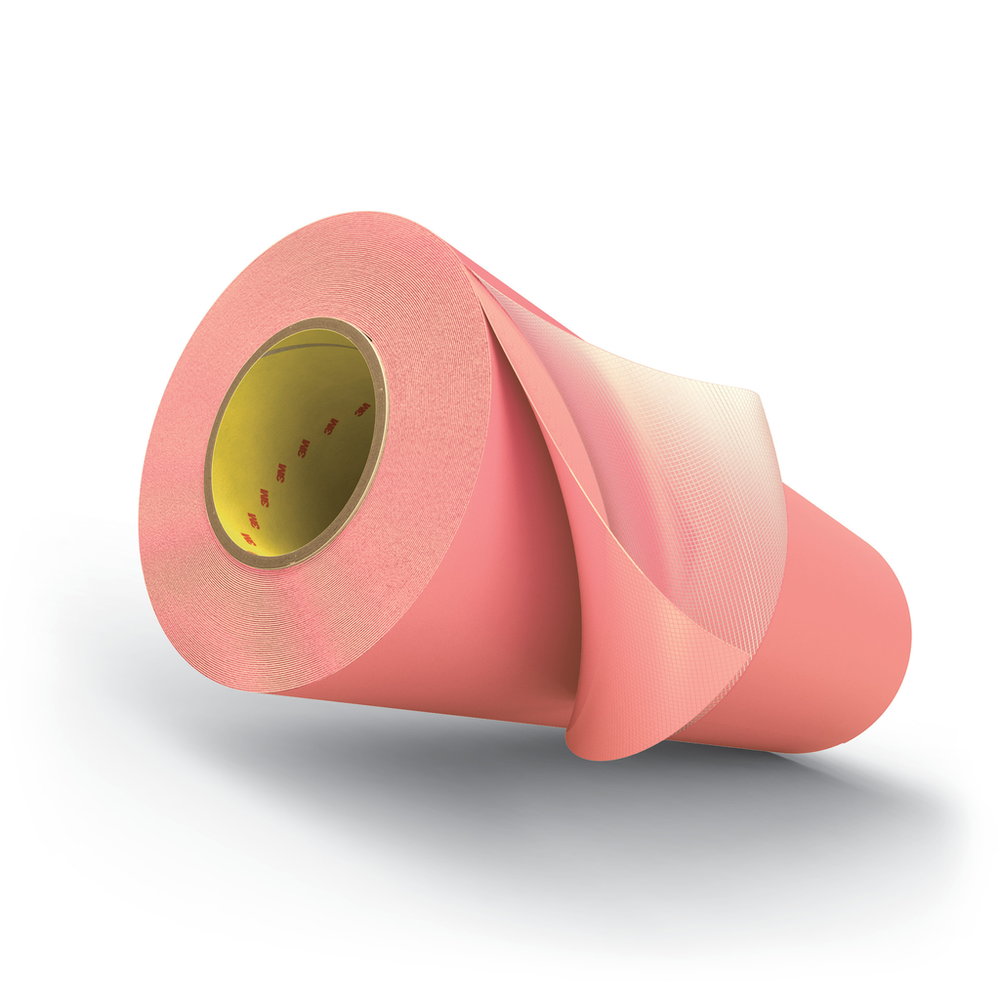

3M™ Cushion-Mount™ Plus Plate Mounting Tape E1215H, Orange, 54 in x 36 yd, 15 mil, 1 Roll/Case - 7100314580

SKU: 7100314580
MPN: 7100314580
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00068060006219
3M ID: 70007559324
$2,370.67 each
Hurry up! Current stock:

Product Description

3M™ Cushion-Mount™ Plus Plate Mounting Tape E1215H with easy mount adhesive is designed for mounting flexographic print plates to cylinders or sleeves. This orange foam mounting tape provides high quality light combination print.

Features

  • Orange foam color indicates the light density foam
  • Has a light density foam that is ideal for printing combinations of solids and process with halftone dots
  • Print plates mounted on E1215H will have no air bubbles under the plate due to the air release feature designed into the tape
  • Securely bonds the flexographic photopolymer plate to the print sleeve or steel cylinder to prevent plate edge lifting during printing
  • Has higher plate side adhesion for challenging print conditions that use thick plates or small print sleeves
  • 0.015 inch (0.38 mm) double coated foam tape has the air release feature with a plate side adhesive technology designed to resist edge lifting on flexographic print plates
Spec Sheet



Downloads

Specifications

Shelf Life730
Country of OriginUnited States
Overall Length (Imperial)36.0
Backing MaterialPolyethylene Foam
Application Thickness (Imperial) UOMmil
Application Thickness (Metric)0.381
Primary LinerPolycoated Polyester
Print QualityCombination Printing - Light
Warranty Period2 Years from Date of Manufacture
Print Quality (Series)12 Series
Overall Width (Metric) UOMmm
Adhesive TypeDifferential Acrylate
Urethane SleevesYes
IndustriesPrint
Overall Width (Imperial) UOMin
Overall Width (Imperial)54.0
Primary Liner Thickness (Imperial) UOMmil
Product ColorOrange
Primary Liner Thickness (Metric)0.11
Application Thickness (Metric) UOMmm
Primary Liner Thickness (Metric) UOMmm
Primary Liner Thickness (Imperial)4.5
Overall Length (Metric)32.918
Overall Width (Metric)1371.6
Application Thickness (Imperial)15
Overall Length (Imperial) UOMyd
Overall Length (Metric) UOMm
