3M Products & Supplies

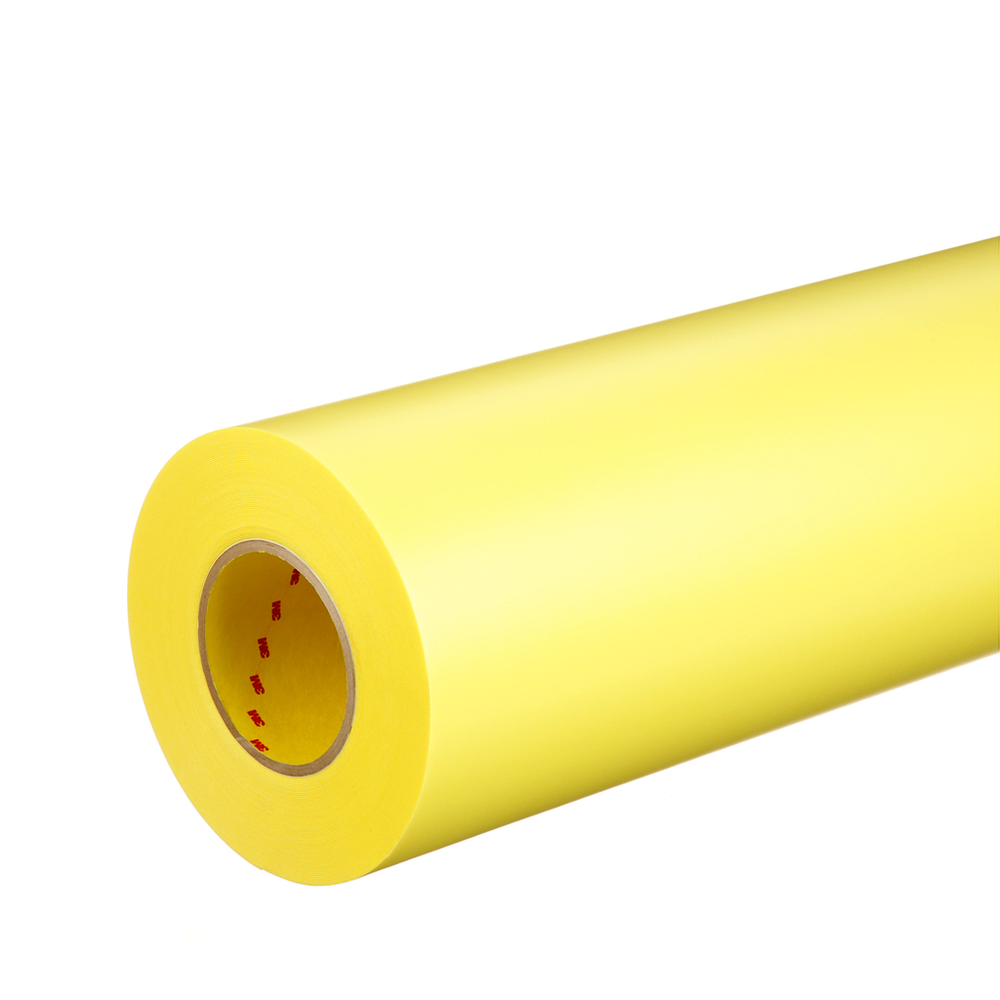

3M™ Cushion-Mount™ Plus Plate Mounting Tape E1320H, Yellow, 18 in x 36 yd, 20 mil, 1 Roll/Case - 7100314483

SKU: 7100314483
MPN: 7100314483
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00068060006042
3M ID: 70007559456
$915.00 each
Hurry up! Current stock:

Product Description

3M™ Cushion-Mount™ Plus Plate Mounting Tape E1320H with easy mount adhesive is designed for mounting flexographic print plates to cylinders or sleeves. This yellow foam mounting tape provides high quality medium soft combination print.

Features

  • Securely bonds the flexographic photopolymer plate to the print sleeve or steel cylinder to prevent plate edge lifting during printing
  • Yellow foam color indicates the medium soft density foam
  • Has a medium soft density foam that is ideal for printing combinations of solids and process with halftone dots
  • Print plates mounted on E1320H will have no air bubbles under the plate due to the air release feature designed into the tape
  • Has higher plate side adhesion for challenging print conditions that use thick plates or small print sleeves
  • 0.020 inch (0.51 mm) double coated foam tape has the air release feature with a plate side adhesive technology designed to resist edge lifting on flexographic print plates
Spec Sheet



Downloads

Specifications

Shelf Life730
Country of OriginUnited States
Overall Width (Imperial)18.0
Application Thickness (Metric) UOMmm
Primary Liner Thickness (Metric)0.11
Total Tape Thickness without Liner (Imperial) UOMmil
Print QualityCombination Printing - Medium Soft
Overall Width (Metric)457.2
Print Quality (Series)13 Series
Primary Liner Thickness (Imperial)4.5
IndustriesPrint
Application Thickness (Imperial) UOMmil
Overall Length (Imperial) UOMyd
Urethane SleevesYes
Primary Liner Thickness (Metric) UOMmm
Product ColorYellow
Warranty Period2 Years from Date of Manufacture
Overall Length (Metric) UOMm
Primary Liner Thickness (Imperial) UOMmil
Backing MaterialPolyethylene Foam
Total Tape Thickness without Liner (Imperial)20.0
Primary LinerPolycoated Polyester
Overall Width (Metric) UOMmm
Overall Length (Metric)32.918
Application Thickness (Imperial)20
Shelf Life UOMMonth
Adhesive TypeDifferential Acrylate
Clean RemovalYes
Overall Length (Imperial)36.0
Application Thickness (Metric)0.5
Overall Width (Imperial) UOMin
