3M Products & Supplies

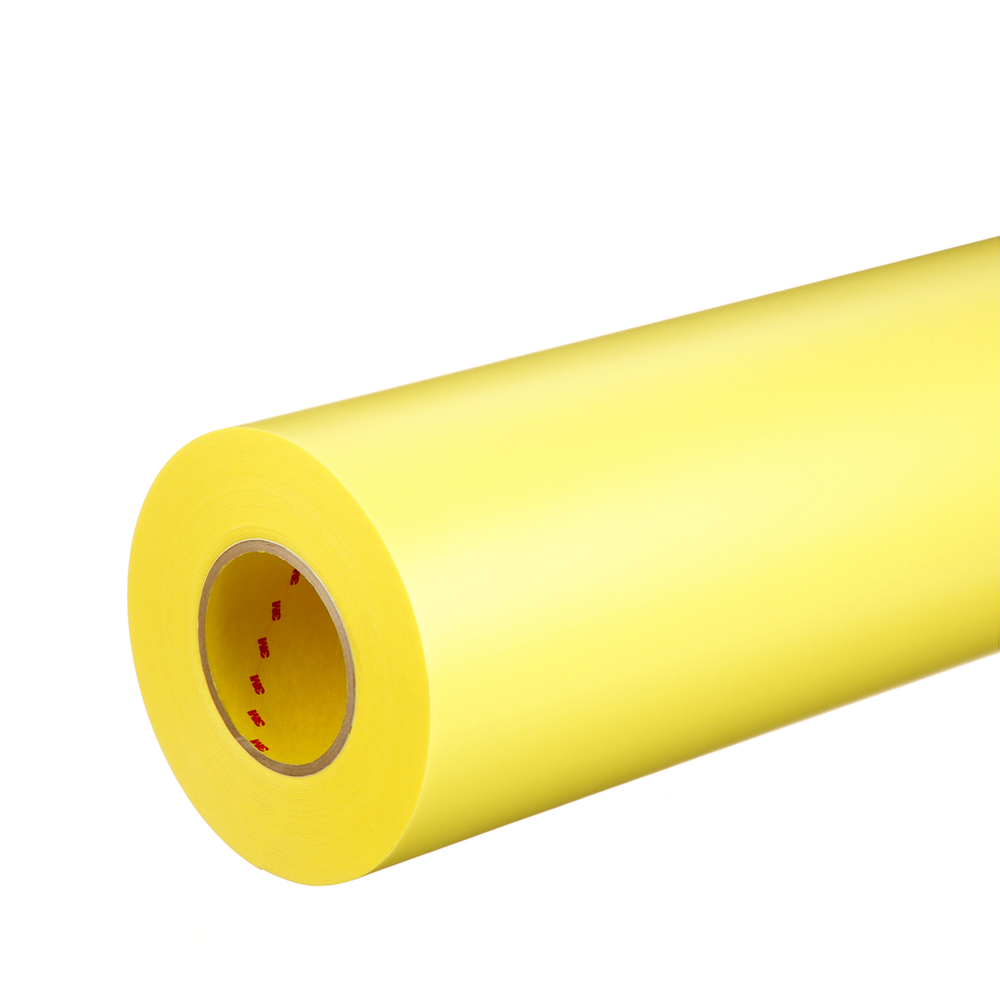

3M™ Cushion-Mount™ Plus Plate Mounting Tape E1320H, Yellow, 27 in x 36 yd, 20 mil, 1 Roll/Case - 7100314604

SKU: 7100314604
MPN: 7100314604
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00068060006073
3M ID: 70007559449
$1,372.50 each
Hurry up! Current stock:

Product Description

3M™ Cushion-Mount™ Plus Plate Mounting Tape E1320H with easy mount adhesive is designed for mounting flexographic print plates to cylinders or sleeves. This yellow foam mounting tape provides high quality medium soft combination print.

Features

  • Securely bonds the flexographic photopolymer plate to the print sleeve or steel cylinder to prevent plate edge lifting during printing
  • Print plates mounted on E1320H will have no air bubbles under the plate due to the air release feature designed into the tape
  • 0.020 inch (0.51 mm) double coated foam tape has the air release feature with a plate side adhesive technology designed to resist edge lifting on flexographic print plates
  • Has a medium soft density foam that is ideal for printing combinations of solids and process with halftone dots
  • Has higher plate side adhesion for challenging print conditions that use thick plates or small print sleeves
  • Yellow foam color indicates the medium soft density foam
Spec Sheet



Downloads

Specifications

Shelf Life730
Country of OriginUnited States
Primary Liner Thickness (Imperial)4.5
Adhesive TypeDifferential Acrylate
Application Thickness (Metric) UOMmm
Overall Length (Metric)32.918
Clean RemovalYes
Primary Liner Thickness (Metric) UOMmm
Shelf Life UOMMonth
Urethane SleevesYes
Product ColorYellow
Backing MaterialPolyethylene Foam
Application Thickness (Metric)0.5
Overall Width (Metric) UOMmm
Overall Length (Imperial) UOMyd
Print QualityCombination Printing - Medium Soft
Print Quality (Series)13 Series
Overall Width (Imperial)27.0
Overall Length (Imperial)36.0
Overall Width (Metric)685.8
Primary Liner Thickness (Metric)0.11
Overall Length (Metric) UOMm
IndustriesPrint
Warranty Period2 Years from Date of Manufacture
Overall Width (Imperial) UOMin
Primary LinerPolycoated Polyester
Application Thickness (Imperial) UOMmil
Application Thickness (Imperial)20
Primary Liner Thickness (Imperial) UOMmil
