3M Products & Supplies

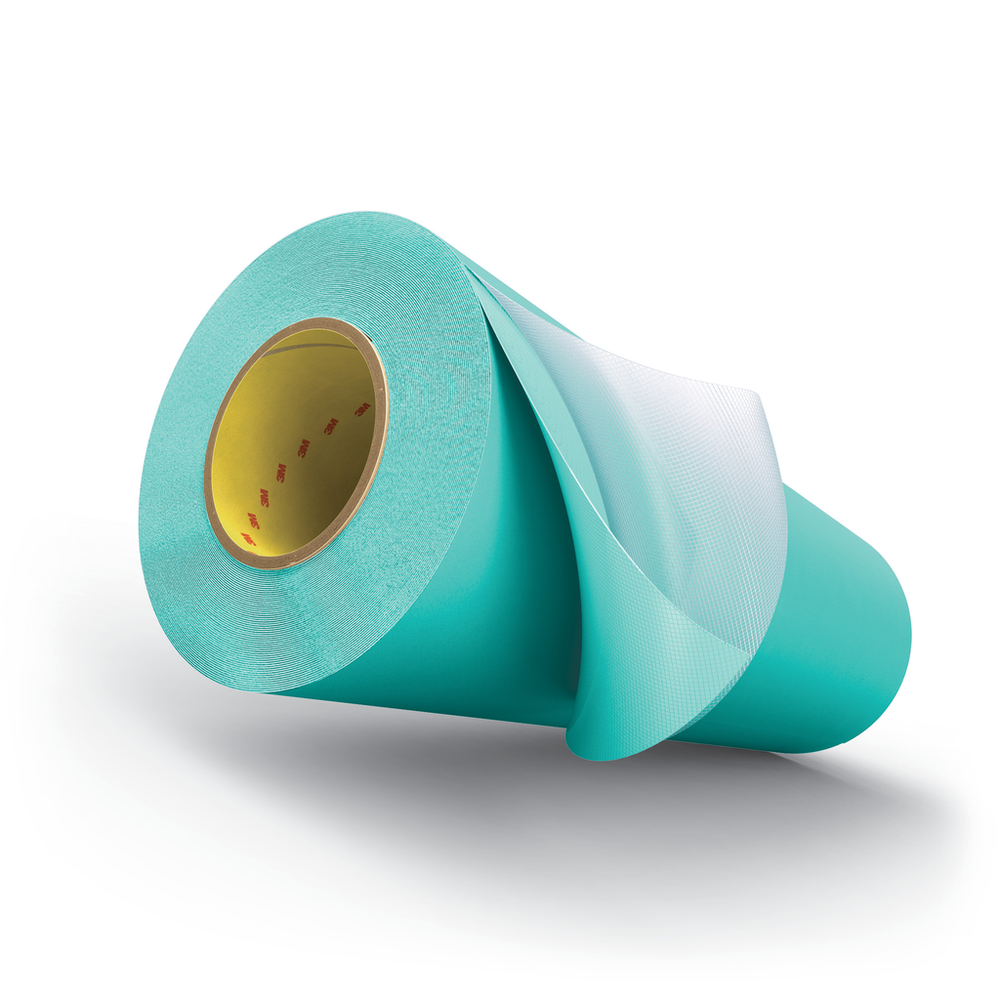

3M™ Cushion-Mount™ Plus Plate Mounting Tape E1720, Teal, 36 in x 36 yd, 20 mil, 1 Roll/Case - 7100312139

SKU: 7100312139
MPN: 7100312139
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00068060005427
3M ID: 70007558714
$1,922.50 each
Hurry up! Current stock:

Product Description

3M™ Cushion-Mount™ Plus Plate Mounting Tape E1720 with easy mount adhesive is designed for mounting flexographic print plates to cylinders or sleeves. This teal foam mounting tape provides high quality medium firm combination print.

Features

  • Print plates mounted on E1720 will have no air bubbles under the plate due to the air release feature designed into the tape
  • Has a medium firm density foam that is ideal for printing combinations of solids and process with halftone dots
  • Teal foam color indicates the medium firm density foam
  • 0.020 inch (0.51 mm) double coated foam tape has the air release feature with a plate side adhesive technology designed to remove with less force from flexographic print plates
  • Securely bonds the flexographic photopolymer plate to the print sleeve or steel cylinder to prevent plate edge lifting during printing
  • Grooves in the adhesive are created by a cross-hatch pattern from the release liner
Spec Sheet



Downloads

Specifications

Shelf Life730
Country of OriginUnited States
Backing MaterialPolyethylene Foam
Primary LinerPolycoated Polyester
Shelf Life UOMMonth
Overall Width (Imperial)36.0
Overall Length (Metric)32.918
IndustriesPrint
Overall Width (Imperial) UOMin
Adhesive TypeDifferential Acrylate
Overall Length (Imperial) UOMyd
Overall Width (Metric) UOMmm
Overall Length (Metric) UOMm
Overall Length (Imperial)36.0
Product ColorTeal
Overall Width (Metric)914.4
Application Thickness (Metric) UOMmm
Application Thickness (Imperial)20
Print QualityCombination Printing - Medium Firm
Primary Liner Thickness (Metric) UOMmm
Urethane SleevesYes
Application Thickness (Metric)0.5
Print Quality (Series)17 Series
Primary Liner Thickness (Metric)0.11
Warranty Period2 Years from Date of Manufacture
Clean RemovalYes
Application Thickness (Imperial) UOMmil
