3M Products & Supplies

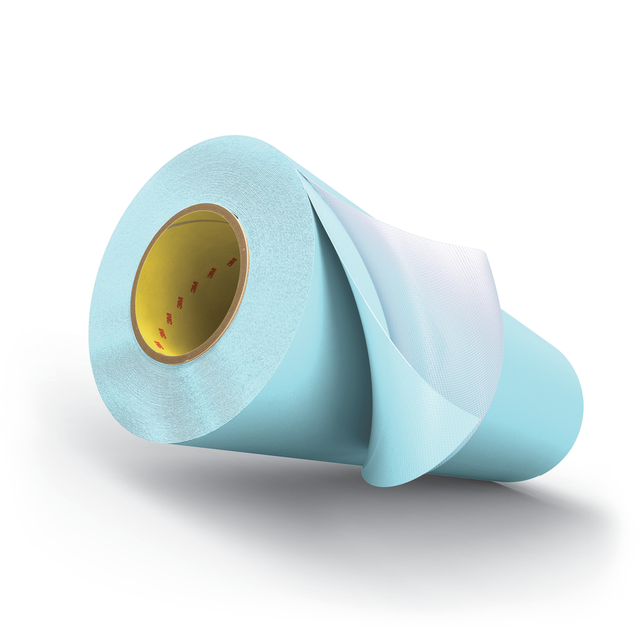

3M™ Cushion-Mount™ Plus Plate Mounting Tape E1815H, Blue, 54 in x 36 yd, 15 mil, 1 Roll/Case - 7100314494

SKU: 7100314494
MPN: 7100314494
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00068060005694
3M ID: 70007559597
$2,743.95 each
Hurry up! Current stock:

Product Description

3M™ Cushion-Mount™ Plus Plate Mounting Tape E1815H with easy mount adhesive is designed for mounting flexographic print plates to cylinders or sleeves. This blue foam mounting tape provides high quality firm combination print.

Features

  • Has higher plate side adhesion for challenging print conditions that use thick plates or small print sleeves
  • Blue foam color indicates the firm density foam
  • Has a firm density foam that is ideal for printing combinations of solids and process with halftone dots
  • Securely bonds the flexographic photopolymer plate to the print sleeve or steel cylinder to prevent plate edge lifting during printing
  • 0.015 inch (0.38 mm) double coated foam tape has the air release feature with a plate side adhesive technology designed to resist edge lifting on flexographic print plates
  • Print plates mounted on E1815H will have no air bubbles under the plate due to the air release feature designed into the tape
Spec Sheet



Downloads

Specifications

Shelf Life730
Country of OriginUnited States
Urethane SleevesYes
Print QualityCombination Printing - Firm
Primary LinerPolycoated Polyester
Primary Liner Thickness (Imperial) UOMmil
Overall Length (Imperial) UOMyd
Warranty Period2 Years from Date of Manufacture
Backing MaterialPolyethylene Foam
Application Thickness (Metric)0.381
Primary Liner Thickness (Imperial)4.5
IndustriesPrint
Overall Width (Imperial) UOMin
Print Quality (Series)18 Series
Clean RemovalYes
Overall Length (Metric)32.918
Application Thickness (Metric) UOMmm
Overall Length (Metric) UOMm
Overall Length (Imperial)36.0
Application Thickness (Imperial) UOMmil
Shelf Life UOMMonth
Overall Width (Imperial)54.0
Overall Width (Metric) UOMmm
Adhesive TypeDifferential Acrylate
Overall Width (Metric)1371.6
Primary Liner Thickness (Metric) UOMmm
Primary Liner Thickness (Metric)0.11
Product ColorBlue
Application Thickness (Imperial)15
