3M Products & Supplies

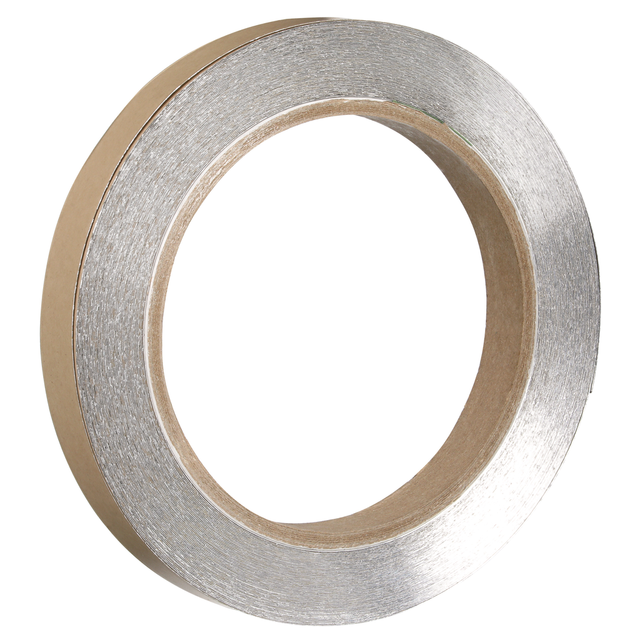

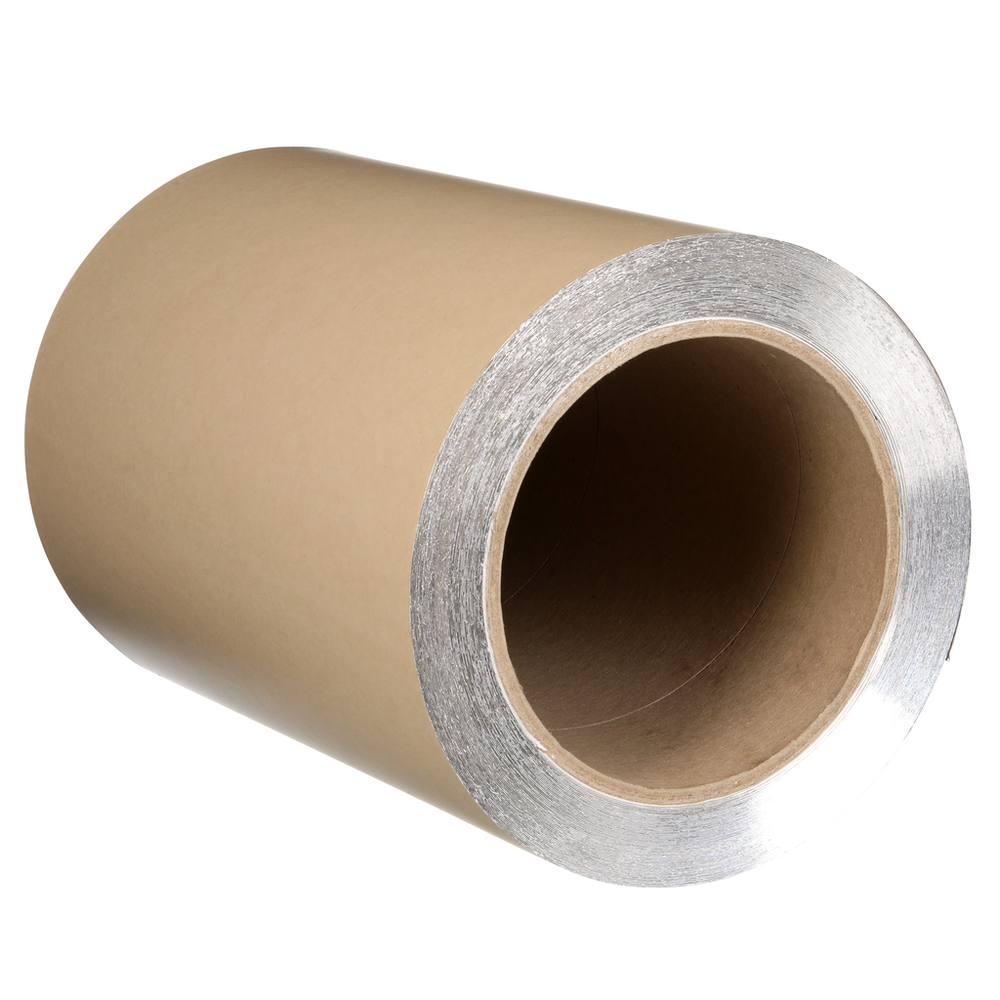

3M™ Damping Foil 2552, Silver, 12 in x 36 yd, 10 mil, Roll - 7010535983

SKU: 7010535983
MPN: 7010535983
Made to Order: For a lead time estimate, please send your request to [email protected]
3M ID: CY998787451
5 Digit UPC: #VALUE!
$1,123.07 each
Hurry up! Current stock:

Product Description

3M™ Damping Foil Tape 2552 is constructed of a dead soft aluminum foil constraining layer and coated with a pressure sensitive, viscoelastic acrylic polymer adhesive. This unique construction provides the ability to control resonant vibrations in a variety of applications and across a broad spectrum of temperatures.

Features

  • Controls resonant vibrations through temperatures ranging from -25°F/-32°C to 175°F/80°C with peak damping from 32°F/0°C to 140°F/60°C
  • Viscoelastic acrylic polymer adhesive is optimized to convert vibrational energy to negligible heat that readily dissipates
  • Withstands exposure to weathering, moisture and UV
  • Dead soft aluminum foil is designed to damp vibrations in panels and supports
  • Meets flame retardancy requirements of F.A.R. 25.853(a) and can pass ASTM E-162 and ASTM-E 662 for flammability and smoke generation
  • Linered for die-cutting applications
Spec Sheet



Downloads

Specifications

Shelf Life730
Country of OriginUnited States
Overall Length (Metric)32.91
Maximum Operating Temperature (Fahrenheit) UOMDegree
Backing (Carrier) Thickness (Metric) UOMmm
Tensile Strength (Imperial) UOMoz/in
Backing (Carrier) Thickness (Imperial)10.0
Overall Length (Imperial) UOMyd
Backing MaterialAluminum Foil
Overall Width (Metric) UOMcm
Backing (Carrier) Thickness (Imperial) UOMmil
Primary LinerPolycoated Paper
Overall Length (Imperial)36.0
Minimum Operating Temperature (Fahrenheit) UOMDegree
Backing (Carrier) Thickness (Metric)0.25
Overall Width (Imperial)12.0
Total Tape Thickness without Liner (Imperial) UOMmil
Tensile Strength (Metric)220.7
Maximum Operating Temperature (Fahrenheit)175.0
Maximum Operating Temperature (Celsius)80.0
Tensile Strength (Metric) UOMN/100mm
ApplicationVibration Damping
Back Side Adhesive Thickness (Imperial) UOMmil
Backing (Carrier) MaterialAluminum
Specifications MetASTM E-162, ASTM E-662, FAR 25.853(a)
Total Tape Thickness without Liner (Imperial)15.0
Total Tape Thickness without Liner (Metric)0.38
Total Tape Thickness without Liner (Metric) UOMmm
Overall Width (Metric)30.48
Overall Width (Imperial) UOMin
Tensile Strength (Imperial)2016.0
Overall Length (Metric) UOMm
Product ColorSilver
Back Side Adhesive Thickness (Imperial)5.0
Minimum Operating Temperature (Celsius) UOMDegree
Minimum Operating Temperature (Fahrenheit)-25.0
Minimum Operating Temperature (Celsius)-32.0
Elongation at Break12
Maximum Operating Temperature (Celsius) UOMDegree
IndustriesAerospace, Appliance, Automotive, Construction, Electronics, Food and Beverage, General Industrial, Metalworking, Military and Government, Paper, Specialty Vehicles, Transportation
