3M Products & Supplies

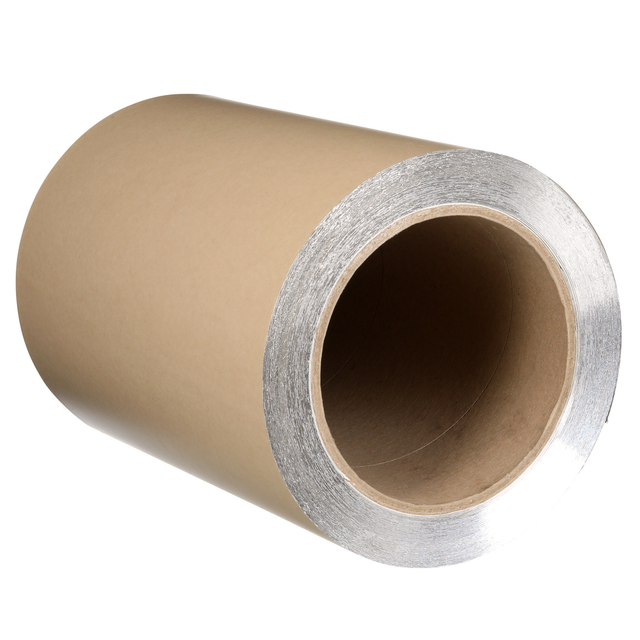

3M™ Damping Foil 2552, Silver, 6 in x 36 yd, 10 mil, Roll - 7010536048

SKU: 7010536048
MPN: 7010536048
Made to Order: For a lead time estimate, please send your request to [email protected]
3M ID: CY998788103
5 Digit UPC: #VALUE!
$561.54 each
Hurry up! Current stock:

Product Description

3M™ Damping Foil Tape 2552 is constructed of a dead soft aluminum foil constraining layer and coated with a pressure sensitive, viscoelastic acrylic polymer adhesive. This unique construction provides the ability to control resonant vibrations in a variety of applications and across a broad spectrum of temperatures.

Features

  • Withstands exposure to weathering, moisture and UV
  • Linered for die-cutting applications
  • Controls resonant vibrations through temperatures ranging from -25°F/-32°C to 175°F/80°C with peak damping from 32°F/0°C to 140°F/60°C
  • Meets flame retardancy requirements of F.A.R. 25.853(a) and can pass ASTM E-162 and ASTM-E 662 for flammability and smoke generation
  • Dead soft aluminum foil is designed to damp vibrations in panels and supports
  • Viscoelastic acrylic polymer adhesive is optimized to convert vibrational energy to negligible heat that readily dissipates
Spec Sheet



Downloads

Specifications

Shelf Life730
Country of OriginUnited States
Specifications MetASTM E-162, ASTM E-662
IndustriesAerospace, Appliance, Automotive, Construction, Electronics, Food and Beverage, General Industrial, Metalworking, Military and Government, Paper, Specialty Vehicles, Transportation
Total Tape Thickness without Liner (Metric) UOMmm
Elongation at Break12
Backing (Carrier) Thickness (Metric)0.25
Primary LinerPolycoated Paper
Total Tape Thickness without Liner (Imperial) UOMmil
Overall Width (Imperial)6.0
Overall Length (Imperial)36.0
Total Tape Thickness without Liner (Metric)0.38
Maximum Operating Temperature (Fahrenheit) UOMDegree
Tensile Strength (Imperial) UOMoz/in
Maximum Operating Temperature (Fahrenheit)175.0
Overall Length (Metric)32.91
Maximum Operating Temperature (Celsius) UOMDegree
Minimum Operating Temperature (Fahrenheit) UOMDegree
Overall Length (Imperial) UOMyd
Tensile Strength (Metric) UOMN/100mm
Backing (Carrier) MaterialAluminum
Total Tape Thickness without Liner (Imperial)15.0
Minimum Operating Temperature (Celsius)-32.0
Backing (Carrier) Thickness (Imperial)10.0
Back Side Adhesive Thickness (Imperial)5.0
Overall Width (Metric) UOMmm
Minimum Operating Temperature (Fahrenheit)-25.0
Tensile Strength (Imperial)2016.0
Tensile Strength (Metric)220.7
Maximum Operating Temperature (Celsius)80.0
Backing MaterialAluminum Foil
Back Side Adhesive Thickness (Imperial) UOMmil
Minimum Operating Temperature (Celsius) UOMDegree
Overall Width (Imperial) UOMin
Backing (Carrier) Thickness (Metric) UOMmm
Backing (Carrier) Thickness (Imperial) UOMmil
Overall Width (Metric)152.4
Overall Length (Metric) UOMm
ApplicationVibration Damping
