3M Products & Supplies

3M™ Diamond Lapping Film 661X, 30.0 Micron Roll, 2 in x 50 ft x 3 in ASO, 1/Case - 7000118210

SKU: 7000118210
MPN: 7000118210
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051111698334
3M ID: 60020010702
5 Digit UPC: 69833
$789.27 each
Hurry up! Current stock:

Product Description

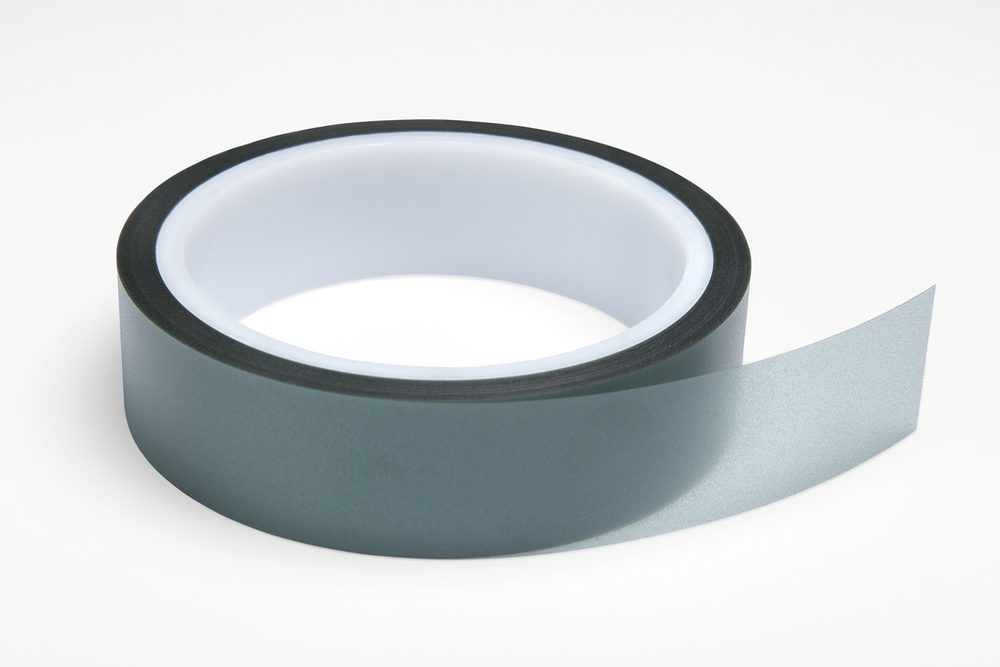

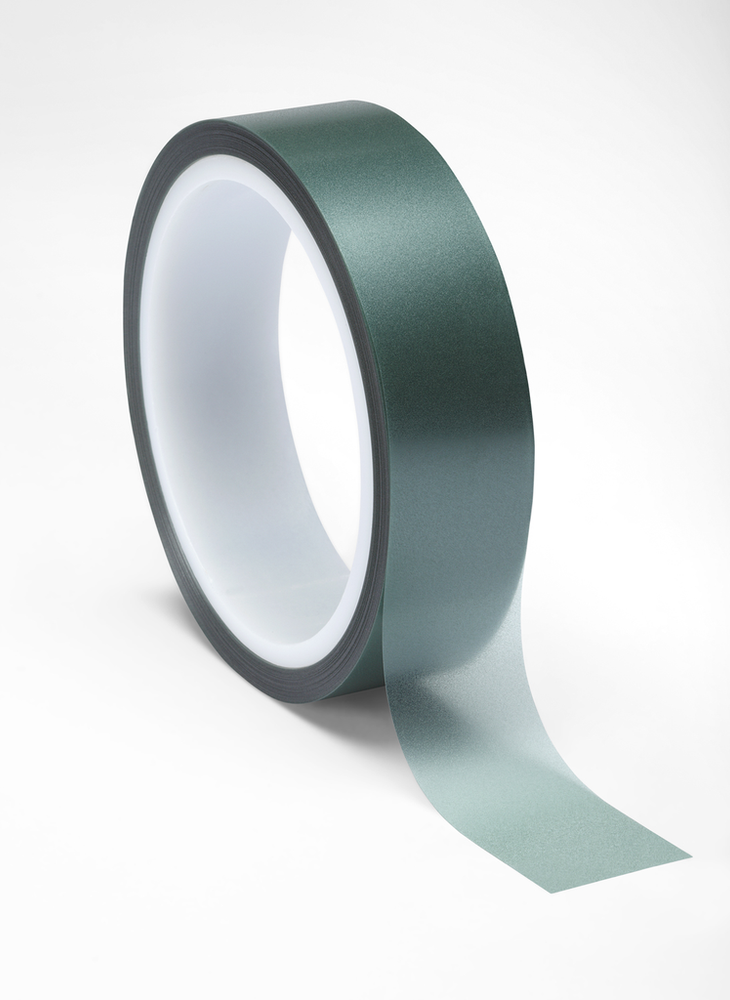

3M™ Diamond Lapping Film Roll 661X is made from precisely graded diamond particles coated on a polyester film. 3M film 661X provides a consistent, repeatable finish on extremely hard materials while delivering fast cut and increased throughput.

Features

  • Flatter surface and sharp edges
  • Fast cut, increased throughput
  • Uniform finish
  • Most widely used diamond lapping film
  • Available in discs, sheets and rolls
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Attachment TypePlain Back
Abrasive MaterialDiamond
Backing Thickness (Metric)0.076
Overall Length (Imperial) UOMft
Backing Thickness (Imperial)3.0
Micron Grade30 μm
Overall Width (Imperial)2.0
Overall Length (Imperial)50.0
Overall Width (Imperial) UOMin
Overall Width (Metric)50.8
Product UsageFiber Optic Connectors
Overall Width (Metric) UOMmm
Center Hole Diameter (Metric)0.0
Product Series661X
Overall Length (Metric) UOMm
Overall Diameter (Metric)0.0
Backing MaterialPolyester Film
SubstrateCarbide; Ceramic; Composite; Exotic Alloy; Glass; Quartz; Sapphire; Stone
Overall Diameter (Imperial)0.0
Specifications MetRoHS 2011/65/EU
ApplicationFlat Lapping; Polishing; Superfinishing
Backing Thickness (Metric) UOMmm
Product ColorGreen
Overall Length (Metric)15.24
Center Hole Diameter (Imperial)0.0
Backing Thickness (Imperial) UOMmil
Product FormRoll
