3M Products & Supplies

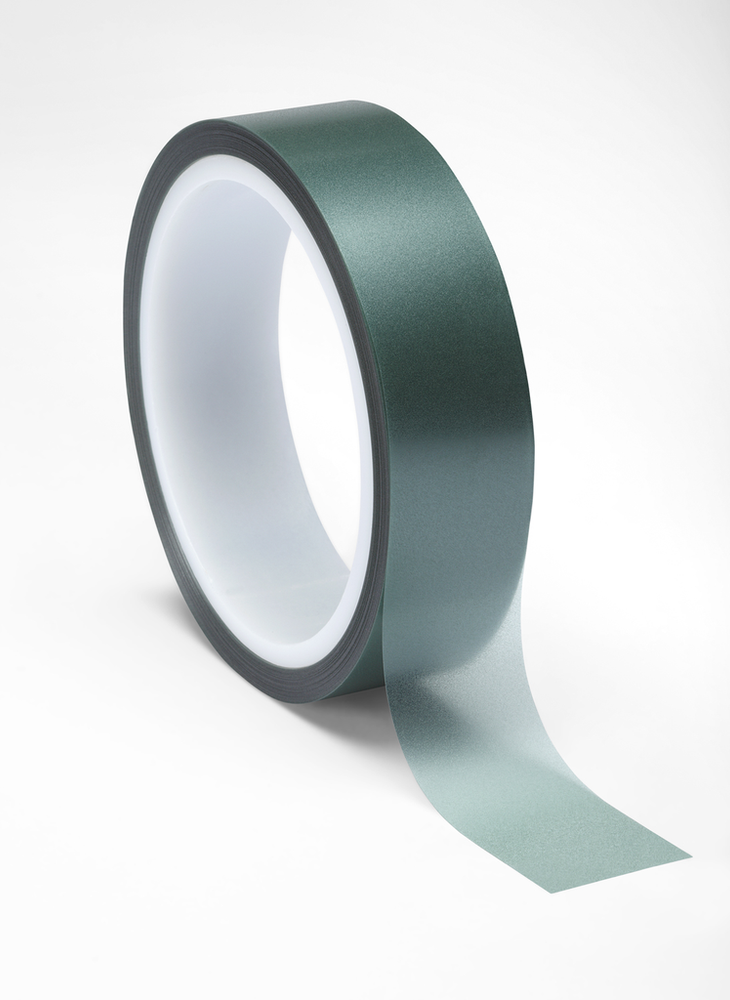

3M™ Diamond Lapping Film 661X, 30.0 Micron Roll, 4 in x 150 ft x 3 in ASO, 1/Case - 7000000306

SKU: 7000000306
MPN: 7000000306
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051111499665
3M ID: 60070008440
5 Digit UPC: 49966
$4,589.35 each
Hurry up! Current stock:

Product Description

3M™ Diamond Lapping Film Roll 661X is made from precisely graded diamond particles coated on a polyester film. 3M film 661X provides a consistent, repeatable finish on extremely hard materials while delivering fast cut and increased throughput.

Features

  • Fast cut, increased throughput
  • Uniform finish
  • Available in discs, sheets and rolls
  • Flatter surface and sharp edges
  • Most widely used diamond lapping film
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Center Hole Diameter (Imperial)0.0
Overall Length (Metric)45.72
Micron Grade30 μm
Overall Length (Imperial) UOMft
Center Hole Diameter (Metric)0.0
Attachment TypePlain Back
Overall Length (Imperial)150.0
Abrasive MaterialDiamond
Backing Thickness (Metric)0.076
Backing Thickness (Metric) UOMmm
Specifications MetRoHS 2011/65/EU
Backing Thickness (Imperial)3.0
Backing MaterialPolyester Film
Product Series661X
Overall Width (Metric) UOMmm
Backing Thickness (Imperial) UOMmil
SubstrateCarbide; Ceramic; Composite; Exotic Alloy; Glass; Quartz; Sapphire; Stone
ApplicationFlat Lapping; Polishing; Superfinishing
Product UsageFiber Optic Connectors
Overall Width (Imperial) UOMin
Overall Width (Imperial)4.0
Overall Width (Metric)101.6
Product FormRoll
Product ColorGreen
Overall Diameter (Imperial)0.0
Overall Diameter (Metric)0.0
Overall Length (Metric) UOMm
