3M Products & Supplies

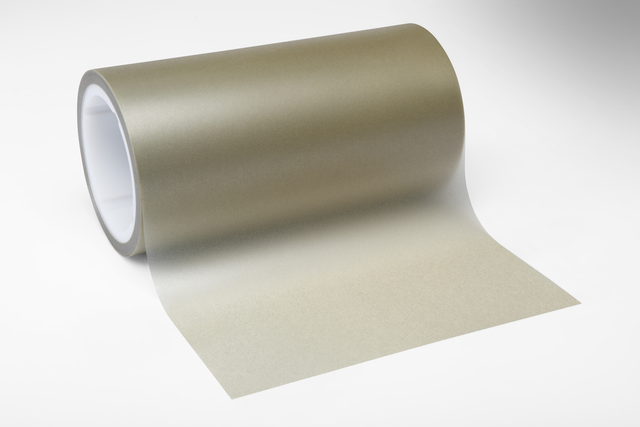

3M™ Diamond Lapping Film 663X, 60 Micron Roll, 4 in x 50 ft x 3 in - 7100167017

SKU: 7100167017
MPN: 7100167017
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051128847954
3M ID: 60000602429
5 Digit UPC: 84795
$2,134.25 each
Hurry up! Current stock:

Product Description

3M™ Diamond Lapping Film 663X has a stronger resin system that gives this product added toughness and longer life. Used primarily in superfinishing, roll polishing, and flat lapping applications. Available in 30.0, 45.0, and 60.0 micron grades.

Features

  • Fast cut
  • Uniform finish
  • Flat surface, low rounding
  • Long abrasive life minimizes abrasive changes
  • Increased durability
  • Available in rolls, discs and sheets
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Backing Thickness (Imperial)3.0
Overall Width (Imperial)4.0
Overall Diameter (Imperial)0.0
Backing MaterialPolyester Film
ApplicationFlat Lapping; Polishing; Superfinishing
Overall Width (Metric)101.6
Center Hole Diameter (Imperial)0.0
Backing Thickness (Imperial) UOMmil
Overall Width (Metric) UOMmm
Backing Thickness (Metric)0.076
Center Hole Diameter (Metric)0.0
Overall Length (Metric)15.24
Product UsageFiber Optic Connectors
Overall Length (Metric) UOMm
Product Series663X
Overall Length (Imperial) UOMft
Product FormRoll
Product ColorBrown
SubstrateCarbide; Ceramic; Composite; Exotic Alloy; Glass; Hardened Metal; Stone
Backing Thickness (Metric) UOMmm
Micron Grade60 μm
Attachment TypePlain Back
Overall Diameter (Metric)0.0
Abrasive MaterialDiamond
Overall Length (Imperial)50.0
Overall Width (Imperial) UOMin
