3M Products & Supplies

3M™ Double Coated Polyester Tape 442KW, 3/4 in x 36 yds - 7100171705

Sold As: 48-Pack
SKU: 7100171705
MPN: 7100171705
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051115531224
3M ID: 70006462058
5 Digit UPC: 53122
$2,617.20 ($54.52 / Count)
Hurry up! Current stock:

Product Description

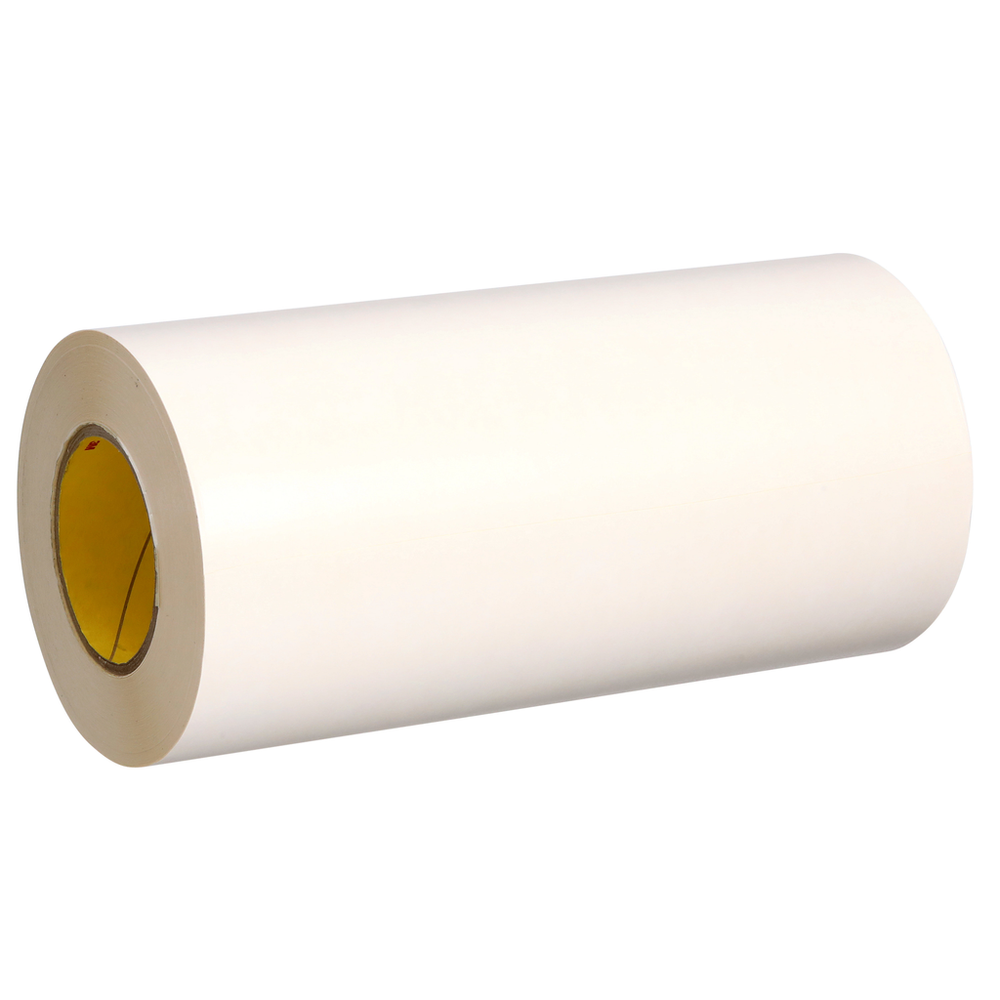

3M™ Double Coated Polyester Tape 442KW is a double sided tape featuring a rubber based adhesive, ideal for laminated bonding with semiconductor CMP polishing pads and clean removal from platens. A thin polyester (PET) film carrier helps the adhesive bond firmly to both platen and pad. A polycoated paper release liner provides excellent dimensional stability.

Features

  • Release liner adds dimensional stability for fast and efficient conversion
  • Rubber based adhesive provides fast, reliable bonding strength and removes cleanly
  • Adhesive is applied to film carrier on both sides for effective lamination to pads and clean removal from platens
  • Attaches polishing pads to platens for chemical mechanical planarization (CMP) in semiconductor manufacturing
  • Also applicable for polishing pad attachment to platens in HDD and glass manufacturing
  • Polyester carrier film helps improve handling for uniform application

Specifications

Shelf Life548
Country of OriginUnited States
Maximum Operating Temperature (Fahrenheit)100.0
Total Tape Thickness without Liner (Imperial)4.0
Backing (Carrier) Thickness (Imperial) UOMmil
Overall Width (Imperial)0.75
Shelf Life UOMMonth
Maximum Operating Temperature (Celsius)38.0
Primary Liner Thickness (Metric)0.142
Overall Width (Imperial) UOMin
Back Side Adhesive Thickness (Metric)0.038
IndustriesElectronics
Backing (Carrier) Thickness (Imperial)1.0
Backing (Carrier) Thickness (Metric) UOMmm
Elongation at Break UOMPertinent
Overall Length (Metric)32.918
Backing (Carrier) MaterialPolyester
Total Tape Thickness without Liner (Metric)0.102
Back Side Adhesive Thickness (Imperial) UOMmil
Face Side Adhesive Thickness (Imperial)1.5
Face Side Adhesive Thickness (Metric)0.038
Primary Liner Thickness (Imperial)5.6
Primary Liner Thickness (Metric) UOMmm
Overall Width (Metric)19.05
Maximum Operating Temperature (Celsius) UOMDegree
Minimum Operating Temperature (Fahrenheit)50.0
Backing (Carrier) Thickness (Metric)0.025
Units per Case1.0
Product ColorOff-white
Adhesive TypeNatural Rubber
Minimum Operating Temperature (Fahrenheit) UOMDegree
Overall Length (Metric) UOMm
Face Side Adhesive Thickness (Metric) UOMmm
Number of Adhesive SidesSingle-sided
Primary Liner ColorWhite
Overall Length (Imperial)36.0
Overall Width (Metric) UOMmm
Indoor/OutdoorIndoor
Maximum Operating Temperature (Fahrenheit) UOMDegree
Face Side Adhesive Thickness (Imperial) UOMmil
Tensile Strength (Imperial)0.0
Tensile Strength (Metric)0.0
Overall Length (Imperial) UOMyd
Primary Liner Thickness (Imperial) UOMmil
Total Tape Thickness without Liner (Metric) UOMmm
Minimum Operating Temperature (Celsius) UOMDegree
Minimum Operating Temperature (Celsius)10.0
Back Side Adhesive Thickness (Imperial)1.5
ApplicationAttaching; Bonding; CMP; Laminating
Total Tape Thickness without Liner (Imperial) UOMmil
Back Side Adhesive Thickness (Metric) UOMmm
