3M Products & Supplies

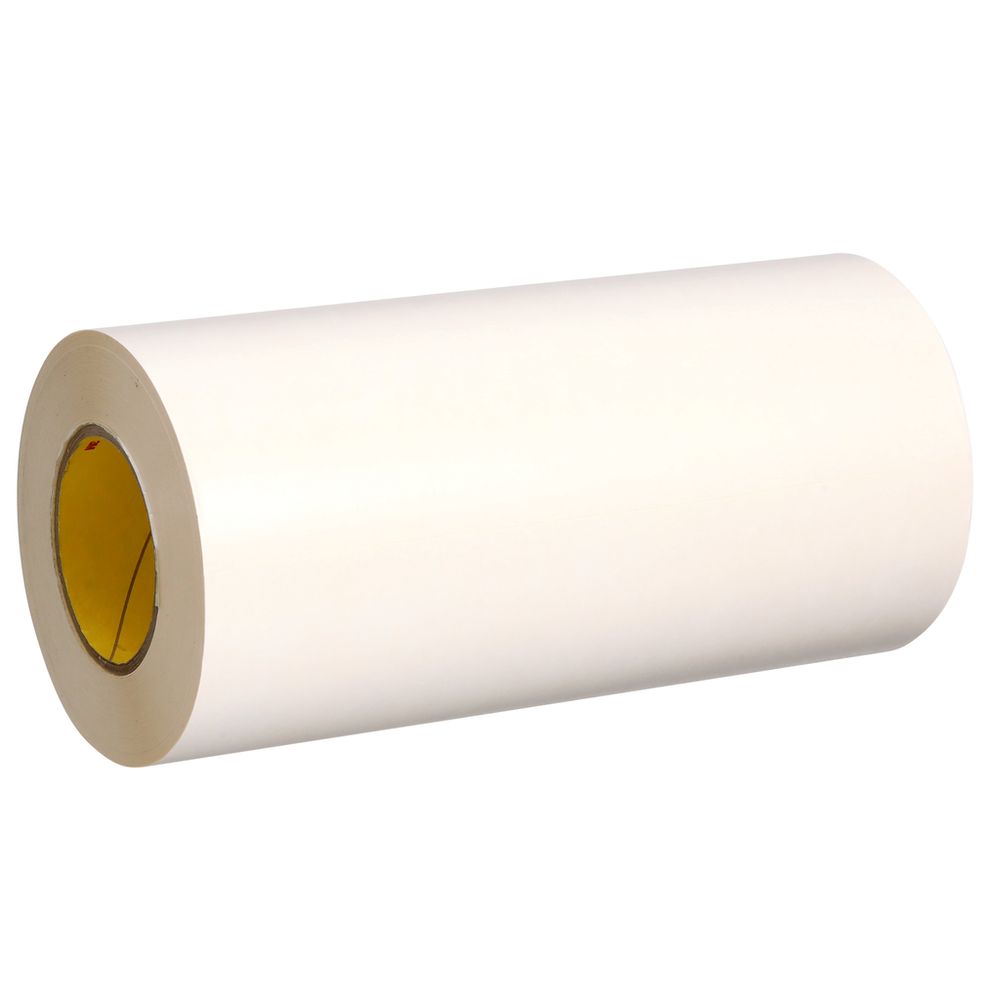

3M™ Double Coated Polyester Tape 442KW, 1 in x 36 yds - 7100171713

Sold As: 36-Pack
SKU: 7100171713
MPN: 7100171713
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051115531248
3M ID: 70006462074
5 Digit UPC: 53124
$2,452.76 ($68.13 / Count)
Hurry up! Current stock:

Product Description

3M™ Double Coated Polyester Tape 442KW is a double sided tape featuring a rubber based adhesive, ideal for laminated bonding with semiconductor CMP polishing pads and clean removal from platens. A thin polyester (PET) film carrier helps the adhesive bond firmly to both platen and pad. A polycoated paper release liner provides excellent dimensional stability.

Features

  • Release liner adds dimensional stability for fast and efficient conversion
  • Adhesive is applied to film carrier on both sides for effective lamination to pads and clean removal from platens
  • Also applicable for polishing pad attachment to platens in HDD and glass manufacturing
  • Rubber based adhesive provides fast, reliable bonding strength and removes cleanly
  • Attaches polishing pads to platens for chemical mechanical planarization (CMP) in semiconductor manufacturing
  • Polyester carrier film helps improve handling for uniform application

Specifications

Shelf Life548
Country of OriginUnited States
Backing (Carrier) Thickness (Metric)0.025
Primary Liner Thickness (Imperial)5.6
Product ColorOff-white
Face Side Adhesive Thickness (Metric) UOMmm
Tensile Strength (Imperial)0.0
Face Side Adhesive Thickness (Imperial) UOMmil
Backing (Carrier) Thickness (Metric) UOMmm
Minimum Operating Temperature (Fahrenheit)50.0
Shelf Life UOMMonth
Units per Case1.0
Minimum Operating Temperature (Fahrenheit) UOMDegree
Backing (Carrier) Thickness (Imperial)1.0
Backing (Carrier) Thickness (Imperial) UOMmil
Maximum Operating Temperature (Celsius) UOMDegree
Maximum Operating Temperature (Celsius)38.0
Primary Liner ColorWhite
Overall Width (Imperial)1.0
Overall Length (Imperial) UOMyd
Back Side Adhesive Thickness (Metric) UOMmm
Elongation at Break UOMPertinent
Maximum Operating Temperature (Fahrenheit) UOMDegree
Minimum Operating Temperature (Celsius) UOMDegree
Total Tape Thickness without Liner (Metric) UOMmm
Overall Length (Metric)32.918
Overall Width (Metric) UOMmm
Maximum Operating Temperature (Fahrenheit)100.0
Primary Liner Thickness (Metric)0.142
Face Side Adhesive Thickness (Metric)0.038
Adhesive TypeNatural Rubber
IndustriesElectronics
Back Side Adhesive Thickness (Imperial) UOMmil
Face Side Adhesive Thickness (Imperial)1.5
Overall Length (Imperial)36.0
Total Tape Thickness without Liner (Imperial) UOMmil
Tensile Strength (Metric)0.0
Back Side Adhesive Thickness (Metric)0.038
ApplicationAttaching; Bonding; CMP; Laminating
Total Tape Thickness without Liner (Imperial)4.0
Total Tape Thickness without Liner (Metric)0.102
Overall Width (Imperial) UOMin
Backing (Carrier) MaterialPolyester
Minimum Operating Temperature (Celsius)10.0
Number of Adhesive SidesSingle-sided
Back Side Adhesive Thickness (Imperial)1.5
Overall Width (Metric)25.4
Indoor/OutdoorIndoor
Primary Liner Thickness (Metric) UOMmm
Primary Liner Thickness (Imperial) UOMmil
Overall Length (Metric) UOMm
