3M Products & Supplies

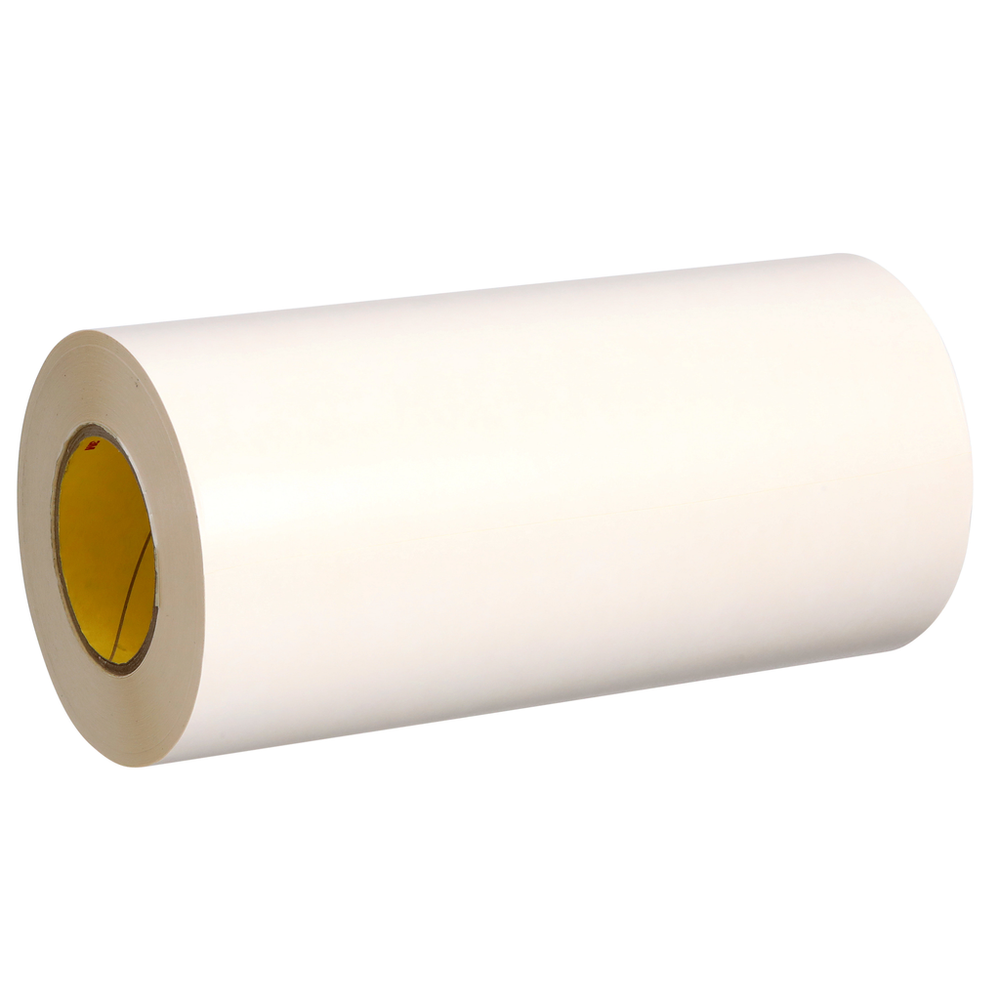

3M™ Double Coated Polyester Tape 442KW, 34 in x 108 yds - 7100170668

SKU: 7100170668
MPN: 7100170668
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051115530777
3M ID: 70006461613
5 Digit UPC: 53077
$6,950.27 each
Hurry up! Current stock:

Product Description

3M™ Double Coated Polyester Tape 442KW is a double sided tape featuring a rubber based adhesive, ideal for laminated bonding with semiconductor CMP polishing pads and clean removal from platens. A thin polyester (PET) film carrier helps the adhesive bond firmly to both platen and pad. A polycoated paper release liner provides excellent dimensional stability.

Features

  • Attaches polishing pads to platens for chemical mechanical planarization (CMP) in semiconductor manufacturing
  • Polyester carrier film helps improve handling for uniform application
  • Also applicable for polishing pad attachment to platens in HDD and glass manufacturing
  • Adhesive is applied to film carrier on both sides for effective lamination to pads and clean removal from platens
  • Rubber based adhesive provides fast, reliable bonding strength and removes cleanly
  • Release liner adds dimensional stability for fast and efficient conversion

Specifications

Country of OriginUnited States
Total Tape Thickness without Liner (Metric)0.102
Back Side Adhesive Thickness (Metric)0.038
Overall Length (Metric)98.755
Overall Length (Metric) UOMm
Overall Width (Metric)863.6
Tensile Strength (Metric)0.0
Units per Case1.0
Primary Liner ColorWhite
Total Tape Thickness without Liner (Metric) UOMmm
IndustriesElectronics
Maximum Operating Temperature (Celsius)38.0
ApplicationAttaching; Bonding; CMP; Laminating
Backing (Carrier) Thickness (Imperial)1.0
Face Side Adhesive Thickness (Metric) UOMmm
Backing (Carrier) MaterialPolyester
Total Tape Thickness without Liner (Imperial) UOMmil
Overall Width (Metric) UOMmm
Overall Length (Imperial) UOMyd
Primary Liner Thickness (Imperial)5.6
Adhesive TypeNatural Rubber
Product ColorOff-white
Backing (Carrier) Thickness (Imperial) UOMmil
Backing (Carrier) Thickness (Metric) UOMmm
Maximum Operating Temperature (Fahrenheit) UOMDegree
Primary Liner Thickness (Imperial) UOMmil
Face Side Adhesive Thickness (Imperial) UOMmil
Primary Liner Thickness (Metric)0.142
Minimum Operating Temperature (Celsius)10.0
Minimum Operating Temperature (Fahrenheit)50.0
Overall Width (Imperial) UOMin
Maximum Operating Temperature (Fahrenheit)100.0
Face Side Adhesive Thickness (Metric)0.038
Minimum Operating Temperature (Celsius) UOMDegree
Elongation at Break UOMPertinent
Total Tape Thickness without Liner (Imperial)4.0
Back Side Adhesive Thickness (Imperial) UOMmil
Overall Length (Imperial)108.0
Overall Width (Imperial)34.0
Maximum Operating Temperature (Celsius) UOMDegree
Tensile Strength (Imperial)0.0
Minimum Operating Temperature (Fahrenheit) UOMDegree
Back Side Adhesive Thickness (Imperial)1.5
Number of Adhesive SidesSingle-sided
Indoor/OutdoorIndoor
Shelf Life UOMMonth
Backing (Carrier) Thickness (Metric)0.025
Primary Liner Thickness (Metric) UOMmm
Back Side Adhesive Thickness (Metric) UOMmm
Face Side Adhesive Thickness (Imperial)1.5
