3M Products & Supplies

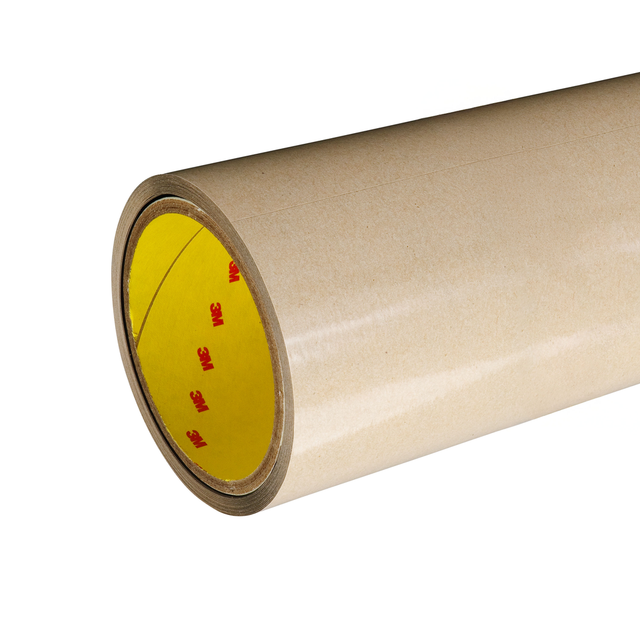

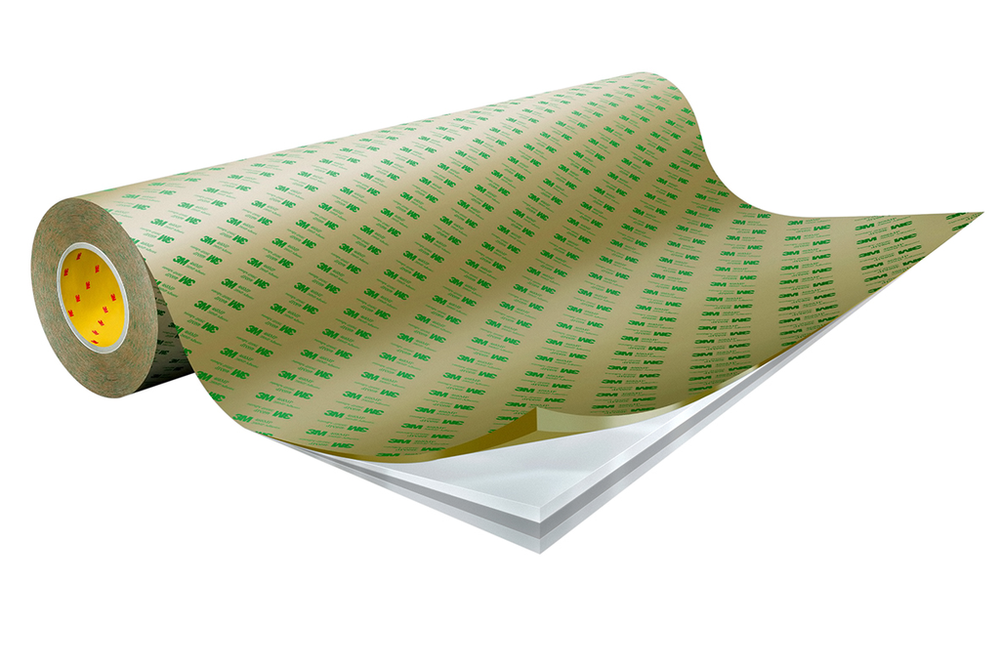

3M™ Double Coated Tape 92015, Clear, 54 in x 60 yd, 0.15 mm, 1 Roll/Case - 7100005763

SKU: 7100005763
MPN: 7100005763
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051111977422
3M ID: 70006719713
5 Digit UPC: 97742
$1,135.91 each
Hurry up! Current stock:

Product Description

3M™ Double Coated Tape 92015 offers outstanding adhesion on metal and high surface energy plastics and performs well after exposure to humidity and hot/cold temperatures up to 400°F/204°C, or 300°F/149°C in Double Coated constructions. The 3M™ Adhesive 200MP delivers excellent shear strength to resist slippage and edge lifting and offers quick stick to a wide variety of substrates. This tape is a double coated version of 3M™ Adhesive Transfer Tape 468MP.

Features

  • 3M™ Adhesive 200MP offers quick stick to a wide variety of substrates
  • Double coated version of 3M™ Adhesive Transfer Tape 468MP
  • 58 lb. polycoated kraft liner helps reduce edge roll and protects against humidity extremes
  • Clear polyester (PET) carrier adds dimensional stability and improved handling
  • Exceptional peel and shear strength for metals and HSE plastics
Spec Sheet



Downloads

Specifications

Shelf Life730
Country of OriginUnited States
Total Tape Thickness without Liner (Imperial)5.9
Total Tape Thickness without Liner (Imperial) UOMmil
Face Side Adhesive Thickness (Metric) UOMmm
Overall Length (Imperial)60.0
Total Tape Thickness without Liner (Metric) UOMmm
Backing (Carrier) Thickness (Imperial) UOMmil
Overall Width (Metric)1371.6
Face Side Adhesive Thickness (Imperial)2.7
Overall Width (Metric) UOMmm
Total Tape Thickness without Liner (Metric)0.15
Backing (Carrier) Thickness (Imperial)0.5
Back Side Adhesive Thickness (Imperial) UOMmil
Backing (Carrier) Thickness (Metric)0.012
Back Side Adhesive Thickness (Metric)0.069
Overall Length (Imperial) UOMyd
Overall Length (Metric)54.86
Product CategoryAdhesive Transfer Tapes & Double Coated Tapes
Overall Length (Metric) UOMm
Face Side Adhesive Thickness (Metric)0.069
ApplicationBonding
Backing (Carrier) Thickness (Metric) UOMmm
IndustriesElectronics
Back Side Adhesive Thickness (Imperial)2.7
Back Side Adhesive Thickness (Metric) UOMmm
Adhesive TypeHigh Performance Acrylic Adhesive 200MP
Overall Width (Imperial) UOMin
Product ColorTransparent
Face Side Adhesive Thickness (Imperial) UOMmil
Overall Width (Imperial)54.0
Backing (Carrier) MaterialPET
Units per Case1.0
