3M Products & Supplies

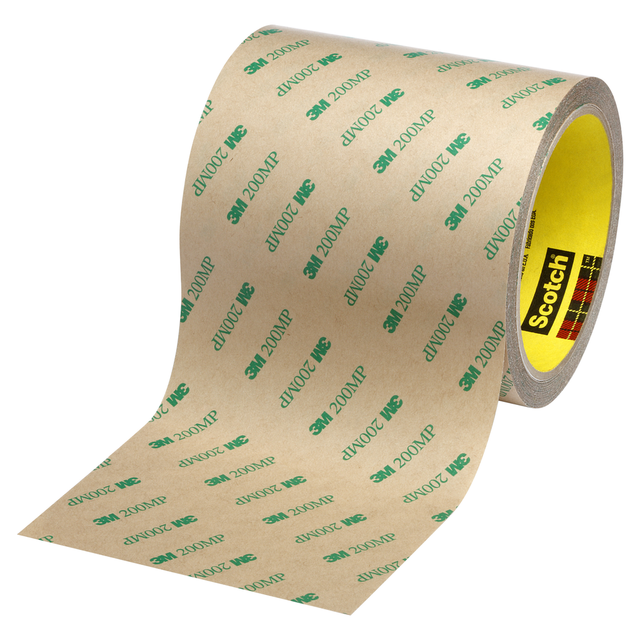

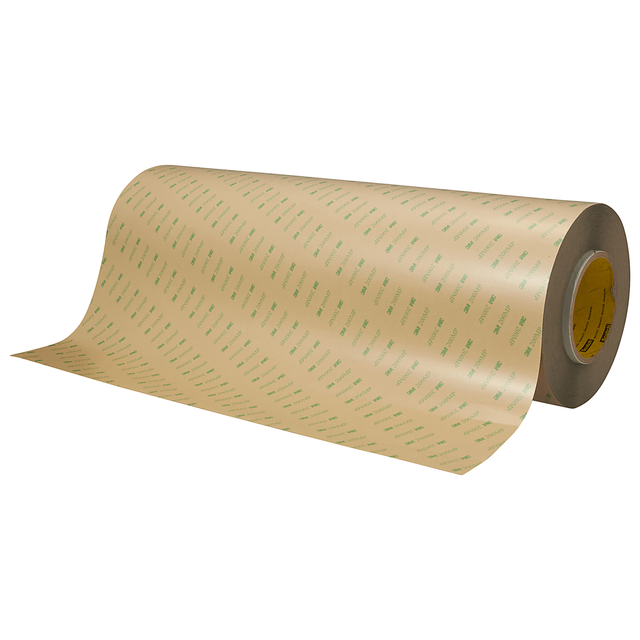

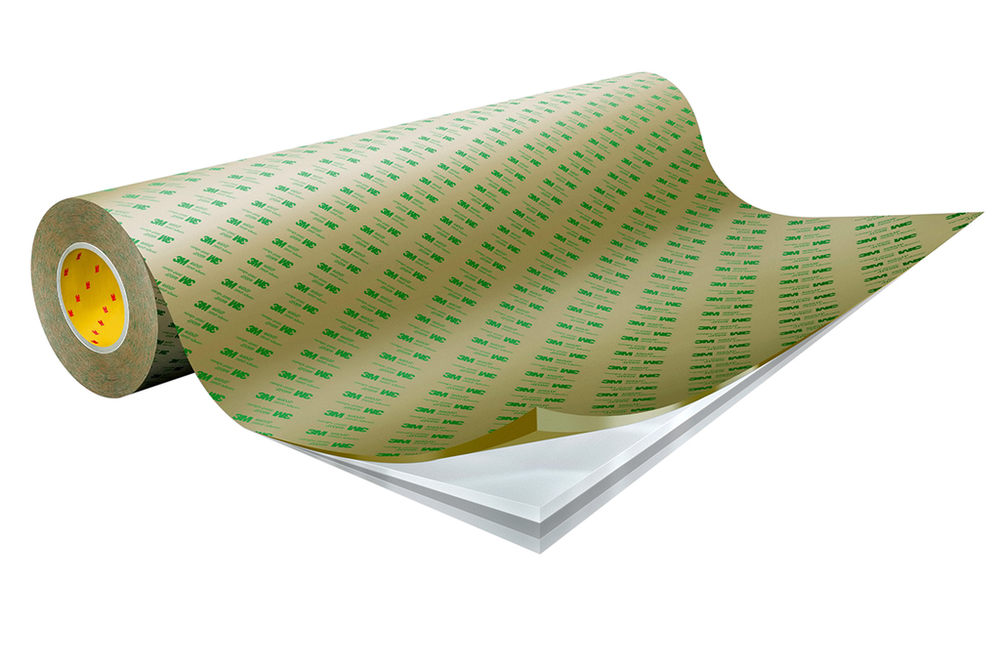

3M™ Double Coated Tape 92015, Clear, 54 in x 180 yd, 0.15 mm, 1 Roll/Case - 7000124932

SKU: 7000124932
MPN: 7000124932
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051125751988
3M ID: 70006786563
5 Digit UPC: 75198
$3,404.26 each
Hurry up! Current stock:

Product Description

3M™ Double Coated Tape 92015 offers outstanding adhesion on metal and high surface energy plastics and performs well after exposure to humidity and hot/cold temperatures up to 400°F/204°C, or 300°F/149°C in Double Coated constructions. The 3M™ Adhesive 200MP delivers excellent shear strength to resist slippage and edge lifting and offers quick stick to a wide variety of substrates. This tape is a double coated version of 3M™ Adhesive Transfer Tape 468MP.

Features

  • 3M™ Adhesive 200MP offers quick stick to a wide variety of substrates
  • Double coated version of 3M™ Adhesive Transfer Tape 468MP
  • Clear polyester (PET) carrier adds dimensional stability and improved handling
  • Exceptional peel and shear strength for metals and HSE plastics
  • 58 lb. polycoated kraft liner helps reduce edge roll and protects against humidity extremes
Spec Sheet



Downloads

Specifications

Shelf Life730
Country of OriginUnited States
Back Side Adhesive Thickness (Imperial)2.7
Overall Width (Imperial)54.0
Total Tape Thickness without Liner (Metric)0.15
Face Side Adhesive Thickness (Metric) UOMmm
Units per Case1.0
Overall Length (Imperial) UOMyd
Back Side Adhesive Thickness (Metric) UOMmm
Product ColorTransparent
Backing (Carrier) Thickness (Metric) UOMmm
Adhesive TypeHigh Performance Acrylic Adhesive 200MP
Backing (Carrier) MaterialPET
ApplicationBonding
Total Tape Thickness without Liner (Metric) UOMmm
Overall Length (Imperial)180.0
Total Tape Thickness without Liner (Imperial) UOMmil
Back Side Adhesive Thickness (Imperial) UOMmil
Overall Length (Metric) UOMm
Backing (Carrier) Thickness (Imperial) UOMmil
Face Side Adhesive Thickness (Metric)0.069
Backing (Carrier) Thickness (Imperial)0.5
Overall Width (Metric) UOMmm
Overall Width (Imperial) UOMin
Total Tape Thickness without Liner (Imperial)5.9
Product CategoryAdhesive Transfer Tapes & Double Coated Tapes
Backing (Carrier) Thickness (Metric)0.012
Face Side Adhesive Thickness (Imperial) UOMmil
Overall Length (Metric)164.59
Face Side Adhesive Thickness (Imperial)2.7
IndustriesElectronics
Overall Width (Metric)1371.6
Back Side Adhesive Thickness (Metric)0.069
