3M Products & Supplies

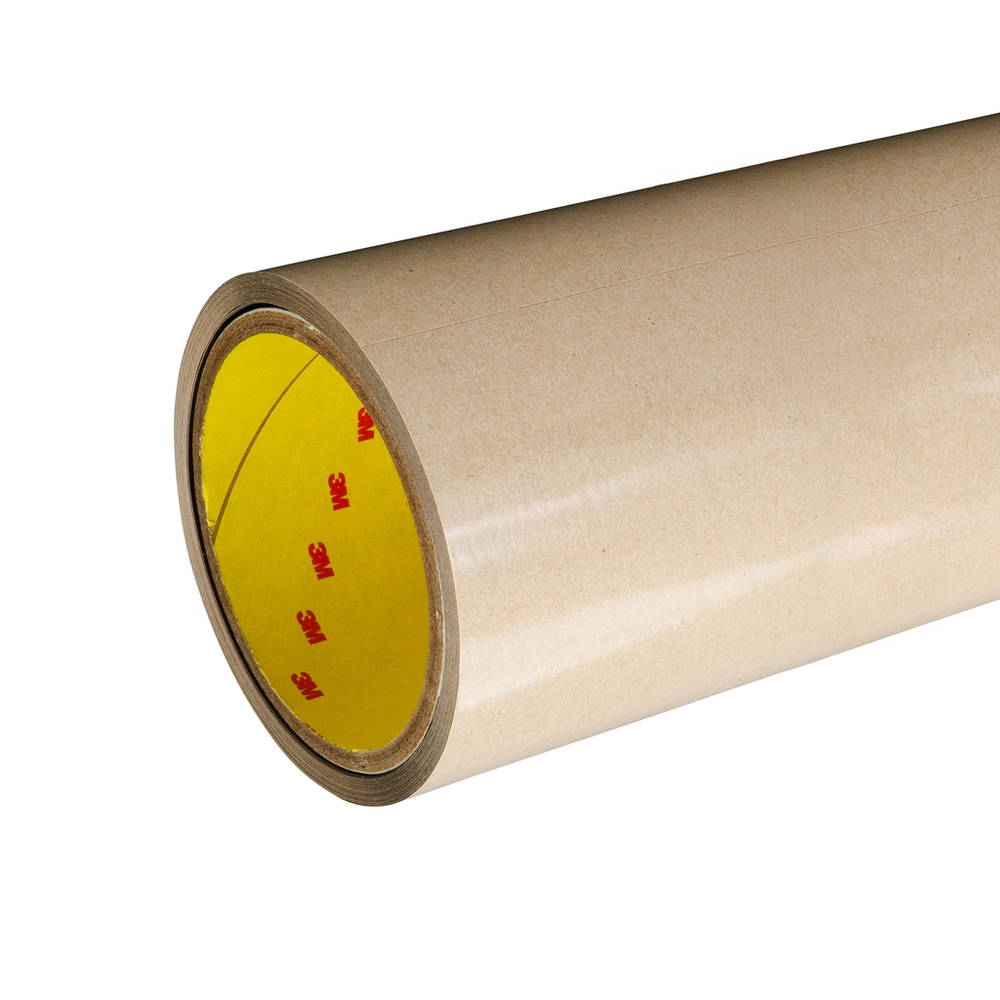

3M™ Double Coated Tape 9629PC, Clear, 54 in x 180 yds, 4 mil, 1 Roll/Case - 7010375154

SKU: 7010375154
MPN: 7010375154
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051115809330
3M ID: 70006759305
5 Digit UPC: 80933
$5,269.33 each
Hurry up! Current stock:

Product Description

3M™ Double Coated Tape 9629PC provides high bond strength to most surfaces, including many low surface energy plastics such as polypropylene and powder coated paints. The clear polyester (PET) carrier adds dimensional stability to substrates and makes it easier to handle during converting and application.

Features

  • Polyester carrier adds dimensional stability and improved handling
  • Excellent adhesion to difficult surfaces such as HDPE, LDPE, and PP
  • 3M™ Adhesive 360 delivers very high initial bond strength
  • Provides high bond strength to dissimilar materials such as metals and most plastics
  • 58# PCK liner offers improved moisture stability
Spec Sheet



Downloads

Specifications

Shelf Life730
Country of OriginUnited States
Total Tape Thickness without Liner (Metric)0.1
Total Tape Thickness without Liner (Metric) UOMmm
Face Side Adhesive Thickness (Metric)0.04
Overall Length (Imperial) UOMyd
Maximum Operating Temperature (Celsius) UOMDegree
Face Side Adhesive Thickness (Metric) UOMmm
Overall Width (Metric)1371.6
Back Side Adhesive Thickness (Metric) UOMmm
Overall Width (Imperial)54.0
Face Side Adhesive Thickness (Imperial) UOMmil
Primary Liner Thickness (Imperial) UOMmil
Backing (Carrier) Thickness (Metric)0.013
Backing (Carrier) Thickness (Metric) UOMmm
Maximum Operating Temperature (Celsius)93.0
Total Tape Thickness without Liner (Imperial) UOMmil
Total Tape Thickness without Liner (Imperial)4.0
Minimum Operating Temperature (Celsius) UOMDegree
Product CategoryAdhesive Transfer Tapes & Double Coated Tapes
Primary Liner Thickness (Imperial)4.2
Overall Width (Metric) UOMmm
Back Side Adhesive Thickness (Metric)0.04
Back Side Adhesive Thickness (Imperial) UOMmil
Adhesive TypeQuick Bond Acrylic Adhesive 360
Back Side Adhesive Thickness (Imperial)1.75
Overall Length (Metric) UOMm
Backing (Carrier) Thickness (Imperial) UOMmil
IndustriesElectronics, General Industrial
Overall Length (Imperial)180.0
Overall Length (Metric)164.59
Face Side Adhesive Thickness (Imperial)1.75
Product ColorTransparent
Backing (Carrier) Thickness (Imperial)0.5
Overall Width (Imperial) UOMin
Minimum Operating Temperature (Celsius)-40.0
Backing (Carrier) MaterialPET
