3M Products & Supplies

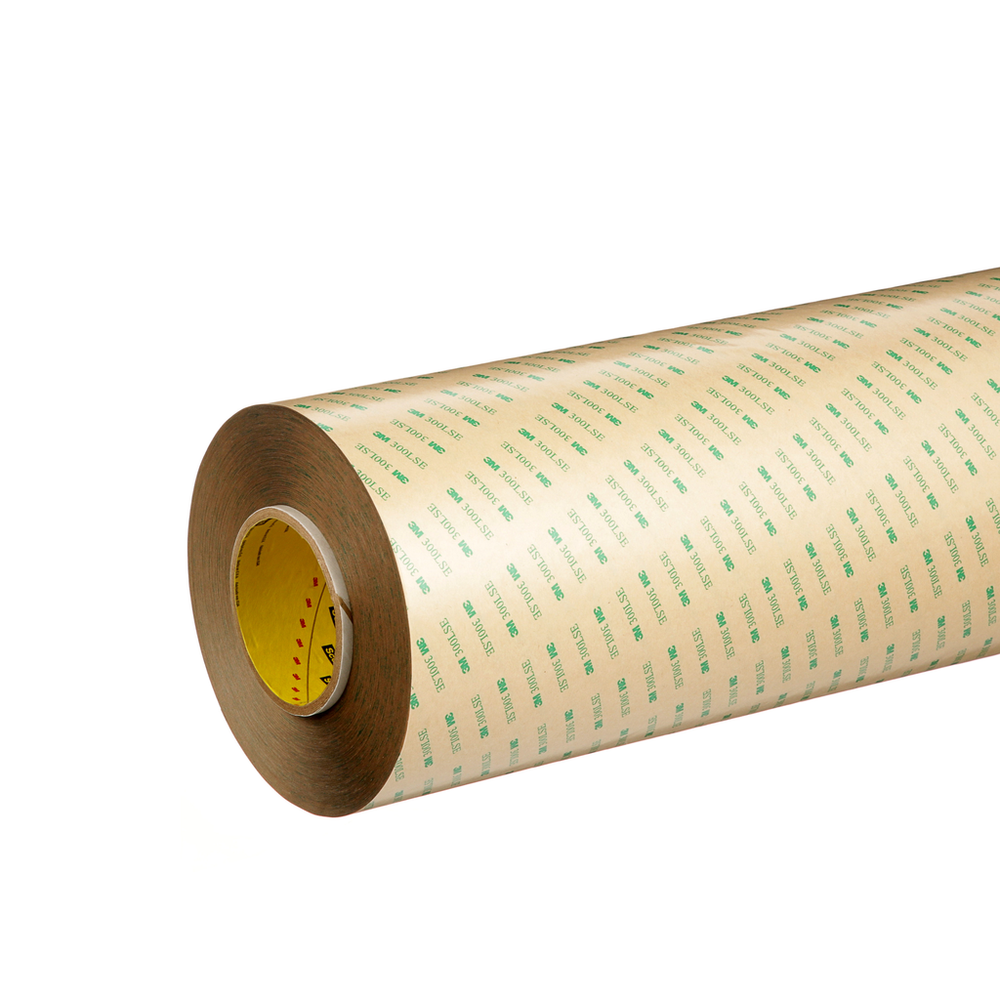

3M™ Double Coated Tape 93020LE, Clear, 54 in x 180 yd, 7.9 mil, 1 Roll/Case - 7000148429

SKU: 7000148429
MPN: 7000148429
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00051125751995
3M ID: 70006786571
5 Digit UPC: 75199
$2,773.04 each
Hurry up! Current stock:

Product Description

Comprised of a polyester film backing with a layer of adhesive on each side, 3M™ Double Coated Tape 93020LE is a market proven, double coated transfer tape with good anti-lifting properties. This tape bonds well to similar and dissimilar materials including, metals, most plastics, glass, papers and painted surfaces.

Features

  • Excellent bond to low surface energy substrates including powder coatings and plastics such as polypropylene (PP)
  • Ideal solution for general purpose attachment and assemblies of a wide variety of materials
  • Good resistance to industrial chemicals, consumer chemicals, moisture and humidity
  • Adhesive provides excellent holding power and anti-lifting properties
  • High adhesion to metals and high surface energy materials, making it suitable for bonding dissimilar substrates
  • Polyester film carrier provides dimensional stability to foams and other substrates to make tape easier to handle during slitting and die-cutting
Spec Sheet



Downloads

Specifications

Shelf Life730
Country of OriginUnited States
Maximum Operating Temperature (Fahrenheit)300.0
Primary Liner ColorTan
Total Tape Thickness without Liner (Imperial) UOMmil
Minimum Operating Temperature (Celsius)-40.0
Back Side Adhesive Thickness (Imperial) UOMmil
Units per Case1.0
Maximum Operating Temperature (Celsius) UOMDegree
Back Side Adhesive Thickness (Imperial)3.7
Backing (Carrier) Thickness (Imperial) UOMmil
Maximum Operating Temperature (Fahrenheit) UOMDegree
Overall Width (Imperial)54.0
Indoor/OutdoorIndoor/Outdoor
Adhesive TypeAcrylic
Overall Width (Imperial) UOMin
Face Side Adhesive Thickness (Metric) UOMmm
Primary Liner Thickness (Metric) UOMmm
Face Side Adhesive Thickness (Imperial)3.7
Primary Liner Thickness (Imperial) UOMmil
Overall Width (Metric) UOMcm
Total Tape Thickness without Liner (Metric)0.2
Minimum Operating Temperature (Celsius) UOMDegree
Backing (Carrier) MaterialPolyester
Face Side Adhesive Thickness (Imperial) UOMmil
Back Side Adhesive Thickness (Metric)0.09
IndustriesAppliance, Automotive, Converter Solutions, Electronics, General Industrial, MRO, Medical, Metalworking, Military and Government, Oil & Gas, Signage, Specialty Vehicles, Transportation, Woodworking
Backing (Carrier) Thickness (Imperial)0.5
Minimum Operating Temperature (Fahrenheit) UOMDegree
Primary Liner58# Densified Kraft Paper
Primary Liner Thickness (Imperial)4.2
Product ColorTransparent
Total Tape Thickness without Liner (Imperial)7.9
Backing (Carrier) Thickness (Metric) UOMmm
Face Side Adhesive Thickness (Metric)0.09
Overall Length (Imperial)180.0
Minimum Operating Temperature (Fahrenheit)-40.0
Total Tape Thickness without Liner (Metric) UOMmm
Overall Width (Metric)137.0
Back Side Adhesive Thickness (Metric) UOMmm
Overall Length (Imperial) UOMyd
Primary Liner Thickness (Metric)0.11
Backing (Carrier) Thickness (Metric)0.012
Overall Length (Metric)164.59
Maximum Operating Temperature (Celsius)149.0
Overall Length (Metric) UOMm
