3M Products & Supplies

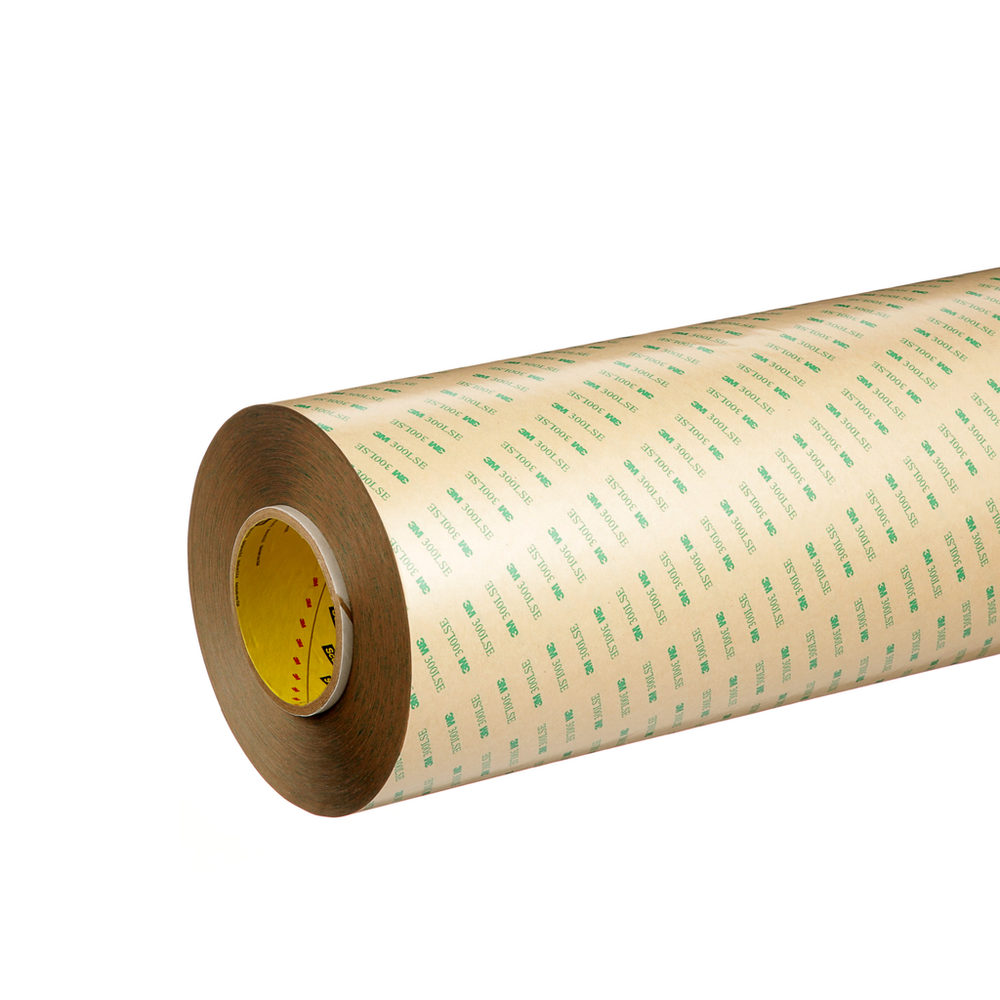

3M™ Double Coated Tape 93020LE, Clear, 54 in x 360 yd, 7.9 mil, 1 Roll/Case - 7100084685

SKU: 7100084685
MPN: 7100084685
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051125752589
3M ID: 70006787173
5 Digit UPC: 75258
$5,546.08 each
Hurry up! Current stock:

Product Description

Comprised of a polyester film backing with a layer of adhesive on each side, 3M™ Double Coated Tape 93020LE is a market proven, double coated transfer tape with good anti-lifting properties. This tape bonds well to similar and dissimilar materials including, metals, most plastics, glass, papers and painted surfaces.

Features

  • Excellent bond to low surface energy substrates including powder coatings and plastics such as polypropylene (PP)
  • Good resistance to industrial chemicals, consumer chemicals, moisture and humidity
  • Adhesive provides excellent holding power and anti-lifting properties
  • High adhesion to metals and high surface energy materials, making it suitable for bonding dissimilar substrates
  • Polyester film carrier provides dimensional stability to foams and other substrates to make tape easier to handle during slitting and die-cutting
  • Ideal solution for general purpose attachment and assemblies of a wide variety of materials
Spec Sheet



Downloads

Specifications

Shelf Life730
Country of OriginUnited States
Units per Case1.0
Overall Width (Imperial) UOMin
Primary Liner58# Densified Kraft Paper
Overall Length (Metric) UOMm
Overall Width (Imperial)54.0
Overall Width (Metric) UOMcm
Minimum Operating Temperature (Celsius)-40.0
Primary Liner Thickness (Metric) UOMmm
Backing (Carrier) Thickness (Imperial) UOMmil
Backing (Carrier) MaterialPolyester
Product ColorTransparent
Overall Length (Imperial)360.0
Total Tape Thickness without Liner (Imperial)7.9
Primary Liner Thickness (Imperial) UOMmil
Total Tape Thickness without Liner (Metric)0.2
Face Side Adhesive Thickness (Metric) UOMmm
Indoor/OutdoorIndoor/Outdoor
Backing (Carrier) Thickness (Metric) UOMmm
Back Side Adhesive Thickness (Metric) UOMmm
Maximum Operating Temperature (Fahrenheit)300.0
Maximum Operating Temperature (Celsius)149.0
Minimum Operating Temperature (Fahrenheit)-40.0
Overall Length (Imperial) UOMyd
Back Side Adhesive Thickness (Metric)0.09
IndustriesAppliance, Automotive, Converter Solutions, Electronics, General Industrial, MRO, Medical, Metalworking, Military and Government, Oil & Gas, Signage, Specialty Vehicles, Transportation, Woodworking
Primary Liner ColorTan
Backing (Carrier) Thickness (Imperial)0.5
Overall Length (Metric)329.18
Face Side Adhesive Thickness (Imperial) UOMmil
Face Side Adhesive Thickness (Metric)0.09
Maximum Operating Temperature (Celsius) UOMDegree
Face Side Adhesive Thickness (Imperial)3.7
Backing (Carrier) Thickness (Metric)0.012
Total Tape Thickness without Liner (Metric) UOMmm
Minimum Operating Temperature (Fahrenheit) UOMDegree
Maximum Operating Temperature (Fahrenheit) UOMDegree
Overall Width (Metric)137.0
Back Side Adhesive Thickness (Imperial)3.7
Total Tape Thickness without Liner (Imperial) UOMmil
Primary Liner Thickness (Metric)0.11
Primary Liner Thickness (Imperial)4.2
Minimum Operating Temperature (Celsius) UOMDegree
Adhesive TypeAcrylic
Back Side Adhesive Thickness (Imperial) UOMmil
