3M Products & Supplies

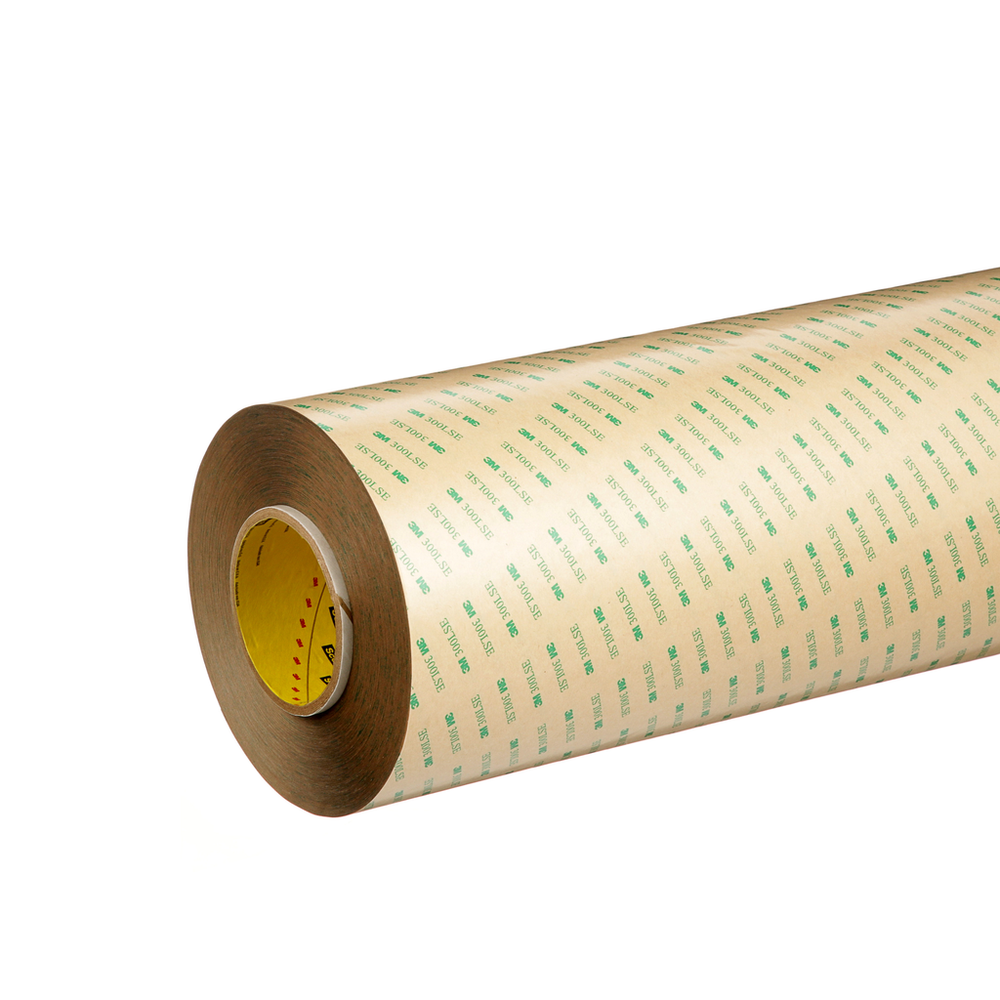

3M™ Double Coated Tape 93020LE, Clear, 54 in x 60 yd, 7.9 mil, Roll - 7010535966

SKU: 7010535966
MPN: 7010535966
Made to Order: For a lead time estimate, please send your request to [email protected]
3M ID: CY998787287
5 Digit UPC: #VALUE!
$924.35 each
Hurry up! Current stock:

Product Description

Comprised of a polyester film backing with a layer of adhesive on each side, 3M™ Double Coated Tape 93020LE is a market proven, double coated transfer tape with good anti-lifting properties. This tape bonds well to similar and dissimilar materials including, metals, most plastics, glass, papers and painted surfaces.

Features

  • Excellent bond to low surface energy substrates including powder coatings and plastics such as polypropylene (PP)
  • Polyester film carrier provides dimensional stability to foams and other substrates to make tape easier to handle during slitting and die-cutting
  • Adhesive provides excellent holding power and anti-lifting properties
  • Good resistance to industrial chemicals, consumer chemicals, moisture and humidity
  • High adhesion to metals and high surface energy materials, making it suitable for bonding dissimilar substrates
  • Ideal solution for general purpose attachment and assemblies of a wide variety of materials
Spec Sheet



Downloads

Specifications

Shelf Life730
Country of OriginUnited States
Overall Length (Metric) UOMm
Maximum Operating Temperature (Fahrenheit) UOMDegree
Overall Length (Metric)54.86
Overall Width (Metric) UOMcm
Total Tape Thickness without Liner (Metric)0.2
Overall Width (Metric)137.0
Indoor/OutdoorIndoor/Outdoor
Minimum Operating Temperature (Celsius) UOMDegree
Face Side Adhesive Thickness (Metric)0.095
Back Side Adhesive Thickness (Imperial) UOMmil
Maximum Operating Temperature (Celsius) UOMDegree
Overall Length (Imperial)60.0
Backing (Carrier) Thickness (Imperial)0.5
Minimum Operating Temperature (Fahrenheit)-40.0
Face Side Adhesive Thickness (Imperial) UOMmil
Face Side Adhesive Thickness (Imperial)3.7
Minimum Operating Temperature (Fahrenheit) UOMDegree
Overall Length (Imperial) UOMyd
Face Side Adhesive Thickness (Metric) UOMmm
Maximum Operating Temperature (Celsius)149.0
Minimum Operating Temperature (Celsius)-40.0
Back Side Adhesive Thickness (Metric)0.095
Overall Width (Imperial) UOMin
Backing (Carrier) Thickness (Metric)0.012
Overall Width (Imperial)54.0
Backing (Carrier) Thickness (Imperial) UOMmil
Back Side Adhesive Thickness (Imperial)3.7
Maximum Operating Temperature (Fahrenheit)300.0
Total Tape Thickness without Liner (Imperial) UOMmil
Back Side Adhesive Thickness (Metric) UOMmm
Total Tape Thickness without Liner (Imperial)7.9
Backing (Carrier) Thickness (Metric) UOMmm
Total Tape Thickness without Liner (Metric) UOMmm
Product ColorTransparent
