3M Products & Supplies

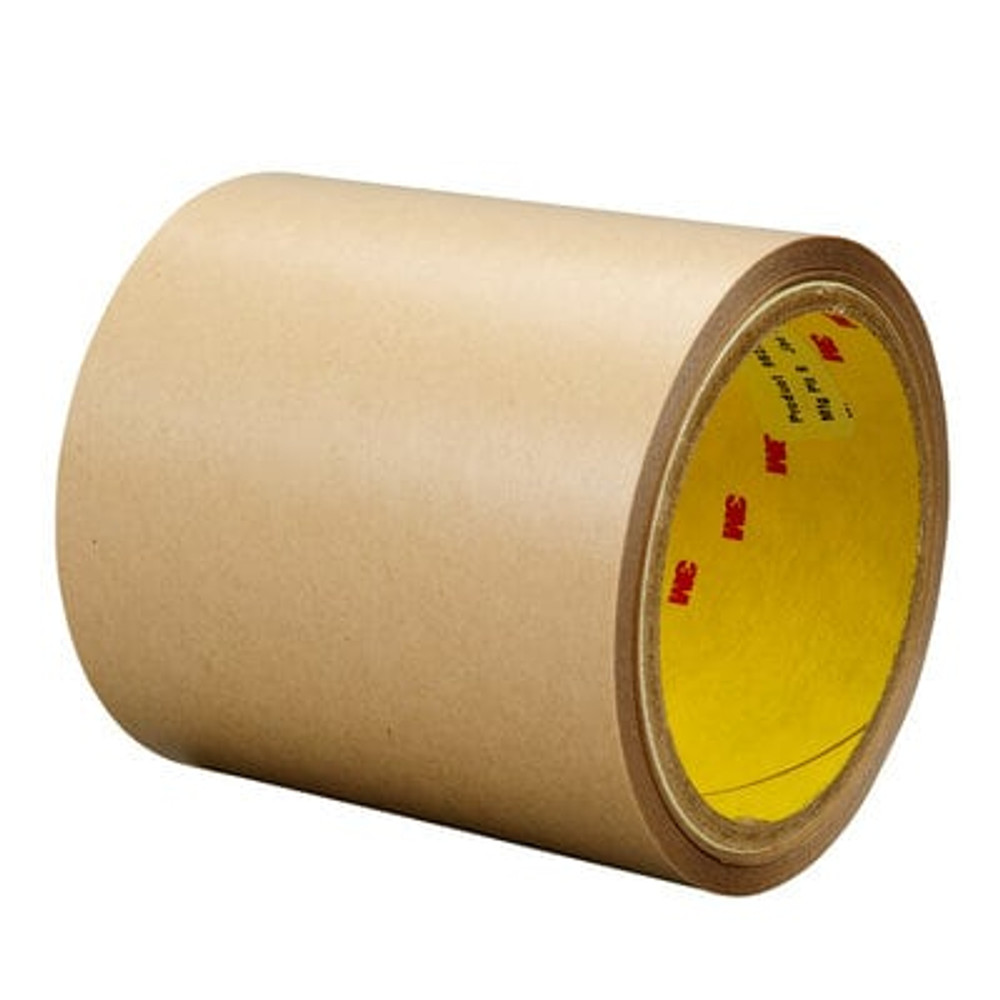

3M™ Double Coated Tape 9629PC, Clear, 1/2 in x 60 yd, 4 mil, 72 Roll/Case - 7010335510

Sold As: 72-Pack
SKU: 7010335510
MPN: 7010335510
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051111919934
3M ID: 70006706306
5 Digit UPC: 91993
$1,170.95 ($16.26 / Count)
Hurry up! Current stock:

Product Description

3M™ Double Coated Tape 9629PC provides high bond strength to most surfaces, including many low surface energy plastics such as polypropylene and powder coated paints. The clear polyester (PET) carrier adds dimensional stability to substrates and makes it easier to handle during converting and application.

Features

  • Provides high bond strength to dissimilar materials such as metals and most plastics
  • 3M™ Adhesive 360 delivers very high initial bond strength
  • Excellent adhesion to difficult surfaces such as HDPE, LDPE, and PP
  • Polyester carrier adds dimensional stability and improved handling
  • 58# PCK liner offers improved moisture stability
Spec Sheet



Downloads

Specifications

Shelf Life730
Country of OriginUnited States
Product ColorTransparent
Adhesive TypeQuick Bond Acrylic Adhesive 360
IndustriesElectronics, General Industrial
Overall Width (Metric) UOMmm
Backing (Carrier) Thickness (Metric)0.013
Maximum Operating Temperature (Celsius)93.0
Overall Length (Imperial) UOMyd
Face Side Adhesive Thickness (Metric) UOMmm
Overall Length (Metric) UOMm
Product CategoryAdhesive Transfer Tapes & Double Coated Tapes
Overall Length (Metric)54.86
Overall Width (Imperial)0.5
Overall Width (Imperial) UOMin
Total Tape Thickness without Liner (Metric)0.1
Face Side Adhesive Thickness (Imperial) UOMmil
Backing (Carrier) Thickness (Imperial)0.5
Overall Width (Metric)12.7
Backing (Carrier) Thickness (Imperial) UOMmil
Face Side Adhesive Thickness (Metric)0.04
Backing (Carrier) MaterialPET
Back Side Adhesive Thickness (Imperial)1.75
Total Tape Thickness without Liner (Metric) UOMmm
Backing (Carrier) Thickness (Metric) UOMmm
Overall Length (Imperial)60.0
Maximum Operating Temperature (Celsius) UOMDegree
Total Tape Thickness without Liner (Imperial) UOMmil
Total Tape Thickness without Liner (Imperial)4.0
Units per Case72.0
Minimum Operating Temperature (Celsius) UOMDegree
Back Side Adhesive Thickness (Metric) UOMmm
Face Side Adhesive Thickness (Imperial)1.75
Back Side Adhesive Thickness (Imperial) UOMmil
Back Side Adhesive Thickness (Metric)0.04
Minimum Operating Temperature (Celsius)-40.0
