3M Products & Supplies

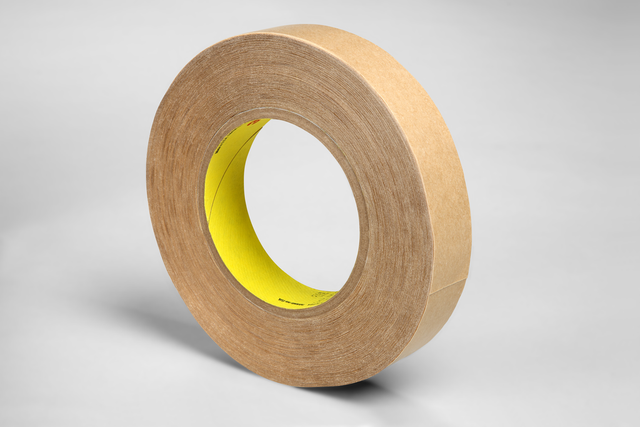

3M™ Double Coated Tape 9576, Clear, 1/2 in x 60 yd, 4 mil, 72 Roll/Case - 7000123459

Sold As: 72-Pack
SKU: 7000123459
MPN: 7000123459
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00021200872877
3M ID: 70006136397
5 Digit UPC: 87287
$709.05 ($9.85 / Count)
Hurry up! Current stock:

Product Description

3M™ Double Coated Tape 9576 is a medium tack tape for general splicing and roll closing applications. This tape offers ultra-high peel strength and excellent shear strength for durability. It is conformable to irregular surfaces and offers excellent UV and heat resistance.

Features

  • Excellent UV and heat resistance
  • Conformable to irregular surfaces
  • Excellent peel and shear strength to withstand rigorous splicing applications
  • Bonds well to most substrates, including low surface energy plastics
  • Double sided adhesion increases dimensional stability for easy handling
  • Medium tack double coated tape for roll-to-roll splicing, core starting and roll closing
Spec Sheet



Downloads

Specifications

Shelf Life730
Country of OriginUnited States
Carrier MaterialPolypropylene
Primary Liner60# Densified Kraft Paper
Back Side Adhesive Thickness (Imperial)1.5
Overall Length (Metric) UOMm
Backing (Carrier) Thickness (Imperial)1.0
Overall Thickness (Imperial) UOMmil
Master Size Width (Imperial)27.0
Master Size Length (Metric) UOMm
Set Time12 to 60 Second
Total Tape Thickness without Liner (Metric) UOMmm
Product ColorTransparent
Backing (Carrier) Thickness (Imperial) UOMmil
Overall Width (Imperial)0.5
Master Size Length (Metric)329.2
Master Size Width (Imperial) UOMin
Total Tape Thickness without Liner (Metric)0.1
Total Tape Thickness without Liner (Imperial) UOMmil
Overall Thickness (Imperial)4.0
Overall Width (Metric) UOMmm
Master Size Length (Imperial) UOMLinear
Back Side Adhesive Thickness (Imperial) UOMmil
Carrier Thickness (Metric)0.03
Primary Liner Thickness (Metric) UOMmm
Master Size Width (Metric) UOMcm
Units per Case72.0
Carrier Thickness UOMmil
Backing (Carrier) Thickness (Metric) UOMmm
Shelf Life in Months (From Date of Manufacture)9.0
Face Side Adhesive Thickness (Imperial) UOMmil
Minimum Operating Temperature (Fahrenheit) UOMDegree
Total Tape Thickness without Liner (Imperial)4.0
Master Size Length (Imperial)360.0
ApplicationZero-Speed and General Splicing
IndustriesGeneral Industrial, Paper, Print
Backing (Carrier) MaterialPolypropylene
Face Side Adhesive Thickness (Imperial)1.5
Shelf Life in Months (From Date of Manufacture) UOMMonths
Tape TypeSingle Coated
Overall Width (Metric)12.7
Back Side Adhesive Thickness (Metric) UOMmm
Primary Liner Thickness (Imperial)4.0
Product FormRoll
Master Size Width (Metric)69.0
Overall Length (Imperial)60.0
Carrier Thickness1.0
Overall Width (Imperial) UOMin
Carrier Thickness (Metric) UOMmm
Face Side Adhesive TypeHigh Tack Acrylic 400
Primary Liner ColorTan
Primary Liner Thickness (Imperial) UOMmil
Overall Length (Metric)54.86
Face Side Adhesive Thickness (Metric) UOMmm
Overall Length (Imperial) UOMyd
Shelf Life UOMMonth
Primary Liner Thickness (Metric)0.1
Backing (Carrier) Thickness (Metric)0.025
Face Side Adhesive Thickness (Metric)0.04
Maximum Operating Temperature (Fahrenheit)165.0
Minimum Operating Temperature (Fahrenheit)-40.0
Maximum Operating Temperature (Fahrenheit) UOMDegree
Maximum Operating Temperature (Celsius)50.0
