3M Products & Supplies

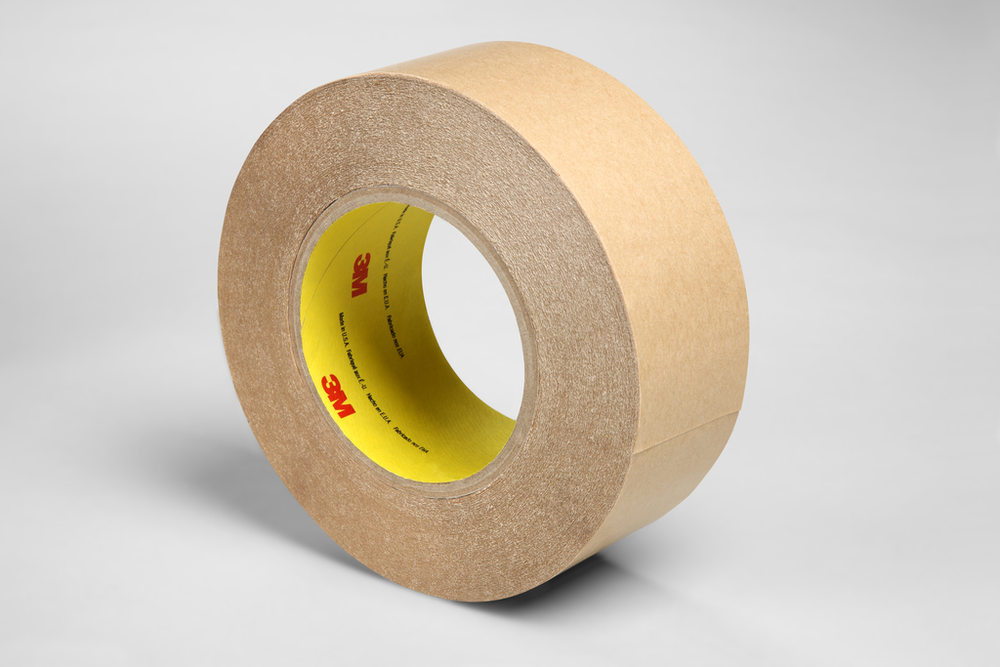

3M™ Double Coated Tape 9576, Clear, 2 in x 60 yd, 4 mil, 24 Roll/Case - 7000048563

Sold As: 24-Pack
SKU: 7000048563
MPN: 7000048563
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00021200842689
3M ID: 70006128279
5 Digit UPC: 84268
$945.80 ($39.41 / Count)
Hurry up! Current stock:

Product Description

3M™ Double Coated Tape 9576 is a medium tack tape for general splicing and roll closing applications. This tape offers ultra-high peel strength and excellent shear strength for durability. It is conformable to irregular surfaces and offers excellent UV and heat resistance.

Features

  • Bonds well to most substrates, including low surface energy plastics
  • Medium tack double coated tape for roll-to-roll splicing, core starting and roll closing
  • Conformable to irregular surfaces
  • Excellent peel and shear strength to withstand rigorous splicing applications
  • Excellent UV and heat resistance
  • Double sided adhesion increases dimensional stability for easy handling
Spec Sheet



Downloads

Specifications

Shelf Life730
Country of OriginUnited States
Master Size Width (Imperial) UOMin
Backing (Carrier) MaterialPolypropylene
Overall Length (Imperial)60.0
Face Side Adhesive Thickness (Metric) UOMmm
Master Size Length (Imperial)360.0
Backing (Carrier) Thickness (Metric)0.025
Backing (Carrier) Thickness (Imperial) UOMmil
Overall Thickness (Imperial) UOMmil
Shelf Life in Months (From Date of Manufacture) UOMMonths
Back Side Adhesive Thickness (Metric) UOMmm
ApplicationZero-Speed and General Splicing
Backing (Carrier) Thickness (Metric) UOMmm
Maximum Operating Temperature (Fahrenheit)165.0
Master Size Length (Metric) UOMm
Minimum Operating Temperature (Fahrenheit) UOMDegree
Carrier Thickness (Metric)0.03
Face Side Adhesive Thickness (Imperial) UOMmil
Back Side Adhesive Thickness (Imperial)1.5
Primary Liner Thickness (Imperial) UOMmil
Total Tape Thickness without Liner (Imperial)4.0
Master Size Width (Metric)69.0
Carrier Thickness (Metric) UOMmm
Shelf Life in Months (From Date of Manufacture)9.0
Total Tape Thickness without Liner (Metric)0.1
Overall Width (Metric) UOMmm
Overall Length (Metric)54.86
Master Size Length (Imperial) UOMLinear
Overall Thickness (Imperial)4.0
Product ColorTransparent
Overall Width (Imperial)2.0
Face Side Adhesive Thickness (Imperial)1.5
IndustriesGeneral Industrial, Paper, Print
Maximum Operating Temperature (Fahrenheit) UOMDegree
Primary Liner Thickness (Metric)0.1
Tape TypeSingle Coated
Carrier Thickness1.0
Maximum Operating Temperature (Celsius)50.0
Face Side Adhesive Thickness (Metric)0.04
Carrier Thickness UOMmil
Master Size Width (Imperial)27.0
Master Size Length (Metric)329.2
Overall Width (Imperial) UOMin
Minimum Operating Temperature (Fahrenheit)-40.0
Backing (Carrier) Thickness (Imperial)1.0
Overall Width (Metric)50.8
Overall Length (Imperial) UOMyd
Product FormRoll
Carrier MaterialPolypropylene
Units per Case24.0
Total Tape Thickness without Liner (Metric) UOMmm
Primary Liner Thickness (Imperial)4.0
Primary Liner Thickness (Metric) UOMmm
Shelf Life UOMMonth
Set Time12 to 60 Second
Master Size Width (Metric) UOMcm
Overall Length (Metric) UOMm
Total Tape Thickness without Liner (Imperial) UOMmil
Primary Liner ColorTan
Face Side Adhesive TypeHigh Tack Acrylic 400
Back Side Adhesive Thickness (Imperial) UOMmil
Primary Liner60# Densified Kraft Paper
