3M Products & Supplies

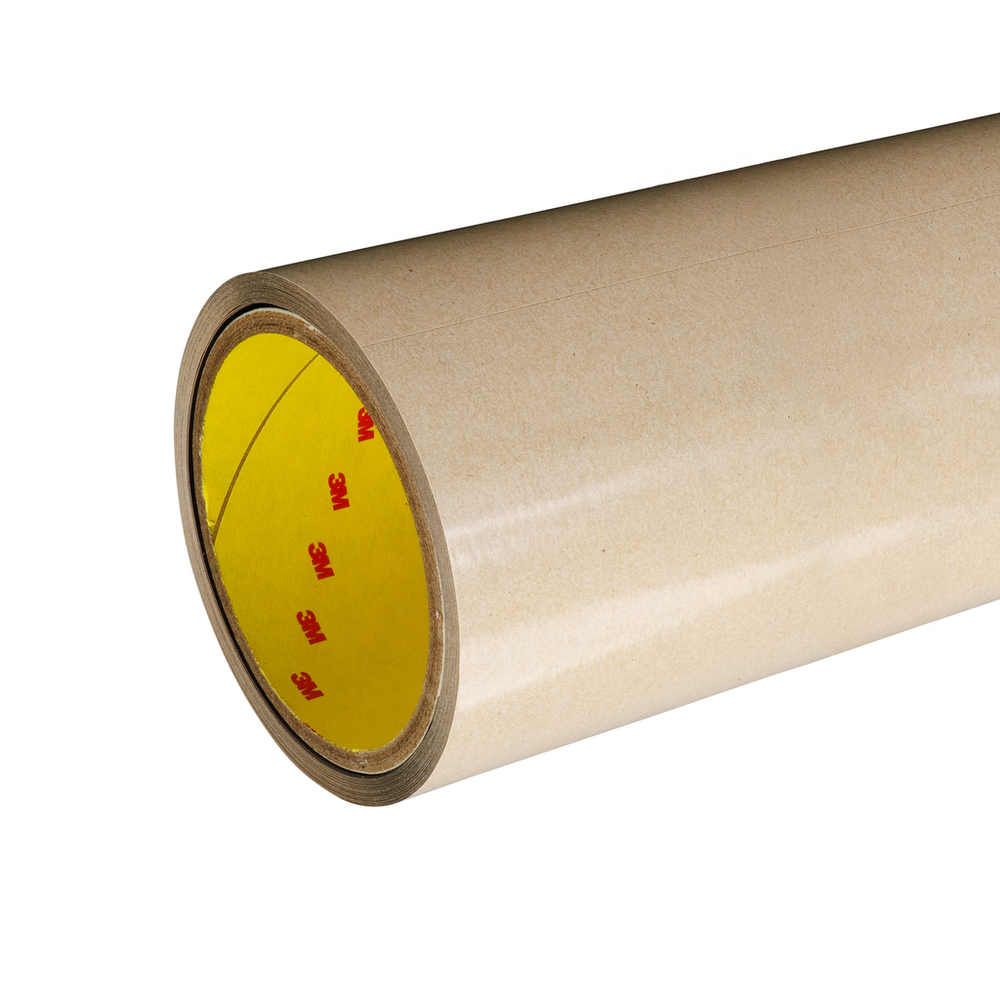

3M™ Double Coated Tape 9629PC, Clear, 48 in x 180 yd, 4 mil, 1 Roll/Case - 7100173942

SKU: 7100173942
MPN: 7100173942
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051111919002
3M ID: 70006705381
5 Digit UPC: 91900
$4,683.85 each
Hurry up! Current stock:

Product Description

3M™ Double Coated Tape 9629PC provides high bond strength to most surfaces, including many low surface energy plastics such as polypropylene and powder coated paints. The clear polyester (PET) carrier adds dimensional stability to substrates and makes it easier to handle during converting and application.

Features

  • Excellent adhesion to difficult surfaces such as HDPE, LDPE, and PP
  • 58# PCK liner offers improved moisture stability
  • Provides high bond strength to dissimilar materials such as metals and most plastics
  • Polyester carrier adds dimensional stability and improved handling
  • 3M™ Adhesive 360 delivers very high initial bond strength
Spec Sheet



Downloads

Specifications

Shelf Life730
Country of OriginUnited States
Overall Width (Imperial)48.0
Minimum Operating Temperature (Celsius)-40.0
Total Tape Thickness without Liner (Imperial) UOMmil
Back Side Adhesive Thickness (Imperial)1.75
Backing (Carrier) Thickness (Metric) UOMmm
Back Side Adhesive Thickness (Metric)0.04
Maximum Operating Temperature (Celsius)93.0
Face Side Adhesive Thickness (Metric)0.04
Overall Length (Metric)164.59
Overall Width (Metric) UOMmm
Total Tape Thickness without Liner (Metric) UOMmm
Face Side Adhesive Thickness (Imperial)1.75
Face Side Adhesive Thickness (Imperial) UOMmil
Overall Width (Metric)1219.2
Overall Length (Imperial)180.0
Back Side Adhesive Thickness (Metric) UOMmm
Overall Length (Imperial) UOMyd
Maximum Operating Temperature (Celsius) UOMDegree
Overall Length (Metric) UOMm
Back Side Adhesive Thickness (Imperial) UOMmil
Backing (Carrier) MaterialPET
Minimum Operating Temperature (Celsius) UOMDegree
Total Tape Thickness without Liner (Imperial)4.0
Adhesive TypeQuick Bond Acrylic Adhesive 360
Units per Case1.0
Face Side Adhesive Thickness (Metric) UOMmm
Total Tape Thickness without Liner (Metric)0.1
Overall Width (Imperial) UOMin
Product CategoryAdhesive Transfer Tapes & Double Coated Tapes
Backing (Carrier) Thickness (Imperial)0.5
Product ColorTransparent
IndustriesElectronics, General Industrial
Backing (Carrier) Thickness (Metric)0.013
Backing (Carrier) Thickness (Imperial) UOMmil
