3M Products & Supplies

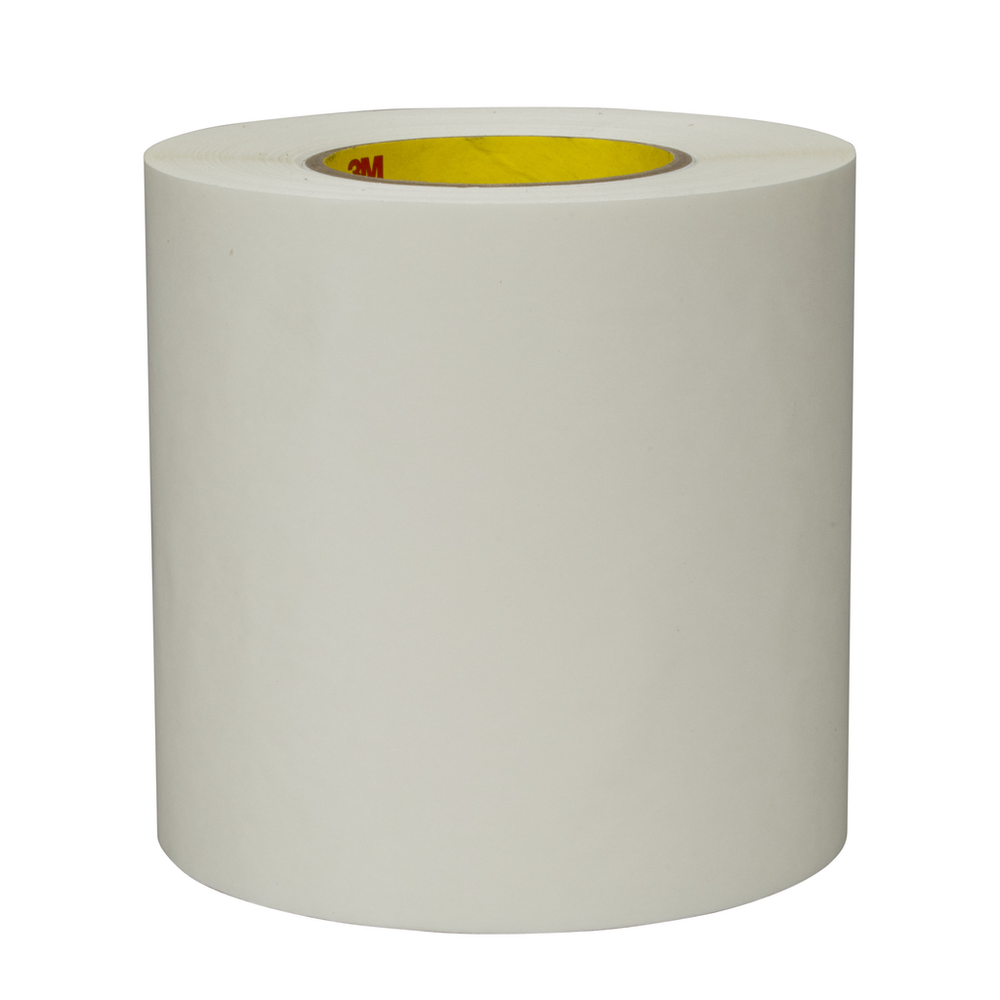

3M™ Double Coated Tape 9443NP, Clear, 1 in x 60 yd, 6 mil, 36 Roll/Case - 7100143695

Sold As: 36-Pack
SKU: 7100143695
MPN: 7100143695
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00048011585925
3M ID: 70006407285
5 Digit UPC: 58592
$1,165.09 ($32.36 / Count)
Hurry up! Current stock:

Product Description

3M™ Double Coated Tape 9443NP features 3M™ Adhesive 760, a high-tack synthetic rubber adhesive that bonds a wide variety of substrates including metals, papers, paints and most plastics. This tape provides excellent initial adhesion and is somewhat repositionable.

Features

  • 6 mil synthetic rubber adhesive on high density polyethylene carrier
  • Good adhesion to metals, high adhesion to most HSE and LSE plastics
  • White 60 lb. densified kraft paper liner
  • For indoor and room temperature applications
  • Removes cleanly and is somewhat repositionable
  • Double sided tape with excellent quick stick for rapid assembly
Spec Sheet



Downloads

Specifications

Shelf Life547
Country of OriginUnited States
Backing (Carrier) Thickness (Imperial)2.0
Minimum Operating Temperature (Fahrenheit)-40.0
Primary Liner ColorWhite
Minimum Operating Temperature (Celsius)-40.0
Back Side Adhesive Thickness (Imperial) UOMmil
Backing (Carrier) Thickness (Imperial) UOMmil
IndustriesConverter Solutions, General Industrial
Overall Width (Metric)25.4
Back Side Adhesive Thickness (Imperial)2.0
Face Side Adhesive Thickness (Metric) UOMmm
Master Size Length (Metric)109.7
Overall Thickness (Imperial) UOMmil
Total Tape Thickness without Liner (Metric) UOMmm
Backing (Carrier) Thickness (Metric) UOMmm
Maximum Operating Temperature (Fahrenheit)120.0
Units per Case36.0
Carrier Thickness0.136805555555556
Overall Width (Imperial)1.0
Master Size Width (Metric)69.0
Total Tape Thickness without Liner (Imperial)6.0
Master Size Width (Metric) UOMcm
Face Side Adhesive Thickness (Metric)0.051
Face Side Adhesive Thickness (Imperial) UOMmil
Total Tape Thickness without Liner (Imperial) UOMmil
Master Size Length (Metric) UOMm
Indoor/OutdoorBoth
Primary Liner Thickness (Metric) UOMmm
Primary Liner62# Densified Kraft Paper (DK)
Product FormRoll
Overall Thickness (Imperial)6.0
Carrier Thickness UOMmil
Total Tape Thickness without Liner (Metric)0.1524
Overall Length (Metric) UOMm
Core Size (Metric)76.2
Core Size (Imperial) UOMin
Minimum Operating Temperature (Fahrenheit) UOMDegree
Maximum Operating Temperature (Fahrenheit) UOMDegree
Carrier Thickness (Metric) UOMmm
Core Size (Imperial)3.0
Product ColorTransparent
Overall Width (Imperial) UOMin
Back Side Adhesive Thickness (Metric) UOMmm
Carrier Thickness (Metric)0.05
Face Side Adhesive TypeSynthetic Rubber Adhesive 760
Minimum Operating Temperature (Celsius) UOMDegree
Adhesive TypeSynthetic Rubber
Carrier MaterialHigh Density Polyethylene HDPE
Primary Liner Thickness (Metric)0.09
Backing (Carrier) Thickness (Metric)0.051
Overall Length (Imperial) UOMyd
Primary Liner Thickness (Imperial)3.7
Core Size (Metric) UOMmm
Maximum Operating Temperature (Celsius)49.0
Face Side Adhesive Thickness (Imperial)2.0
Primary Liner Thickness (Imperial) UOMmil
Overall Width (Metric) UOMmm
Overall Length (Imperial)60.0
Backing (Carrier) MaterialHDPE
Overall Length (Metric)54.86
