3M Products & Supplies

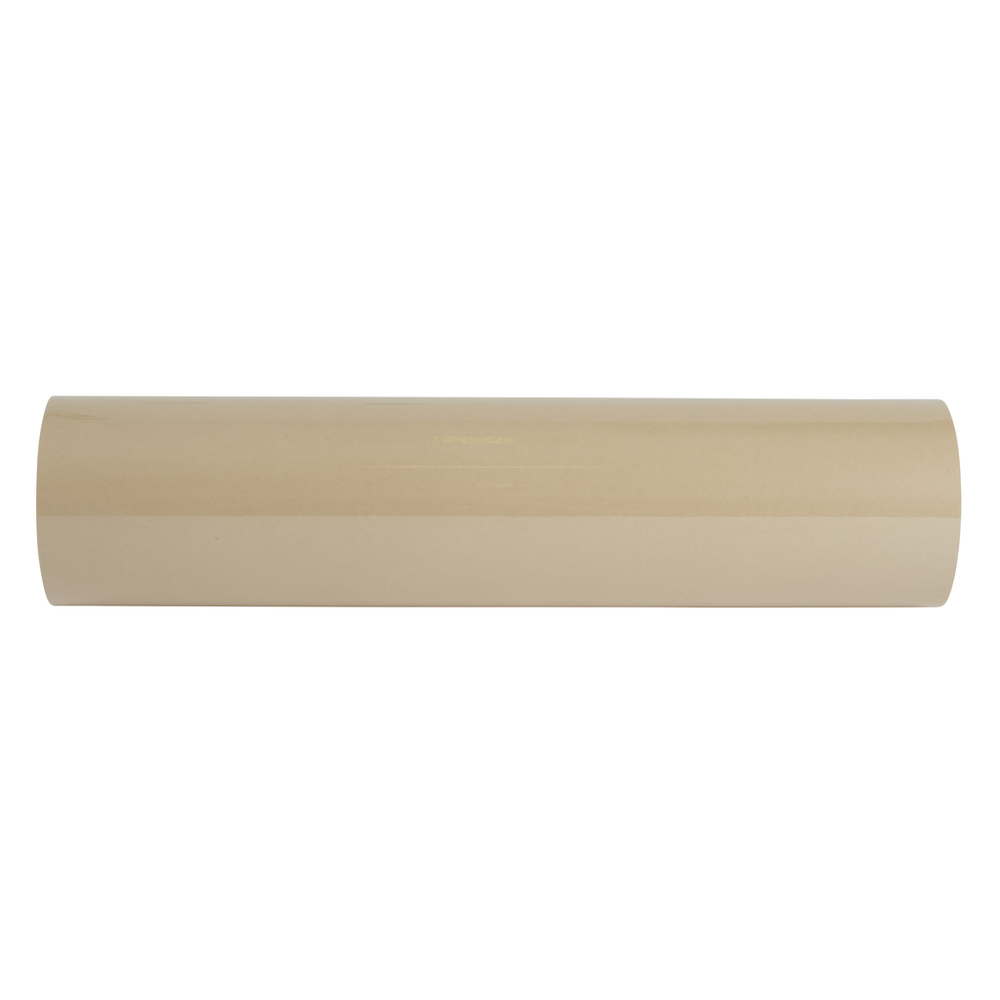

3M™ Double Coated Tape 9731, Clear, 16 in x 108 yd, 5.5 mil, 1 Roll/Case - 7010312101

SKU: 7010312101
MPN: 7010312101
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051138960728
3M ID: 70006394350
5 Digit UPC: 96072
$7,154.35 each
Hurry up! Current stock:

Product Description

3M™ Double Coated Tape 9731 was developed with a high-performance acrylic adhesive on the face side and a silicone adhesive on the liner side of a 1 mil clear PET carrier. It is excellent for demanding applications where silicone materials must be bonded to a range of substrates.

Features

  • 3M™ Adhesive 350 on the face side provides exceptional temperature and chemical resistance
  • Ideal for attaching silicone rubber elastomers and foam
  • 3 mil silicone adhesive on liner side bonds well to silicone substrates
  • Features acrylic and silicone adhesives for specialized applications such as silicone gasketing
  • Double linered – Adhesive 350 on 58# 4.2 mil PCK liner and silicone adhesive on 3 mil PET liner
Spec Sheet



Downloads

Specifications

Shelf Life547
Country of OriginUnited States
Total Tape Thickness without Liner (Imperial)5.5
Core Size (Imperial)3.0
Primary Liner58# Polycoated Kraft Paper (PCK)
Maximum Operating Temperature (Fahrenheit) UOMDegree
Carrier Thickness (Metric) UOMmm
Back Side Adhesive Thickness (Metric) UOMmm
Minimum Operating Temperature (Celsius) UOMDegree
Total Tape Thickness without Liner (Metric) UOMmm
Secondary Liner Thickness (Metric) UOMmm
Overall Thickness (Imperial) UOMmil
Back Side Adhesive Thickness (Imperial)2.9
Master Size Width (Metric) UOMcm
Core Size (Metric)76.2
Face Side Adhesive Thickness (Imperial)1.6
Overall Length (Imperial)108.0
Product ColorTransparent
Master Size Width (Metric)122.0
Master Size Length (Metric) UOMm
Carrier Thickness0.0951388888888889
Minimum Operating Temperature (Fahrenheit) UOMDegree
Shelf Life UOMMonth
Backing (Carrier) Thickness (Metric)0.025
Secondary Liner Thickness (Metric)0.07
IndustriesAerospace, Appliance, Automotive, Converter Solutions, Electronics, General Industrial, Medical, Metalworking, Military and Government, Oil & Gas, Signage, Specialty Vehicles, Transportation
Overall Width (Imperial) UOMin
Shelf Life in Months (From Date of Manufacture)12.0
Overall Width (Imperial)16.0
Maximum Operating Temperature (Celsius)121.0
Core Size (Imperial) UOMin
Back Side Adhesive TypeSilicone
Master Size Length (Metric)98.8
Maximum Operating Temperature (Fahrenheit)250.0
Face Side Adhesive Thickness (Metric)0.041
Primary Liner ColorTan
Total Tape Thickness without Liner (Imperial) UOMmil
Secondary Liner Thickness (Imperial)2.9
Overall Width (Metric) UOMmm
Minimum Operating Temperature (Celsius)-40.0
Overall Width (Metric)406.4
Primary Liner Thickness (Metric) UOMmm
Primary Liner Thickness (Imperial)4.2
Product FormRoll
Total Tape Thickness without Liner (Metric)0.14
Carrier Thickness UOMmil
Units per Case1.0
Overall Length (Metric)98.75
Minimum Operating Temperature (Fahrenheit)-40.0
Primary Liner Thickness (Metric)0.17
Secondary Liner Thickness (Imperial) UOMmil
Core Size (Metric) UOMmm
Face Side Adhesive TypeHigh Performance Acrylic Adhesive 350
Shelf Life in Months (From Date of Manufacture) UOMMonths
Backing (Carrier) Thickness (Imperial)1.0
Tape TypeDouble Coated
Backing (Carrier) MaterialPolyester Film
Overall Length (Imperial) UOMyd
Adhesive TypeAcrylic/Silicone
Backing (Carrier) Thickness (Imperial) UOMmil
Carrier MaterialPolyester Film
Carrier Thickness (Metric)0.03
Back Side Adhesive Thickness (Imperial) UOMmil
Overall Thickness (Imperial)5.5
Indoor/OutdoorBoth
Face Side Adhesive Thickness (Imperial) UOMmil
Overall Length (Metric) UOMm
Backing (Carrier) Thickness (Metric) UOMmm
Face Side Adhesive Thickness (Metric) UOMmm
Primary Liner Thickness (Imperial) UOMmil
