3M Products & Supplies

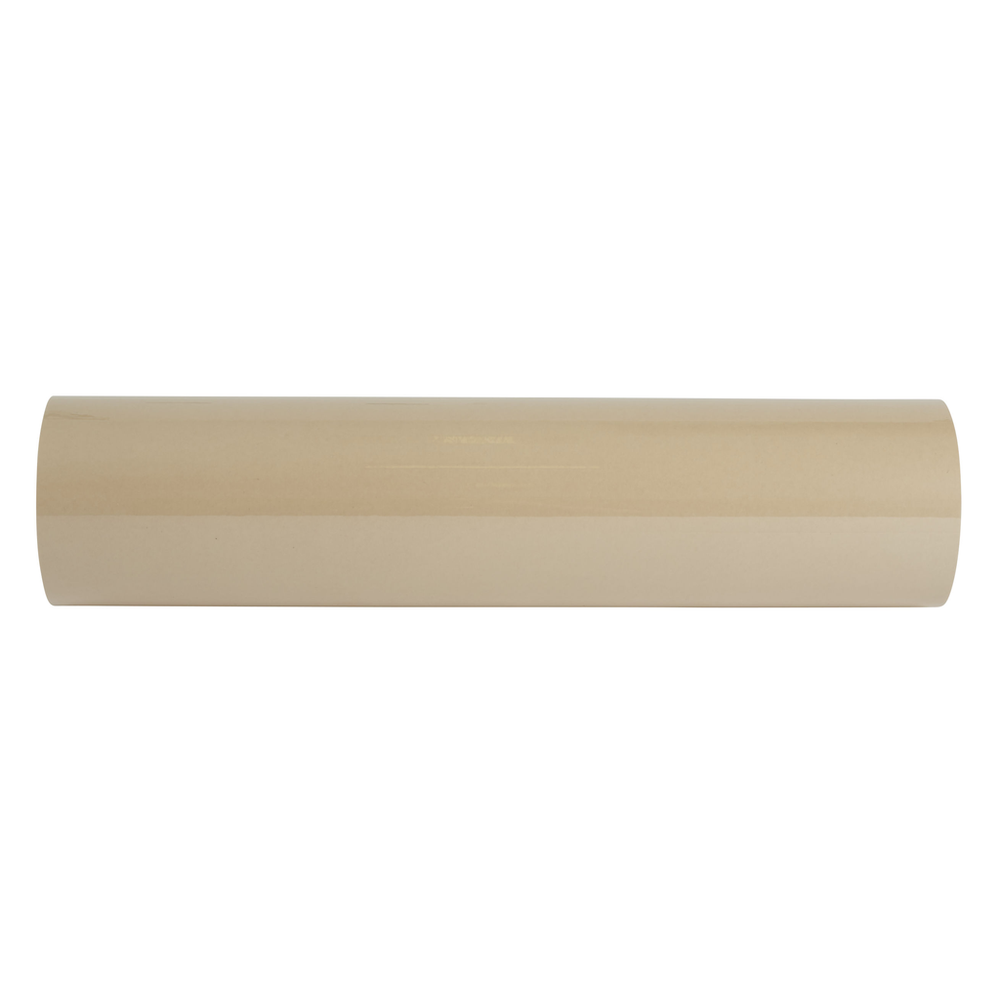

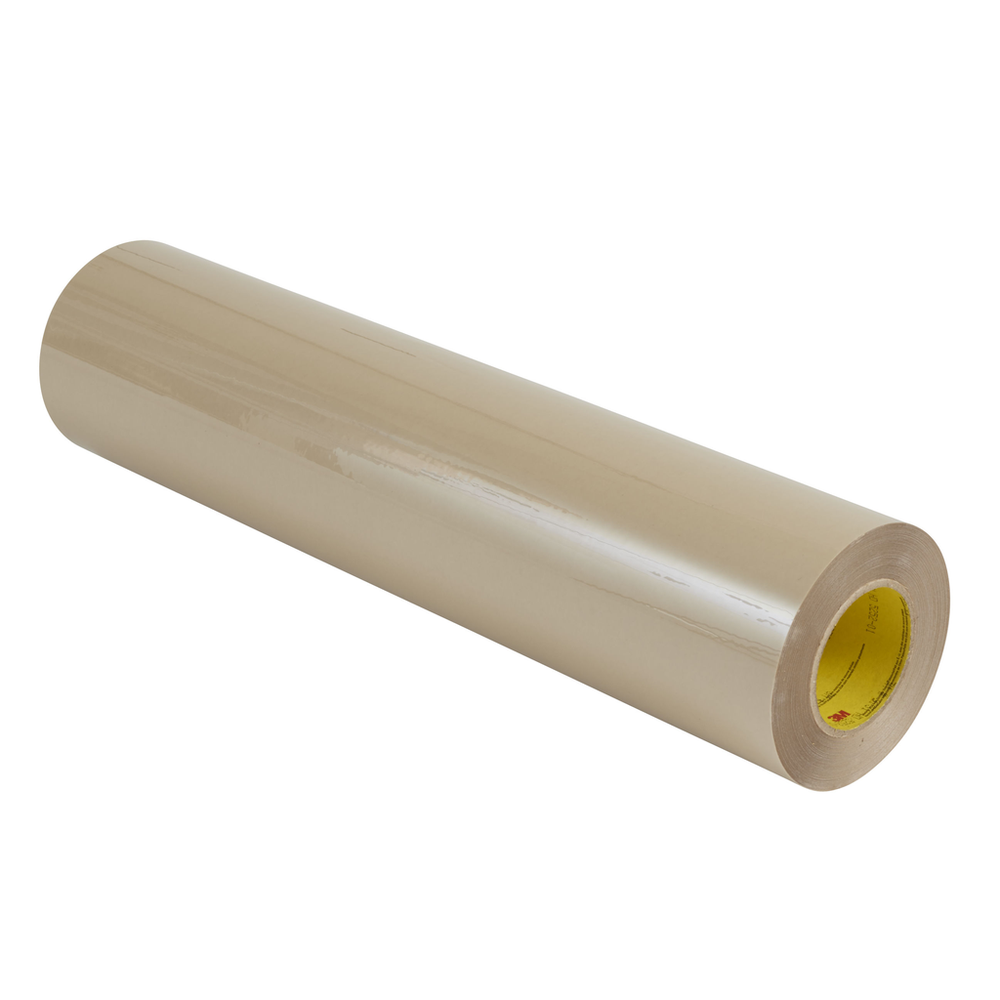

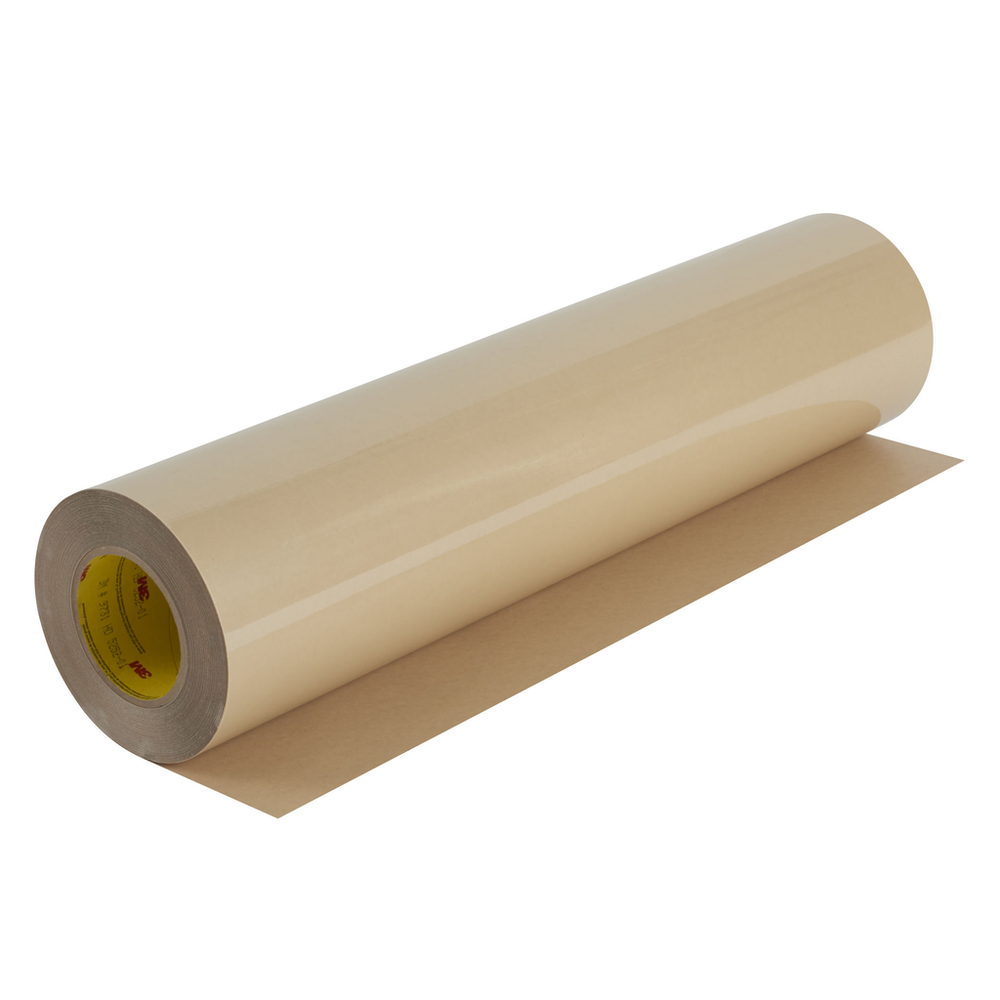

3M™ Double Coated Tape 9731, Clear, 38.5 in x 108 yd, 5.5 mil, 1 Roll/Case - 7010312670

SKU: 7010312670
MPN: 7010312670
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051138955694
3M ID: 70006389863
5 Digit UPC: 95569
$17,215.17 each
Hurry up! Current stock:

Product Description

3M™ Double Coated Tape 9731 was developed with a high-performance acrylic adhesive on the face side and a silicone adhesive on the liner side of a 1 mil clear PET carrier. It is excellent for demanding applications where silicone materials must be bonded to a range of substrates.

Features

  • Features acrylic and silicone adhesives for specialized applications such as silicone gasketing
  • 3 mil silicone adhesive on liner side bonds well to silicone substrates
  • Ideal for attaching silicone rubber elastomers and foam
  • 3M™ Adhesive 350 on the face side provides exceptional temperature and chemical resistance
  • Double linered – Adhesive 350 on 58# 4.2 mil PCK liner and silicone adhesive on 3 mil PET liner
Spec Sheet



Downloads

Specifications

Shelf Life547
Country of OriginUnited States
Carrier Thickness (Metric)0.03
Maximum Operating Temperature (Fahrenheit)250.0
Overall Length (Metric) UOMm
Carrier Thickness0.0951388888888889
Total Tape Thickness without Liner (Imperial) UOMmil
Face Side Adhesive TypeHigh Performance Acrylic Adhesive 350
Shelf Life in Months (From Date of Manufacture)12.0
Overall Length (Imperial)108.0
Product ColorTransparent
Face Side Adhesive Thickness (Metric) UOMmm
Overall Thickness (Imperial) UOMmil
Secondary Liner Thickness (Metric) UOMmm
Face Side Adhesive Thickness (Metric)0.041
Backing (Carrier) Thickness (Metric) UOMmm
Shelf Life in Months (From Date of Manufacture) UOMMonths
Face Side Adhesive Thickness (Imperial)1.6
Face Side Adhesive Thickness (Imperial) UOMmil
Shelf Life UOMMonth
Master Size Length (Metric)98.8
Secondary Liner Thickness (Imperial)2.9
Maximum Operating Temperature (Celsius)121.0
Carrier Thickness (Metric) UOMmm
Back Side Adhesive Thickness (Metric) UOMmm
Adhesive TypeAcrylic/Silicone
Master Size Length (Metric) UOMm
Back Side Adhesive TypeSilicone
Overall Length (Metric)98.75
Units per Case1.0
Product FormRoll
Minimum Operating Temperature (Fahrenheit) UOMDegree
Secondary Liner Thickness (Metric)0.07
Overall Width (Imperial)38.5
Total Tape Thickness without Liner (Metric)0.14
Secondary Liner Thickness (Imperial) UOMmil
Backing (Carrier) Thickness (Imperial) UOMmil
Maximum Operating Temperature (Fahrenheit) UOMDegree
Minimum Operating Temperature (Celsius)-40.0
Backing (Carrier) Thickness (Metric)0.025
Primary Liner ColorTan
Primary Liner Thickness (Imperial) UOMmil
Overall Width (Metric) UOMmm
Master Size Width (Metric) UOMcm
Backing (Carrier) MaterialPolyester Film
Overall Length (Imperial) UOMyd
Overall Width (Imperial) UOMin
Primary Liner Thickness (Imperial)4.2
Overall Thickness (Imperial)5.5
Indoor/OutdoorBoth
Overall Width (Metric)977.9
Assembly TypeGasket Attachment
Master Size Width (Metric)122.0
Core Size (Imperial)3.0
Back Side Adhesive Thickness (Imperial)2.9
Carrier MaterialPolyester Film
Tape TypeDouble Coated
Primary Liner Thickness (Metric)0.17
Total Tape Thickness without Liner (Imperial)5.5
Core Size (Metric) UOMmm
Core Size (Imperial) UOMin
Core Size (Metric)76.2
Total Tape Thickness without Liner (Metric) UOMmm
Back Side Adhesive Thickness (Imperial) UOMmil
Minimum Operating Temperature (Celsius) UOMDegree
Minimum Operating Temperature (Fahrenheit)-40.0
Primary Liner Thickness (Metric) UOMmm
Primary Liner58# Polycoated Kraft Paper (PCK)
Carrier Thickness UOMmil
IndustriesAerospace, Appliance, Automotive, Converter Solutions, Electronics, General Industrial, Medical, Metalworking, Military and Government, Oil & Gas, Signage, Specialty Vehicles, Transportation
Backing (Carrier) Thickness (Imperial)1.0
