3M Products & Supplies

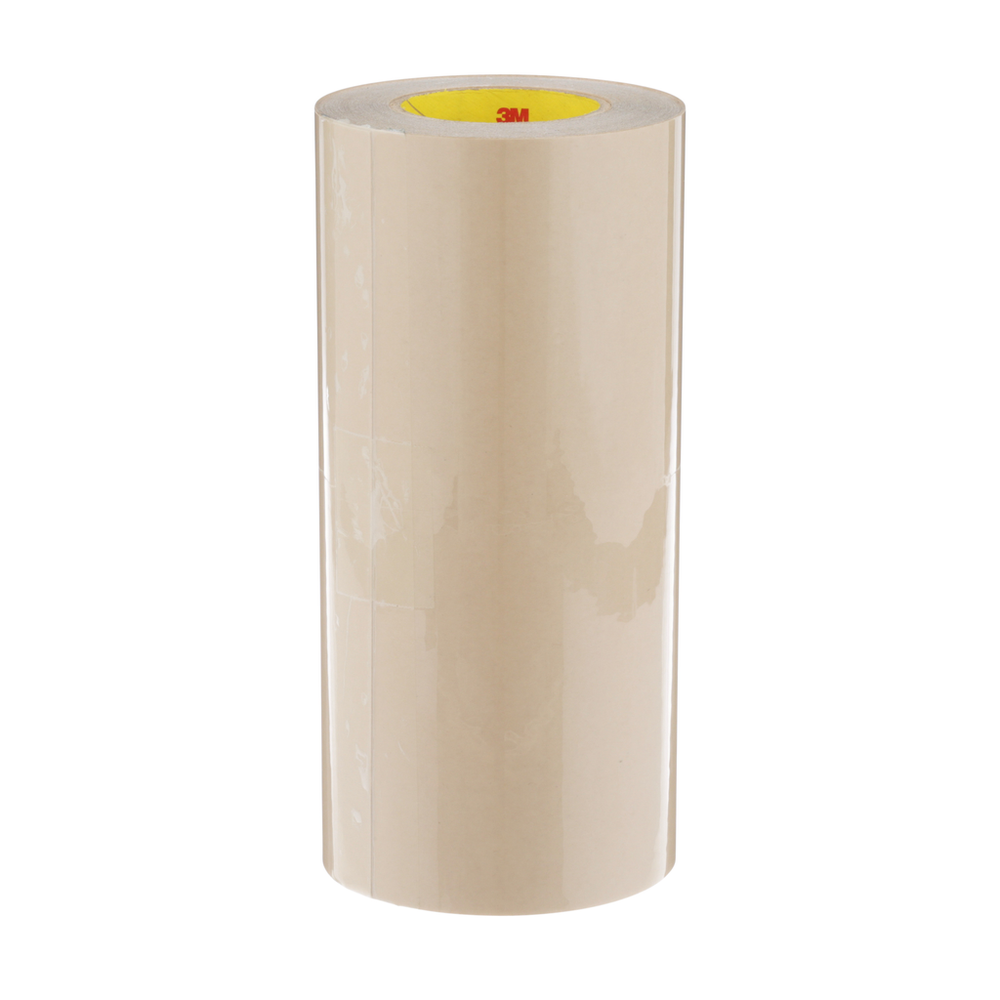

3M™ Double Coated Tape 9731, Clear, 9 in x 108 yd, 5.5 mil, 1 Roll/Case - 7010302202

Sold As: 4-Pack
SKU: 7010302202
MPN: 7010302202
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051138955915
3M ID: 70006390085
5 Digit UPC: 95591
$16,097.30 ($4024.32 / Count)
Hurry up! Current stock:

Product Description

3M™ Double Coated Tape 9731 was developed with a high-performance acrylic adhesive on the face side and a silicone adhesive on the liner side of a 1 mil clear PET carrier. It is excellent for demanding applications where silicone materials must be bonded to a range of substrates.

Features

  • Ideal for attaching silicone rubber elastomers and foam
  • 3 mil silicone adhesive on liner side bonds well to silicone substrates
  • Features acrylic and silicone adhesives for specialized applications such as silicone gasketing
  • Double linered – Adhesive 350 on 58# 4.2 mil PCK liner and silicone adhesive on 3 mil PET liner
  • 3M™ Adhesive 350 on the face side provides exceptional temperature and chemical resistance
Spec Sheet



Downloads

Specifications

Shelf Life547
Country of OriginUnited States
Total Tape Thickness without Liner (Imperial) UOMmil
Back Side Adhesive TypeSilicone
Face Side Adhesive Thickness (Imperial)1.6
Primary Liner Thickness (Metric) UOMmm
Overall Length (Imperial) UOMyd
Overall Width (Metric) UOMmm
Secondary Liner Thickness (Metric)0.07
Core Size (Metric) UOMmm
Backing (Carrier) Thickness (Imperial) UOMmil
Overall Thickness (Imperial)5.5
Overall Length (Imperial)108.0
Master Size Width (Metric) UOMcm
Overall Length (Metric)98.75
Core Size (Metric)76.2
Indoor/OutdoorBoth
Primary Liner58# Polycoated Kraft Paper (PCK)
Shelf Life UOMMonth
Master Size Length (Metric)98.8
Product ColorTransparent
Face Side Adhesive Thickness (Metric) UOMmm
Carrier MaterialPolyester Film
Overall Width (Imperial) UOMin
Back Side Adhesive Thickness (Imperial)2.9
Master Size Width (Metric)122.0
Carrier Thickness (Metric)0.03
Face Side Adhesive Thickness (Imperial) UOMmil
Primary Liner Thickness (Imperial) UOMmil
Tape TypeDouble Coated
Secondary Liner Thickness (Metric) UOMmm
Minimum Operating Temperature (Fahrenheit)-40.0
Total Tape Thickness without Liner (Imperial)5.5
Minimum Operating Temperature (Celsius) UOMDegree
Maximum Operating Temperature (Celsius)121.0
Back Side Adhesive Thickness (Imperial) UOMmil
Minimum Operating Temperature (Celsius)-40.0
Total Tape Thickness without Liner (Metric) UOMmm
Backing (Carrier) Thickness (Imperial)1.0
Shelf Life in Months (From Date of Manufacture)12.0
Overall Width (Imperial)9.0
IndustriesAerospace, Appliance, Automotive, Converter Solutions, Electronics, General Industrial, Medical, Metalworking, Military and Government, Oil & Gas, Signage, Specialty Vehicles, Transportation
Units per Case1.0
Face Side Adhesive TypeHigh Performance Acrylic Adhesive 350
Secondary Liner Thickness (Imperial)2.9
Overall Width (Metric)228.6
Secondary Liner Thickness (Imperial) UOMmil
Total Tape Thickness without Liner (Metric)0.14
Overall Length (Metric) UOMm
Maximum Operating Temperature (Fahrenheit) UOMDegree
Maximum Operating Temperature (Fahrenheit)250.0
Backing (Carrier) Thickness (Metric)0.025
Carrier Thickness (Metric) UOMmm
Core Size (Imperial) UOMin
Primary Liner ColorTan
Backing (Carrier) MaterialPolyester Film
Face Side Adhesive Thickness (Metric)0.041
Shelf Life in Months (From Date of Manufacture) UOMMonths
Carrier Thickness0.0951388888888889
Primary Liner Thickness (Metric)0.17
Core Size (Imperial)3.0
Minimum Operating Temperature (Fahrenheit) UOMDegree
Adhesive TypeAcrylic/Silicone
Primary Liner Thickness (Imperial)4.2
Product FormRoll
Assembly TypeGasket Attachment
Carrier Thickness UOMmil
Master Size Length (Metric) UOMm
Back Side Adhesive Thickness (Metric) UOMmm
Backing (Carrier) Thickness (Metric) UOMmm
Overall Thickness (Imperial) UOMmil
