3M Products & Supplies

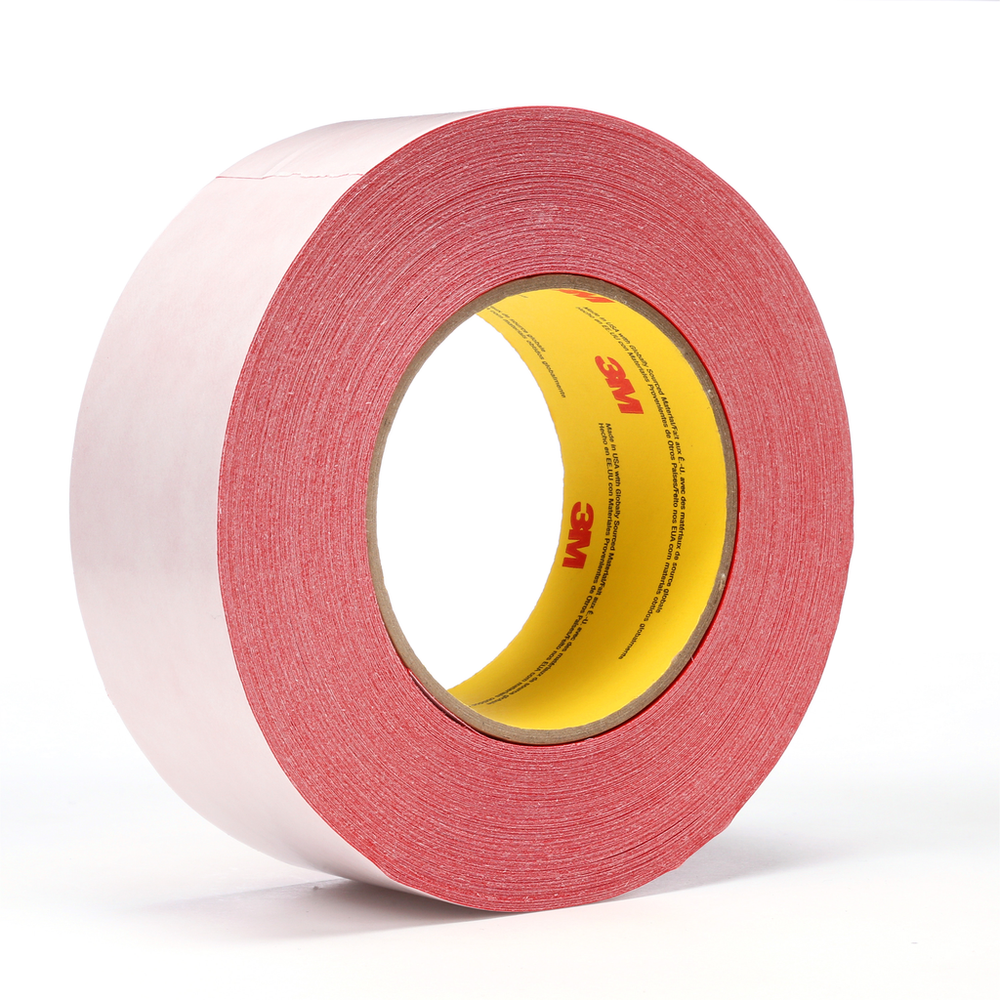

3M™ Double Coated Tape 9737R, Red, 48 mm x 55 m, 3.5 mil, 24 Roll/Case - 7000049265

Sold As: 24-Pack
SKU: 7000049265
MPN: 7000049265
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00051115314681
3M ID: 70006434933
5 Digit UPC: 31468
$527.03 ($21.96 / Count)
Hurry up! Current stock:

Product Description

3M™ Double Coated Tape 9737 Clear is a double-sided tape mounted on a thin polyester carrier with a pressure sensitive acrylic adhesive that offers a balance of high initial adhesion and good holding power. It is mounted on 55 lb. densified kraft paper liner for easy release and manipulation during application.

Features

  • Ideal performance in high speed splicing applications
  • Good moisture resistance to ensure performance in a variety of situations
  • Excellent peel, tack and shear strength to withstand rigorous splicing applications
  • Available in clear
  • High tack acrylic adhesive performs well across broad temperature range
  • Versatile adhesion bonds well to kraft and coated papers, as well plastic
Spec Sheet



Downloads

Specifications

Shelf Life365
Country of OriginUnited States
Product ColorRed
Backing (Carrier) Thickness (Imperial)0.5
Overall Width (Imperial) UOMin
Backing (Carrier) Thickness (Metric) UOMmm
Backing (Carrier) Thickness (Metric)0.0127
Carrier Thickness (Metric) UOMmm
Total Tape Thickness without Liner (Metric)0.088
Primary Liner Thickness (Metric)0.08
Total Tape Thickness without Liner (Imperial)3.5
Overall Width (Metric)48.0
Overall Length (Imperial)60.15
Overall Length (Metric) UOMm
Units per Case24.0
Backing (Carrier) Thickness (Imperial) UOMmil
Overall Width (Imperial)1.9
Carrier Thickness0.5
Product FormRoll
Number of Adhesive SidesDouble-sided
Back Side Adhesive TypeAcrylic
Overall Width (Metric) UOMmm
Shelf Life in Months (From Date of Manufacture) UOMMonths
Total Tape Thickness without Liner (Imperial) UOMmil
Product CategoryAdhesive Transfer Tapes & Double Coated Tapes
Overall Length (Metric)55.0
Shelf Life UOMMonth
Primary Liner ColorWhite
Adhesive TypeAcrylic
IndustriesFilm, Packaging, Paper, Print
Primary Liner Thickness (Metric) UOMmm
Carrier Thickness UOMmil
Carrier Thickness (Metric)0.012
Primary Liner55# Densified Kraft Paper (DK)
Maximum Operating Temperature (Fahrenheit)300.0
Tape TypeDouble Coated
Total Tape Thickness without Liner (Metric) UOMmm
Backing (Carrier) MaterialPolyester
Minimum Operating Temperature (Fahrenheit) UOMDegree
Overall Length (Imperial) UOMyd
Carrier MaterialPolyester Film
Shelf Life in Months (From Date of Manufacture)12.0
Maximum Operating Temperature (Fahrenheit) UOMDegree
Minimum Operating Temperature (Fahrenheit)-10.0
ApplicationOverlap Splice
