3M Products & Supplies

3M™ Double Coated Tape 9737R, Red, 36 mm x 55 m, 3.5 mil, 32 Roll/Case - 7000049264

Sold As: 32-Pack
SKU: 7000049264
MPN: 7000049264
For an accurate lead time please contact us
UPC: 00051115314674
3M ID: 70006434925
5 Digit UPC: 31467
$527.23 ($16.48 / Count)
Hurry up! Current stock:

Product Description

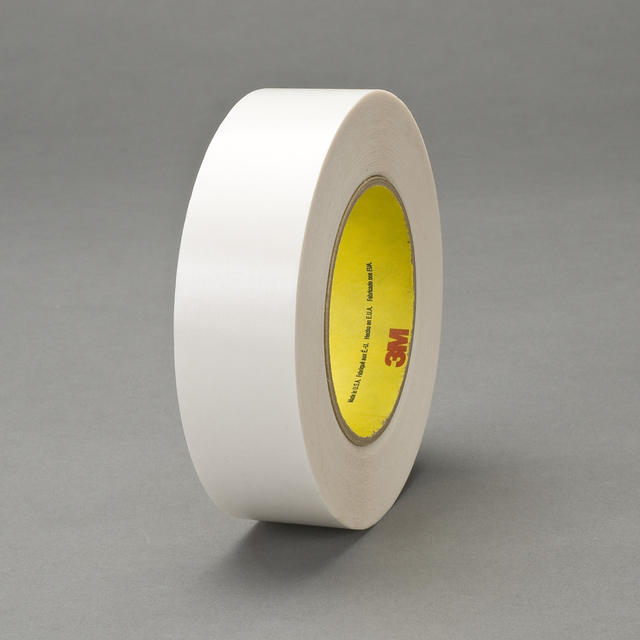

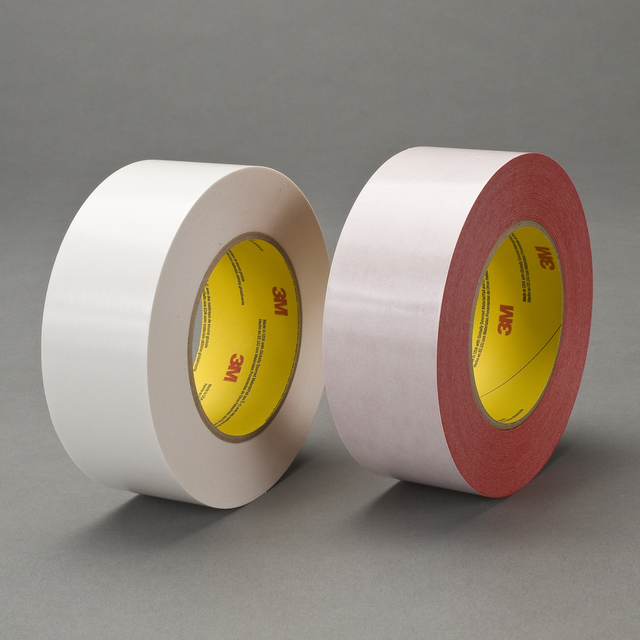

3M™ Double Coated Tape 9737 Clear is a double-sided tape mounted on a thin polyester carrier with a pressure sensitive acrylic adhesive that offers a balance of high initial adhesion and good holding power. It is mounted on 55 lb. densified kraft paper liner for easy release and manipulation during application.

Features

  • Excellent peel, tack and shear strength to withstand rigorous splicing applications
  • Versatile adhesion bonds well to kraft and coated papers, as well plastic
  • Good moisture resistance to ensure performance in a variety of situations
  • Available in clear
  • Ideal performance in high speed splicing applications
  • High tack acrylic adhesive performs well across broad temperature range
Spec Sheet



Downloads

Specifications

Shelf Life365
Country of OriginUnited States
Overall Width (Imperial) UOMin
Back Side Adhesive TypeAcrylic
Minimum Operating Temperature (Fahrenheit)-10.0
Carrier Thickness (Metric) UOMmm
Backing (Carrier) Thickness (Metric)0.0127
Primary Liner55# Densified Kraft Paper (DK)
Tape TypeDouble Coated
Backing (Carrier) Thickness (Imperial)0.5
Total Tape Thickness without Liner (Metric) UOMmm
Overall Length (Metric)55.0
Backing (Carrier) Thickness (Imperial) UOMmil
Overall Width (Metric)36.0
ApplicationOverlap Splice
Maximum Operating Temperature (Fahrenheit) UOMDegree
Overall Length (Imperial) UOMyd
Carrier Thickness (Metric)0.012
Product FormRoll
Primary Liner Thickness (Metric) UOMmm
Shelf Life in Months (From Date of Manufacture) UOMMonths
Total Tape Thickness without Liner (Imperial) UOMmil
Backing (Carrier) Thickness (Metric) UOMmm
Shelf Life in Months (From Date of Manufacture)12.0
Total Tape Thickness without Liner (Imperial)3.5
Carrier MaterialPolyester Film
Total Tape Thickness without Liner (Metric)0.088
Backing (Carrier) MaterialPolyester
Overall Width (Metric) UOMmm
Carrier Thickness0.5
Overall Length (Imperial)60.15
Primary Liner ColorWhite
Units per Case32.0
Adhesive TypeAcrylic
Carrier Thickness UOMmil
Overall Length (Metric) UOMm
Product CategoryAdhesive Transfer Tapes & Double Coated Tapes
Number of Adhesive SidesDouble-sided
Product ColorRed
IndustriesFilm, Packaging, Paper, Print
Minimum Operating Temperature (Fahrenheit) UOMDegree
Shelf Life UOMMonth
Overall Width (Imperial)1.42
Primary Liner Thickness (Metric)0.08
Maximum Operating Temperature (Fahrenheit)300.0
