3M Products & Supplies

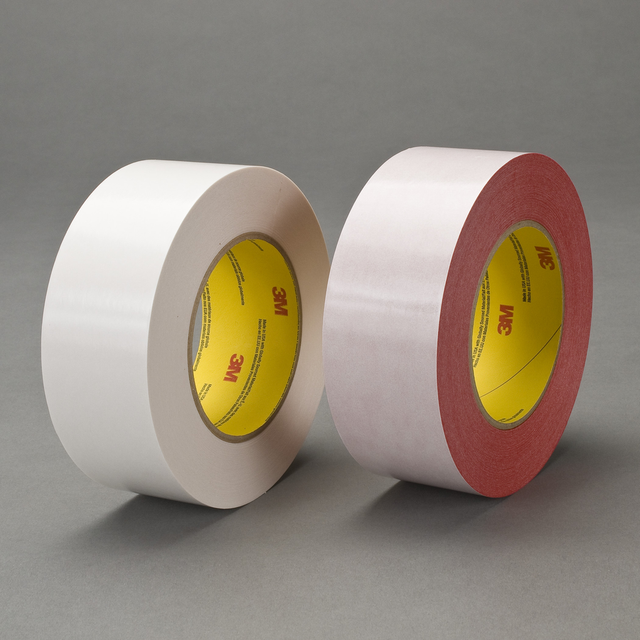

3M™ Double Coated Tape 9738R, Red, 36 mm x 55 m, 4.3 mil, 32 Roll/Case - 7000049278

Sold As: 32-Pack
SKU: 7000049278
MPN: 7000049278
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00051115316593
3M ID: 70006436243
5 Digit UPC: 31659
$526.45 ($16.45 / Count)
Hurry up! Current stock:

Product Description

3M™ Double Coated Tape 9738 Clear is a double-sided tape mounted on a non-woven tissue carrier with a pressure sensitive acrylic adhesive that offers a balance of high initial adhesion and good holding power. It is mounted on a 55 lb. densified kraft paper liner for easy release and manipulation during application.

Features

  • Good moisture resistance to ensure performance in a variety of situations
  • High tack acrylic adhesive performs well across broad temperature range
  • Ideal performance in high speed splicing applications
  • Excellent peel, tack and shear strength to withstand rigorous splicing applications
  • Versatile adhesion bonds well to kraft and coated papers, as well plastic
  • Avaiable in clear
Spec Sheet



Downloads

Specifications

Shelf Life365
Country of OriginUnited States
Shelf Life in Months (From Date of Manufacture) UOMMonths
Carrier Thickness1.3
ApplicationOverlap Splice
IndustriesFilm, Packaging, Paper, Print
Overall Width (Imperial) UOMin
Product CategoryAdhesive Transfer Tapes & Double Coated Tapes
Carrier MaterialTissue
Backing (Carrier) Thickness (Metric)0.033
Backing (Carrier) Thickness (Imperial)1.3
Total Tape Thickness without Liner (Metric)0.109
Maximum Operating Temperature (Fahrenheit) UOMDegree
Total Tape Thickness without Liner (Imperial)4.3
Primary Liner ColorWhite
Primary Liner Thickness (Metric) UOMmm
Primary Liner55# Densified Kraft Paper (DK)
Overall Width (Metric)36.0
Minimum Operating Temperature (Fahrenheit) UOMDegree
Product ColorRed
Number of Adhesive SidesDouble-sided
Overall Length (Imperial) UOMyd
Overall Length (Metric) UOMm
Backing (Carrier) Thickness (Imperial) UOMmil
Minimum Operating Temperature (Fahrenheit)-10.0
Shelf Life in Months (From Date of Manufacture)12.0
Units per Case32.0
Overall Length (Metric)55.0
Maximum Operating Temperature (Fahrenheit)300.0
Carrier Thickness UOMmil
Total Tape Thickness without Liner (Metric) UOMmm
Backing (Carrier) MaterialNon-woven Tissue
Overall Width (Imperial)1.42
Backing (Carrier) Thickness (Metric) UOMmm
Overall Length (Imperial)60.15
Product FormRoll
Adhesive TypeAcrylic
Tape TypeDouble Coated
Carrier Thickness (Metric)0.033
Back Side Adhesive TypeAcrylic
Carrier Thickness (Metric) UOMmm
Shelf Life UOMMonth
Total Tape Thickness without Liner (Imperial) UOMmil
Primary Liner Thickness (Metric)0.08
Overall Width (Metric) UOMmm
