3M Products & Supplies

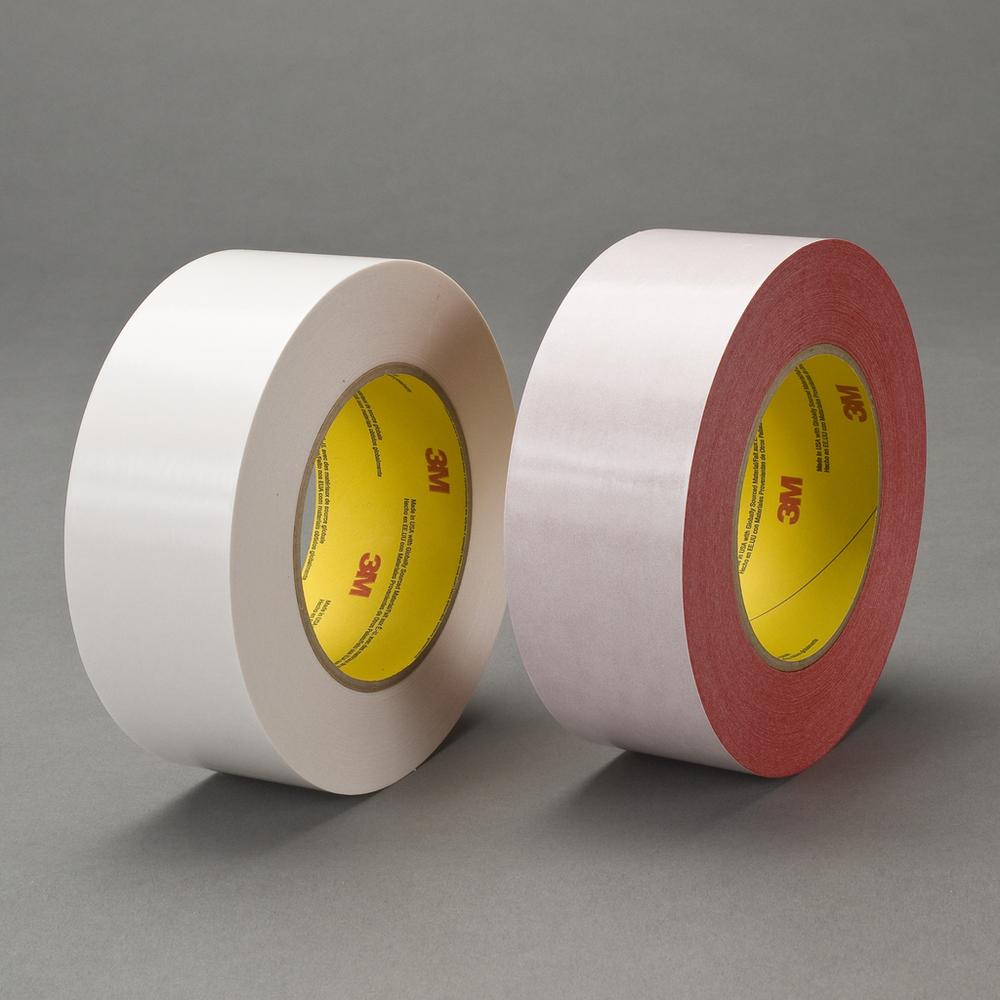

3M™ Double Coated Tape 9738R, Red, 48 mm x 55 m, 4.3 mil, 24 Roll/Case - 7000029050

Sold As: 24-Pack
SKU: 7000029050
MPN: 7000029050
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00051115316609
3M ID: 70006436250
5 Digit UPC: 31660
$526.44 ($21.94 / Count)
Hurry up! Current stock:

Product Description

3M™ Double Coated Tape 9738 Clear is a double-sided tape mounted on a non-woven tissue carrier with a pressure sensitive acrylic adhesive that offers a balance of high initial adhesion and good holding power. It is mounted on a 55 lb. densified kraft paper liner for easy release and manipulation during application.

Features

  • Excellent peel, tack and shear strength to withstand rigorous splicing applications
  • Ideal performance in high speed splicing applications
  • Versatile adhesion bonds well to kraft and coated papers, as well plastic
  • High tack acrylic adhesive performs well across broad temperature range
  • Good moisture resistance to ensure performance in a variety of situations
  • Avaiable in clear
Spec Sheet



Downloads

Specifications

Shelf Life365
Country of OriginUnited States
Primary Liner55# Densified Kraft Paper (DK)
Product ColorRed
Overall Length (Imperial) UOMyd
Carrier Thickness1.3
Overall Length (Metric) UOMm
Overall Length (Metric)55.0
ApplicationOverlap Splice
Total Tape Thickness without Liner (Metric) UOMmm
Backing (Carrier) Thickness (Imperial) UOMmil
Maximum Operating Temperature (Fahrenheit)300.0
Minimum Operating Temperature (Fahrenheit)-10.0
Product FormRoll
Shelf Life UOMMonth
Total Tape Thickness without Liner (Imperial)4.3
Backing (Carrier) Thickness (Imperial)1.3
Carrier MaterialTissue
Overall Width (Imperial)1.87
Shelf Life in Months (From Date of Manufacture) UOMMonths
Total Tape Thickness without Liner (Metric)0.109
Primary Liner Thickness (Metric) UOMmm
Maximum Operating Temperature (Fahrenheit) UOMDegree
Carrier Thickness (Metric) UOMmm
Number of Adhesive SidesDouble-sided
Backing (Carrier) Thickness (Metric)0.033
Backing (Carrier) MaterialNon-woven Tissue
Carrier Thickness (Metric)0.033
Units per Case24.0
Overall Width (Imperial) UOMin
Overall Width (Metric) UOMmm
Tape TypeDouble Coated
Shelf Life in Months (From Date of Manufacture)12.0
Overall Width (Metric)48.0
Primary Liner ColorWhite
Adhesive TypeAcrylic
Backing (Carrier) Thickness (Metric) UOMmm
Primary Liner Thickness (Metric)0.08
Back Side Adhesive TypeAcrylic
Minimum Operating Temperature (Fahrenheit) UOMDegree
Carrier Thickness UOMmil
Total Tape Thickness without Liner (Imperial) UOMmil
Overall Length (Imperial)60.15
Product CategoryAdhesive Transfer Tapes & Double Coated Tapes
IndustriesFilm, Packaging, Paper, Print
