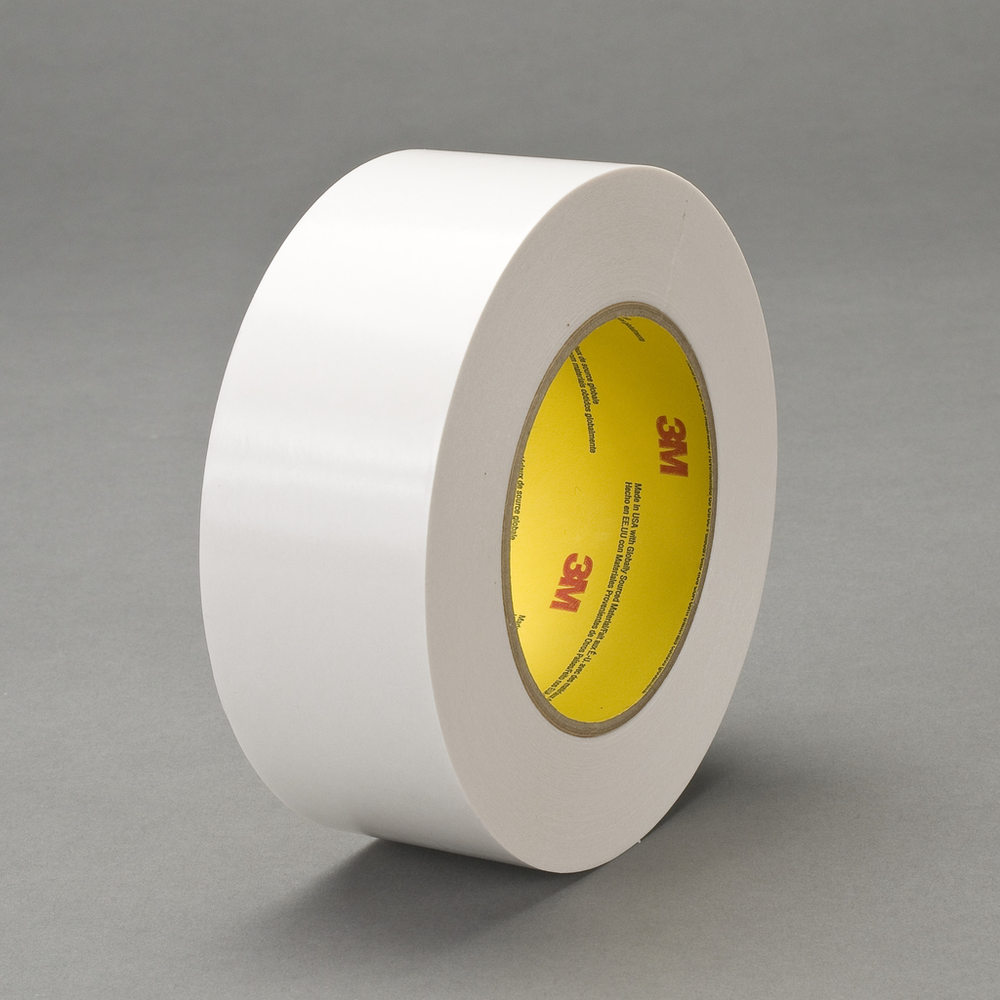

3M Double Coated Tape 9738, Clear, 24 mm x 55 m, 4.3 mil, 48 Roll/Case

Sold As: 480-Pack
SKU: 7000049276
MPN: 7000049276
Made to Order: Lead time from 3M is approximately 20 working days.
UPC: 00051115316555
3M ID: 70006436201
5 Digit UPC: 31655
Shelf Life: 365 Days
Country of Origin: USA
Manufacturer: 3M
Size: 0.95 in
Color: Transparent
$4,796.24 ($9.99 / Count)
Hurry up! Current stock:
3M Double Coated Tape 9738 Red is a double-sided tape mounted on a non-woven tissue carrier with a pressure sensitive acrylic adhesive that offers a balance of high initial adhesion and good holding power. It is mounted on a 55 lb. densified kraft paper liner for easy release and manipulation during application.

High Performance Adhesion
Our 3M™ Double Coated Tape 9738 Red is a 4.3 mil double-sided tape mounted on a 55 lb. densified kraft paper liner. In addition, it has a non-woven tissue carrier with a pressure sensitive acrylic adhesive that offers a balance of high initial adhesion and good holding power. It offers excellent temperature performance in various applications. When it comes to longevity, this tape will perform well up to 300°F/149°C in the short term, and up to 260°F/127°C for days or weeks. Results may vary depending on machine and web tensions, line speeds, nature of paper surface and application pressure. It adheres well to kraft and coated papers, and is commonly used for high performance splicing on paper, films and other continuous web processes.

Recommended Applications

  • High-speed flying splices
  • Zero speed splices
  • Core starting
  • Splicing films, foils and corrugated paper

What is Double Coated Tape?
In general, double coated tape is composed of a paper, film, or tissue carrier that is coated on both sides with pressure sensitive adhesive. The adhesive is protected by a peel-away liner that can be removed at the time of application or left in place until the joining surfaces are ready to be attached. These tapes can be applied by hand or with a dispenser. Double coated tape dispensers are available in a variety of configurations ranging from manual to fully automatic. Applications for double coated tape are found in web processing, construction, fabrication, arts and hobby.

Extra Details

  • Available in red
  • Excellent peel, tack and shear strength to withstand rigorous splicing applications
  • Good moisture resistance to ensure performance in a variety of situations
  • High tack acrylic adhesive performs well across broad temperature range
  • Ideal performance in high speed splicing applications
  • Versatile adhesion bonds well to kraft and coated papers, as well plastic

Data Sheet

  1. Tech Data Sheet
