3M Products & Supplies

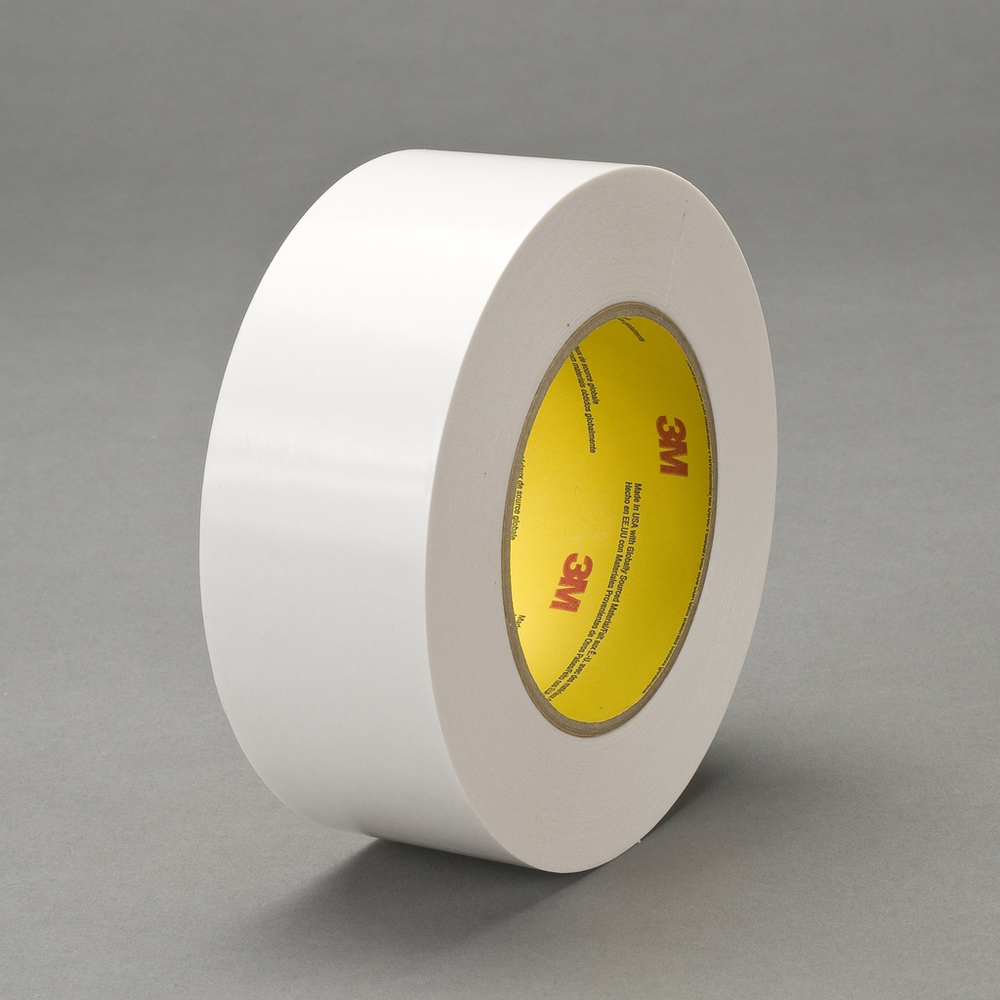

3M™ Double Coated Tape 9738, Clear, 19 mm x 55 m, 4.3 mil, 64 Roll/Case - 7010335043

Sold As: 640-Pack
SKU: 7010335043
MPN: 7010335043
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051115320200
3M ID: 70006449394
5 Digit UPC: 32020
$5,560.00 ($8.69 / Count)
Hurry up! Current stock:

Product Description

3M™ Double Coated Tape 9738 Red is a double-sided tape mounted on a non-woven tissue carrier with a pressure sensitive acrylic adhesive that offers a balance of high initial adhesion and good holding power. It is mounted on a 55 lb. densified kraft paper liner for easy release and manipulation during application.

Features

  • Versatile adhesion bonds well to kraft and coated papers, as well plastic
  • Good moisture resistance to ensure performance in a variety of situations
  • High tack acrylic adhesive performs well across broad temperature range
  • Available in red
  • Ideal performance in high speed splicing applications
  • Excellent peel, tack and shear strength to withstand rigorous splicing applications
Spec Sheet



Downloads

Specifications

Shelf Life365
Country of OriginUnited States
Backing (Carrier) Thickness (Metric) UOMmm
Total Tape Thickness without Liner (Imperial) UOMmil
Overall Width (Imperial)0.74
Units per Case64.0
Carrier Thickness0.5
Carrier Thickness UOMmil
Overall Length (Imperial) UOMyd
Tape TypeDouble Coated
IndustriesAppliance, Automotive, Electronics, General Industrial, Medical, Specialty Vehicles, Transportation
Product FormRoll
ApplicationZero-Speed and General Splicing
Total Tape Thickness without Liner (Metric)0.11
Carrier MaterialTissue
Face Side Adhesive TypeAcrylic
Overall Length (Metric)55.0
Overall Width (Imperial) UOMin
Overall Length (Metric) UOMm
Product ColorTransparent
Carrier Thickness (Metric)0.013
Backing (Carrier) Thickness (Imperial) UOMmil
Primary Liner ColorWhite
Maximum Operating Temperature (Fahrenheit)300.0
Number of Adhesive SidesDouble-sided
Primary Liner55# Densified Kraft Paper (DK)
Maximum Operating Temperature (Fahrenheit) UOMDegree
Backing (Carrier) Thickness (Imperial)1.3
Overall Width (Metric)19.0
Backing (Carrier) Thickness (Metric)0.033
Carrier Thickness (Metric) UOMmm
Backing (Carrier) MaterialTissue
Total Tape Thickness without Liner (Metric) UOMmm
Overall Length (Imperial)60.15
Total Tape Thickness without Liner (Imperial)4.3
Overall Width (Metric) UOMmm
