3M Products & Supplies

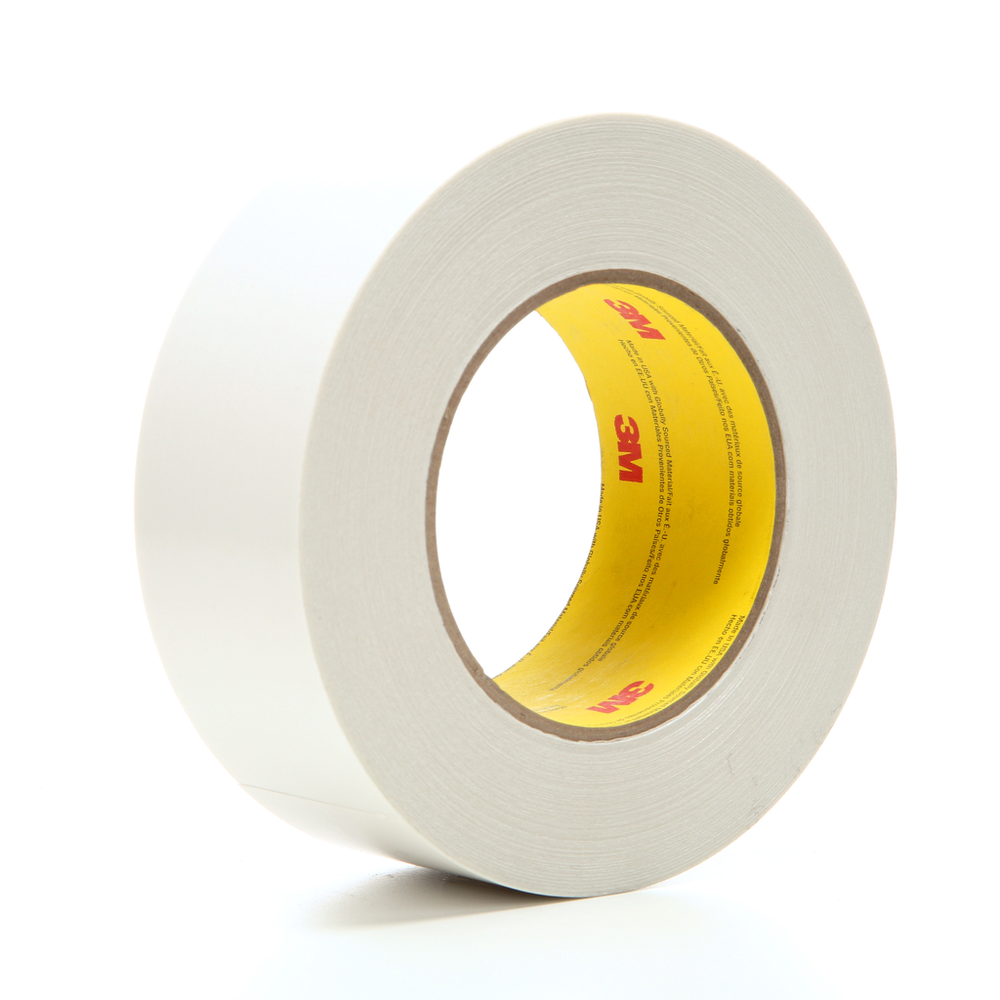

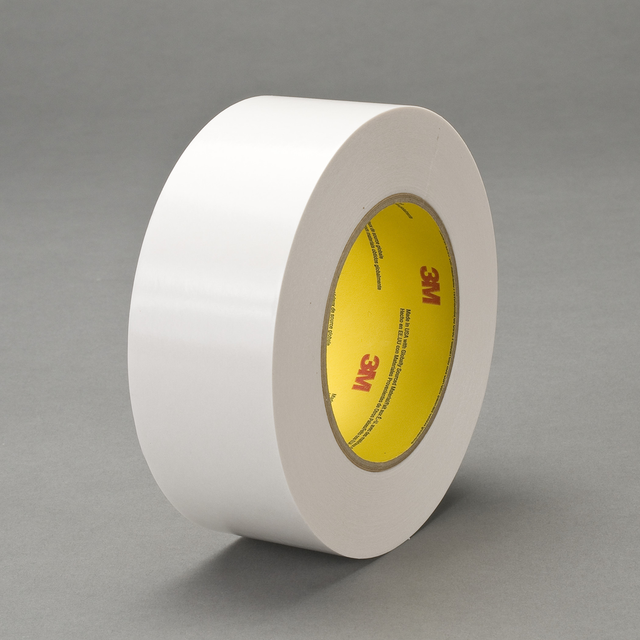

3M™ Double Coated Tape 9738, Clear, 48 mm x 55 m, 4.3 mil, 24 Roll/Case - 7000029049

Sold As: 24-Pack
SKU: 7000029049
MPN: 7000029049
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00051115316579
3M ID: 70006436227
5 Digit UPC: 31657
$526.44 ($21.94 / Count)
Hurry up! Current stock:

Product Description

3M™ Double Coated Tape 9738 Red is a double-sided tape mounted on a non-woven tissue carrier with a pressure sensitive acrylic adhesive that offers a balance of high initial adhesion and good holding power. It is mounted on a 55 lb. densified kraft paper liner for easy release and manipulation during application.

Features

  • Excellent peel, tack and shear strength to withstand rigorous splicing applications
  • Good moisture resistance to ensure performance in a variety of situations
  • Available in red
  • Versatile adhesion bonds well to kraft and coated papers, as well plastic
  • Ideal performance in high speed splicing applications
  • High tack acrylic adhesive performs well across broad temperature range
Spec Sheet



Downloads

Specifications

Shelf Life365
Country of OriginUnited States
Product FormRoll
Overall Length (Imperial)60.15
Backing (Carrier) Thickness (Imperial)1.3
Carrier Thickness UOMmil
Total Tape Thickness without Liner (Imperial)4.3
Total Tape Thickness without Liner (Imperial) UOMmil
Face Side Adhesive TypeAcrylic
Primary Liner55# Densified Kraft Paper (DK)
Overall Width (Imperial) UOMin
Total Tape Thickness without Liner (Metric) UOMmm
Carrier Thickness0.5
Carrier Thickness (Metric) UOMmm
Tape TypeDouble Coated
Backing (Carrier) Thickness (Imperial) UOMmil
Backing (Carrier) Thickness (Metric) UOMmm
ApplicationZero-Speed and General Splicing
Overall Width (Imperial)1.9
Overall Length (Metric) UOMm
Maximum Operating Temperature (Fahrenheit)300.0
Backing (Carrier) Thickness (Metric)0.033
Maximum Operating Temperature (Fahrenheit) UOMDegree
Overall Length (Imperial) UOMyd
Primary Liner ColorWhite
Number of Adhesive SidesDouble-sided
IndustriesAppliance, Automotive, Electronics, General Industrial, Medical, Specialty Vehicles, Transportation
Overall Width (Metric)48.0
Total Tape Thickness without Liner (Metric)0.11
Overall Width (Metric) UOMmm
Adhesive TypeAcrylic
Carrier MaterialTissue
Overall Length (Metric)55.0
Carrier Thickness (Metric)0.013
Units per Case24.0
Product ColorTransparent
Backing (Carrier) MaterialTissue
